MAINTENANCE
Lights
NOTE: Do not touch a halogen bulb with bare fingers. Oil from skin
leaves a residue, causing a hot spot that will shorten the life
of the lamp. If fingers do touch the bulb, clean it with an
alcohol-moistened towel.
Removing Halogen Bulbs
1. Remove the plenum covering
from t he headlight assembly.
2. Lift the rubber boot to expose
the bulb.

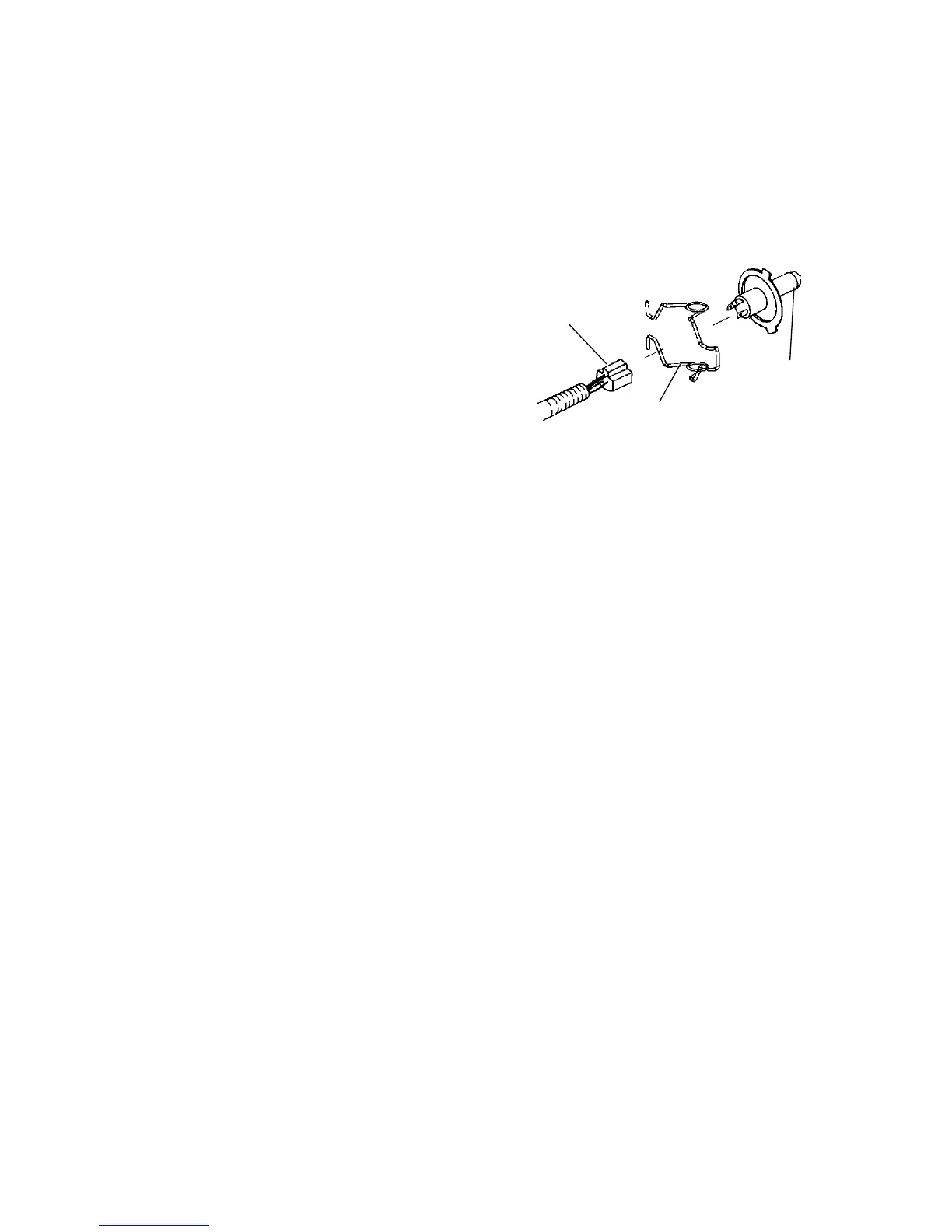

3. Push down on the spring (1)
to release it from the housing.
4. With the wire harness (2) attached
to the bulb (3), withdraw the bulb from the housing.
5. Grasp the bulb by its metal base and carefully separate the bulb
from the harness.
Installing Halog en Bulb s
1. Hold the bulb by its metal base and install it into the wire harness.
2. Insert the bulb into the housing.
3. Connect the s pring to the housing.
4. Carefully flip the spring back into the housing, placing it around
the wire harness.
5. Reinstall the plenum covering on the headlight assembly.
6. Verify headlight aim.
Replacin g Taillight Bulbs
1. Remove the screws securing the
taillight lens.
2. P ush the bulb in and twist
counterclockwise and replace the bulb.
3. Replace the taillight lens.
