MFD Battery Replacement
If the clock function of the MFD isn’t
working properly, replace the battery.
Replacement batteries are available
from your dealer.
1. Remove the plenum from the
underside of t he hood.

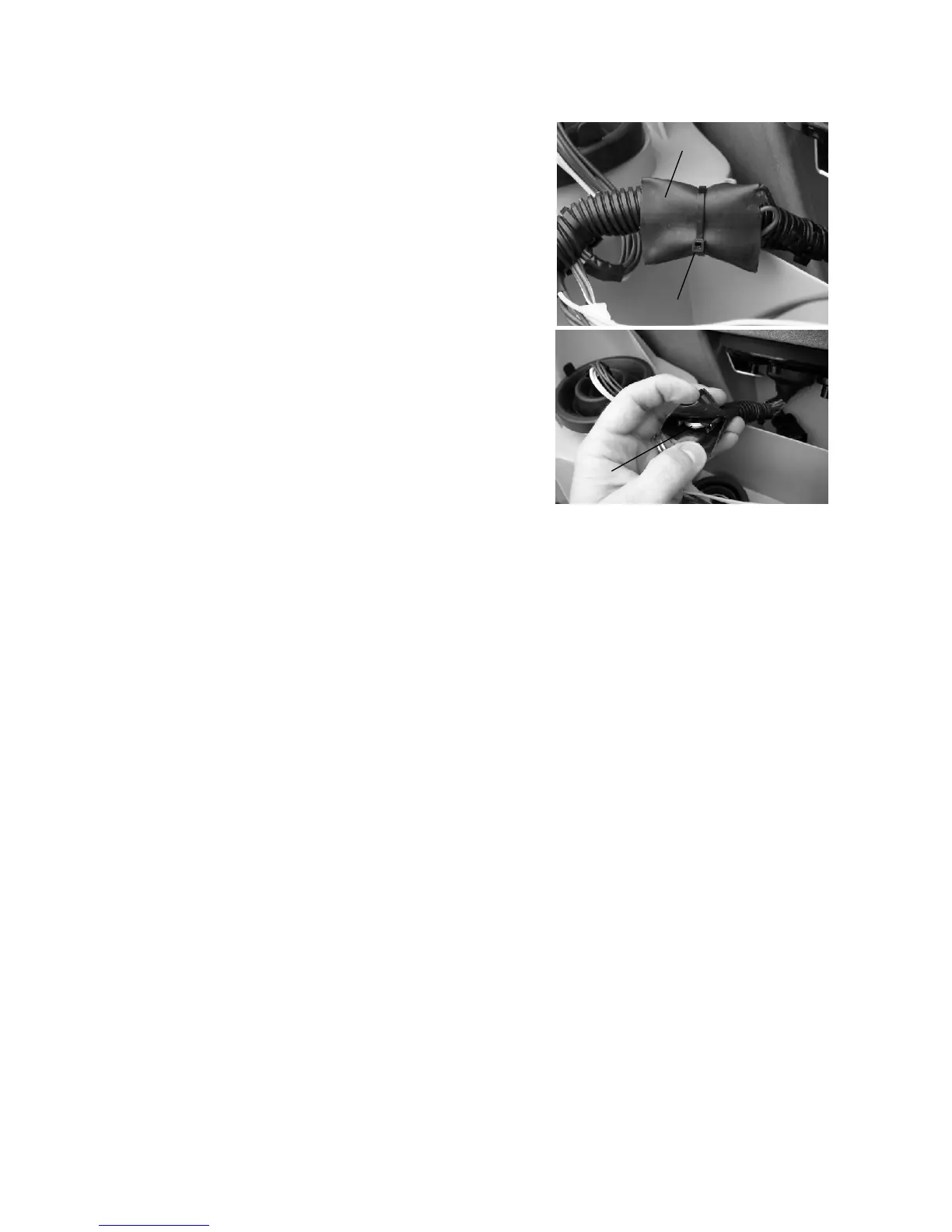

2. Locate the black battery
compartment (A). It has a red
wire and a brown wire with a
white stripe. It’s locat ed about
three inches down the main
harness from t he point where the
harness connects to the MFD.
3. Cut the plastic cable tie (B) from
the outside of the compartment.
4. Carefully cut the bottom of the
compartment (opposite the wires)
to separate the heat-sealed seams.
Squeeze the corners of the compartment inward so the battery (C)
is visible.
NOTE: Note the orientation of the battery before removing it. An
incorrectly installed battery will not maintain the clock.
5. Using needle-nose pliers, grasp the battery and rotate i t slightly so
the leading edge of the battery is raised slightly away from the
battery holder. Pull the battery out gently.
NOTE: The battery will not come out of the holder unless the leading
edge of the battery is raised. Hold the battery compartment,
not the wires, while removing the battery. Pulling on the
wires will separate them from the battery holder .
A
B
C
