A
B
1
.010″-.030″
(.25-.75mm)
103
MAINTENANCE
Clutch System
n

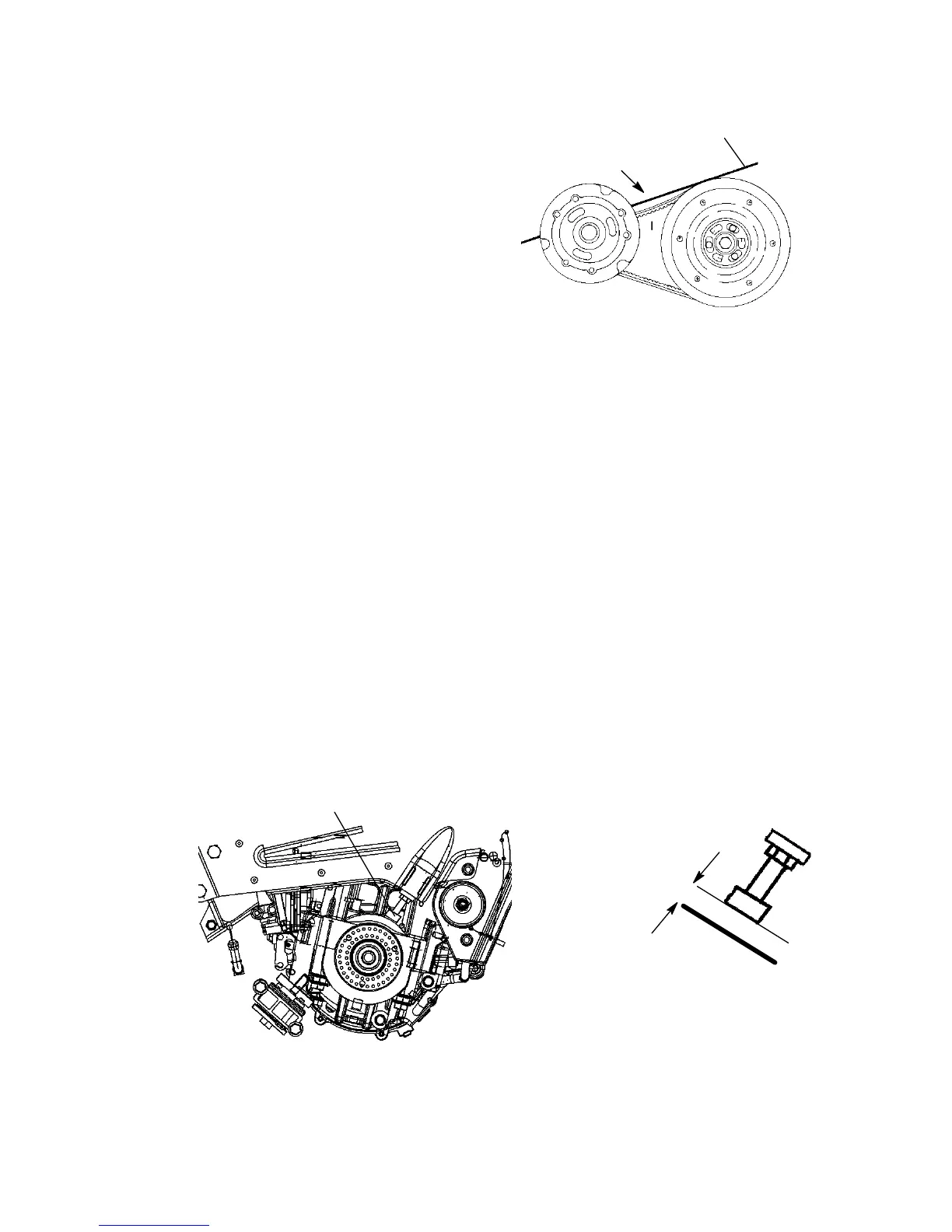

Drive Belt Deflection
Measure belt deflection with both
clutches at rest and in their full
neutral position.
Place a straight edge on the belt (A)
and apply downward pressure while
measuring at point B. This
measurement should be 1 1/4” (3.2 cm).
Drive Belt Adjustment
TEAM Clutch
1. Loosen the 7/16” jam nut on the belt width adjuster.
2. Using a 1/8” Allen wrench, adjust the threaded set screw as
needed.
NOTE: Turn the set screw in (clockwise) to increase the distance
between the sheaves and out (counterclockwise) to decrease
the distance.
3. Tighten the jam nut.
Torque Stop
Periodically check torque stop (1) clearance. With clutches in proper
alignment, the clearance should be a minimum of .010″ to a maximum
of . 030″ from the engine case (2). Adjust if necessary. Lock the jam
nut.
