5.14
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

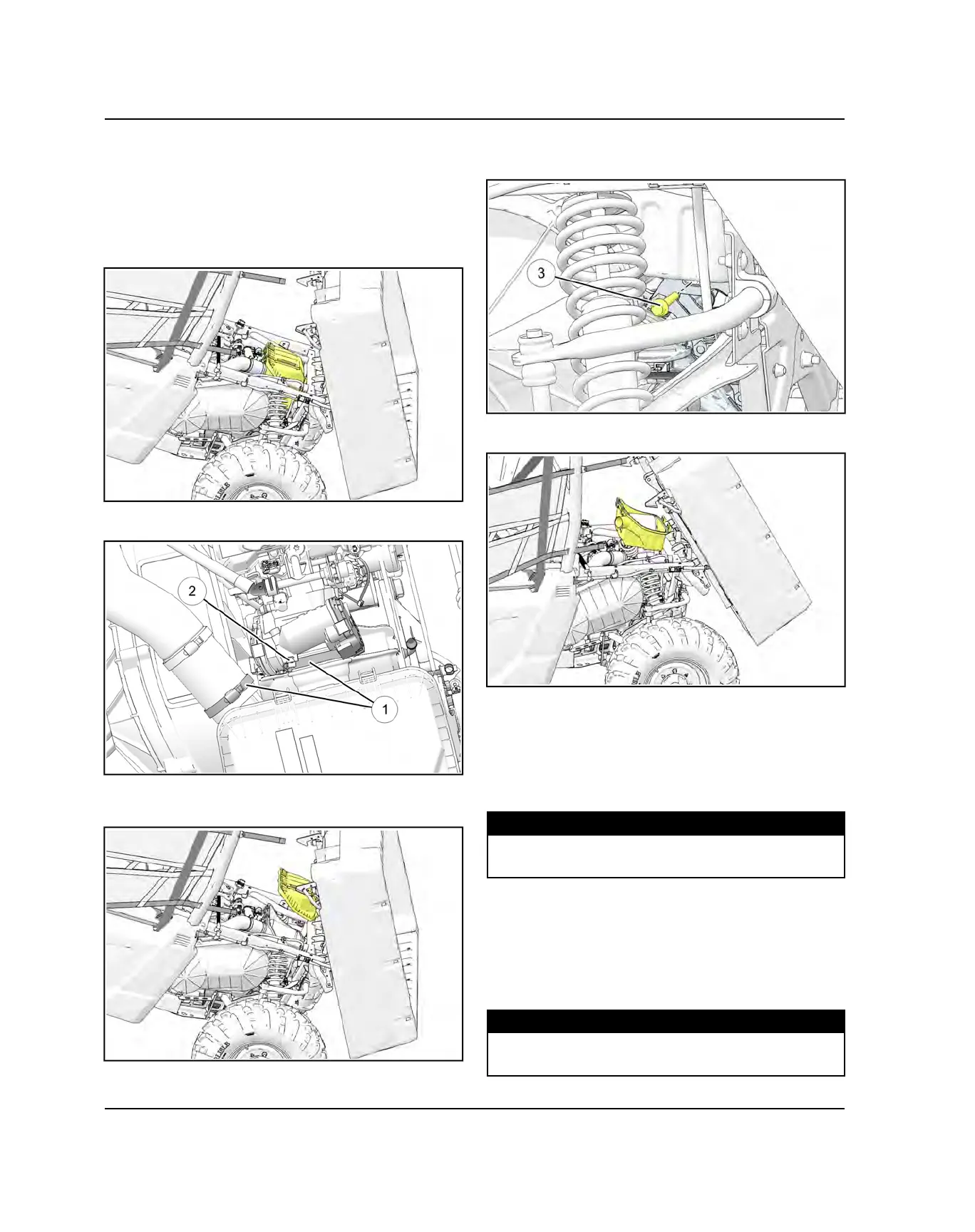

AIR BOX REMOVAL / INSTALLATION
The air box assembly can be removed from the vehicle
through the maintenance access panel located in the
rear storage box.
Air Box Removal Procedure
1. Lift the rear cargo box to access the airbox.
2. Loosen the gear clamps
q
and the spring clamp
w
.
3. Unlatch the air box cover. Remove the cover from the
air box.
4. Remove the screw
e
and nut securing the bottom of
the air box assembly to the transmission bracket.
5. Remove the air box assembly.
Air Box Installation Procedure
1. Install the air box bottom assembly back into the
engine compartment.
2. Reinstall the screw and nut securing the air box to the
transmission mount. Torque nut to specification.
TORQUE
Air Box Fastener:
18 ft-lbs (24 Nm)
3. Reinstall the air box cover. Verify the cover tabs
engage the air box. Lock the clamps to secure the
cover.
4. Reinstall the breather hose spring clamp. Reposition
the gear clamps to secure the intake hoses onto the
air box. Tighten gear clamps to specification.
TORQUE
Air Intake Hose Gear Clamps:
24 in-lbs (2.7 Nm)
FUEL SYSTEM
