10.16
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
FRONT CALIPER
2 SEAT

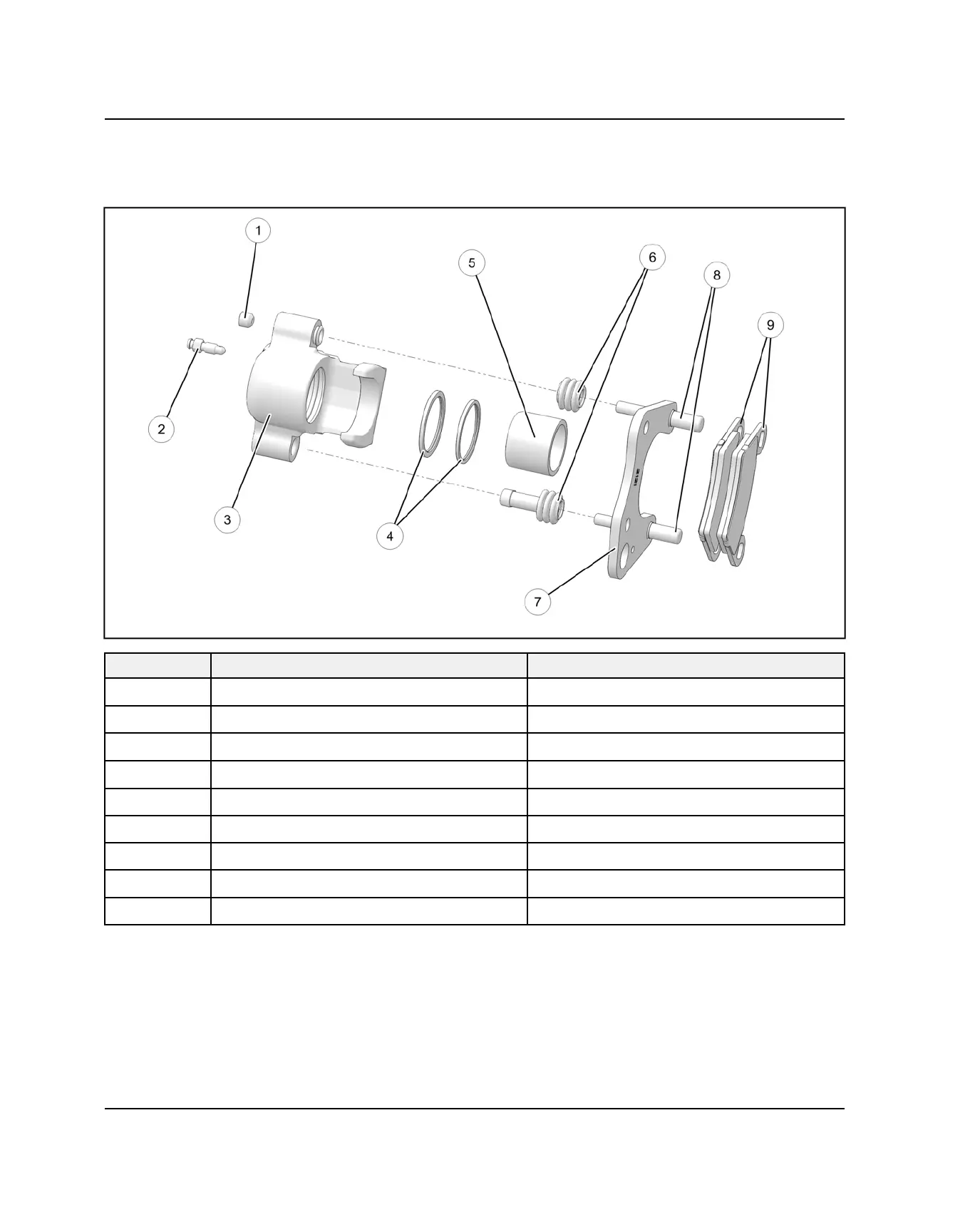

FRONT CALIPER ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Adjuster Screw
Finger Tighten
w
Bleeder Screw 30–60 in-lbs (3.4–6.8 Nm)
e
Caliper Body
r
Square O-Rings
Apply Polaris Dot 4 Brake Fluid
t
Piston Apply Polaris Dot 4 Brake Fluid
y
Dust Boots
u
Caliper Bracket
i
Caliper Pins Apply Brake Disc Caliper Lube
o
Pads
