Polaris RANGER 500 2020 Service Manual

12
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.
12.3
GENERAL INFORMATION
SPECIAL TOOLS
PART
NUMBER
TOOL DESCRIPTION
PV-43568
Fluke™ 77 Digital Multimeter
PV-43526 Connector Test Kit
2870630
Timing Light
2870836
Battery Hydrometer
2460761 Hall Sensor Probe Harness
2871745
Static Timing Light Harness
PU-47063
Digital Wrench™ Diagnostic Software
PU-47471
Digital Wrench™ SmartLink Module Kit
PU-50296
Battery Conductance Analyzer
Bosch Automotive Service Solutions: 1-800-345-2233
or http://polaris.service-solutions.com
ELECTRICAL SERVICE NOTES
Keep the following notes in mind when diagnosing an
electrical problem:
• Refer to wiring diagram for stator and electrical
component resistance specifications.
• When measuring resistance of a component that has a
resistance value under 10 Ohms, remember to
subtract meter lead resistance from the reading.
Connect the leads together and record the resistance.
The resistance of the component is equal to tested
value minus the lead resistance.
• Become familiar with the operation of your meter. Be
sure leads are in the proper jack for the test being
performed (i.e. 10A jack for current readings). Refer to
the Owner’s Manual included with your meter for more
information.
• Voltage, amperage, and resistance values included in
this manual are obtained with a Fluke™ 77 Digital
Multimeter. This meter is used when diagnosing
electrical problems. Readings obtained with other
meters may differ.
Fluke™ 77 Digital Multimeter:
PV-43568
• Pay attention to the prefix on the multimeter reading
(K, M, etc.) and the position of the decimal point.
• For resistance readings, isolate the component to be
tested. Disconnect it from the wiring harness or power
supply.

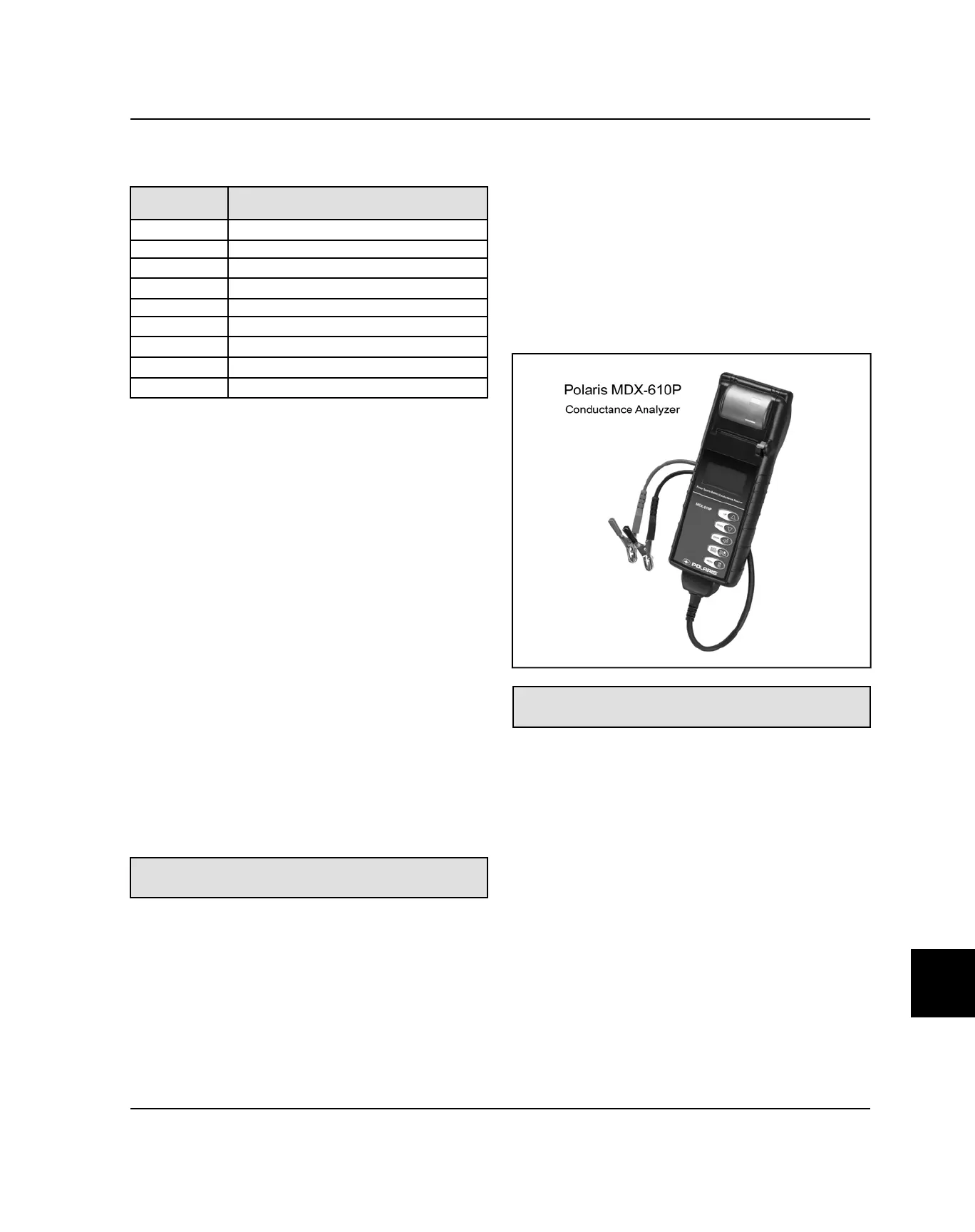

BATTERY CONDUCTANCE ANALYZER
Conductance describes the ability of a battery to conduct
current. A conductance tester functions by sending a low
frequency AC signal through the battery and a portion of
the current response is captured, from this output a
conductance measurement is calculated. Conductance
testing is more accurate than voltage, specific gravity, or
load testing.
Authorized Polaris dealers/distributors are required to
use the conductance analyzer when testing 12V Polaris
batteries.
Polaris MDX-610P
Bosch PN: PU-50296
ELECTRICAL
