12.8
9850043 R01 - 2017-2021 RANGER 500 / 570 Service Manual
© Copyright Polaris Inc.

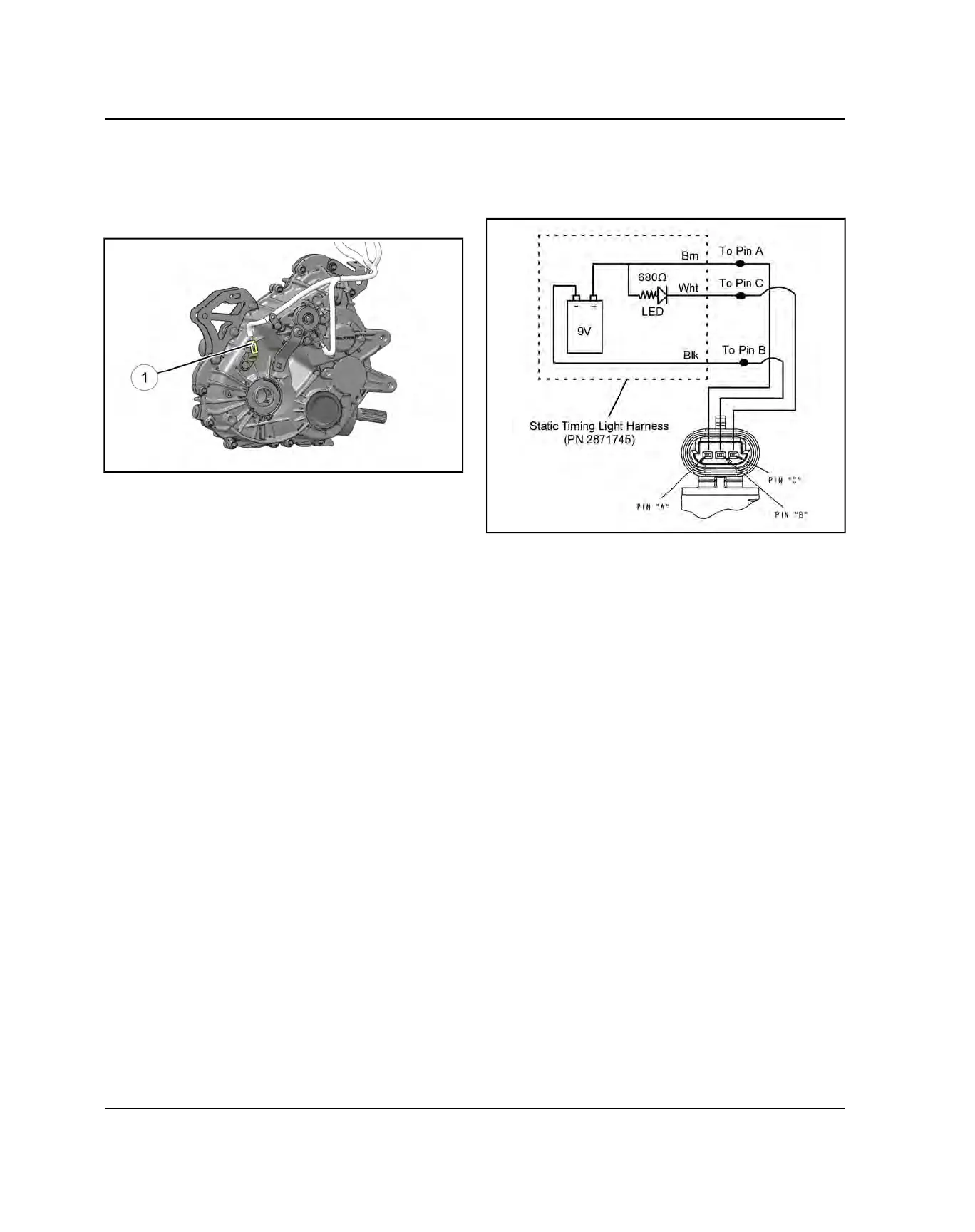

VEHICLE SPEED SENSOR
SPEED SENSOR LOCATION
The speed sensor
q
is located on the right side of the
transmission case and can be accessed from behind the
right rear wheel.
SPEED SENSOR TESTING
Special Tools Required:
Static Timing Light Harness (PN 2871745)
Hall Sensor Probe Harness (PN 2460761)
1. Disconnect the 3 wire harness from the speed
sensor and remove the sensor from the
transmission.
2. Connect the wires from the Static Timing Light
Harness to the sensor 3 pin connector using the Hall
Sensor Probe Harness (PN 2460761).
3. Pass a screwdriver back and forth in front of the
sensor tip.
4. Be sure connections are good and 9V battery is in
good condition. If the light flashes, the sensor is
good.
ELECTRICAL
