FRONT GEARCASE / CENTRALIZED HILLIARD

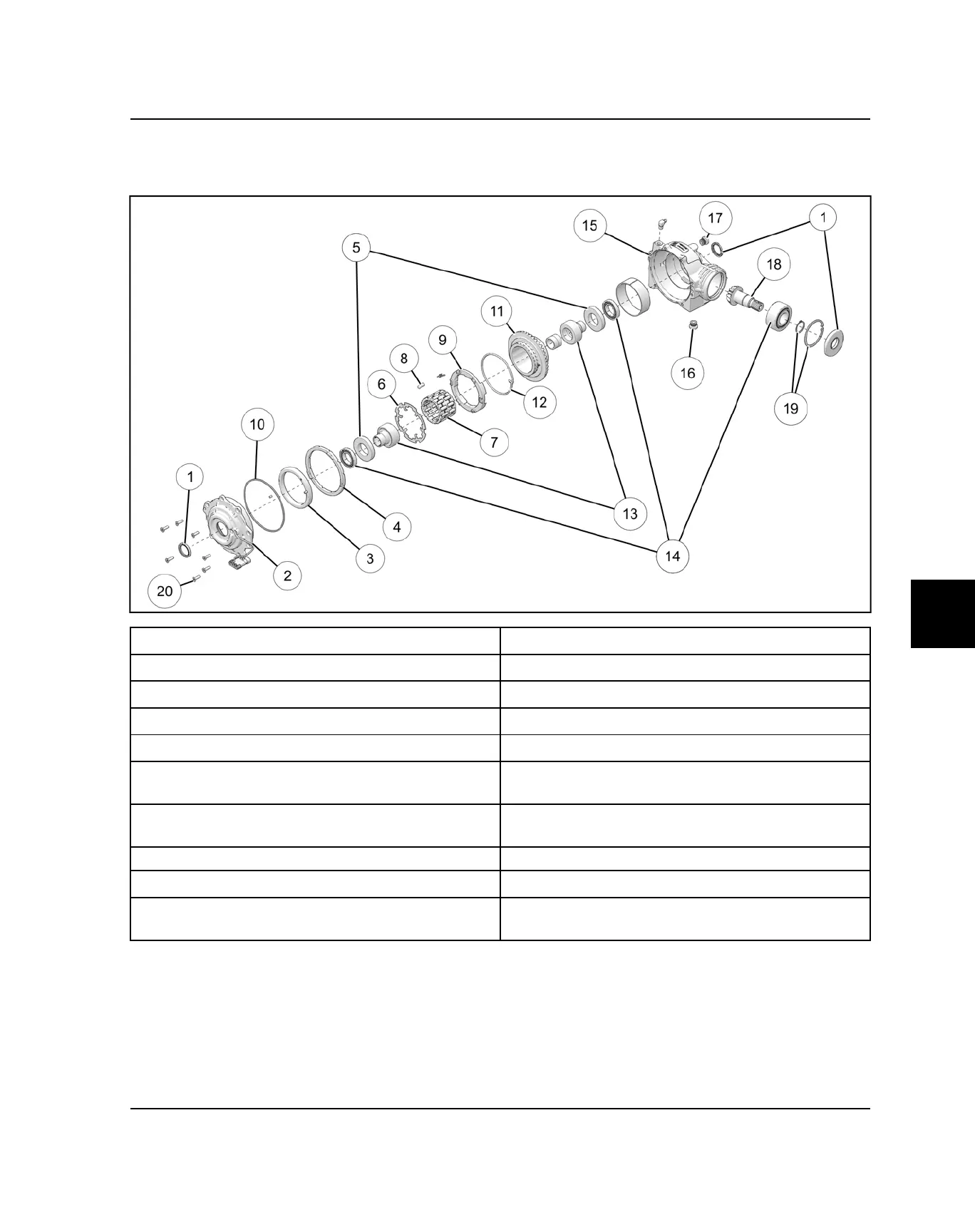

FRONT GEARCASE ASSEMBLY VIEW
q
Seal
s
Ring Gear
w
Cover Plate d
Spring
e
AWD Coil
f
Output Hub
r
Backlash Spacer
g
Bearing
t
Nylon Spacer
h
Gearcase Housing
y
Armature Plate
j
Drain Plug
10 ft-lbs (14 Nm)
u
Roller Cage
k
Fill / Check Plug
10 ft-lbs (14 Nm)
i
Roller
l
Pinion Gear
o
Spring Retainer
1(
Snap Ring
a
O-ring
2)
Cover Plate Screws
11 ft-lbs (15 Nm)
ALL WHEEL DRIVE OPERATION
The AWD switch may be turned on or off while the
vehicle is moving, however, AWD will not enable until the
engine RPM drops below 3100. Once the AWD is
enabled, it remains enabled until the switch is turned off.
Engage the AWD switch before getting into conditions
where the front wheel drive may be needed. If the rear
wheels are spinning, release the throttle before switching
to AWD.
FINAL DRIVE
