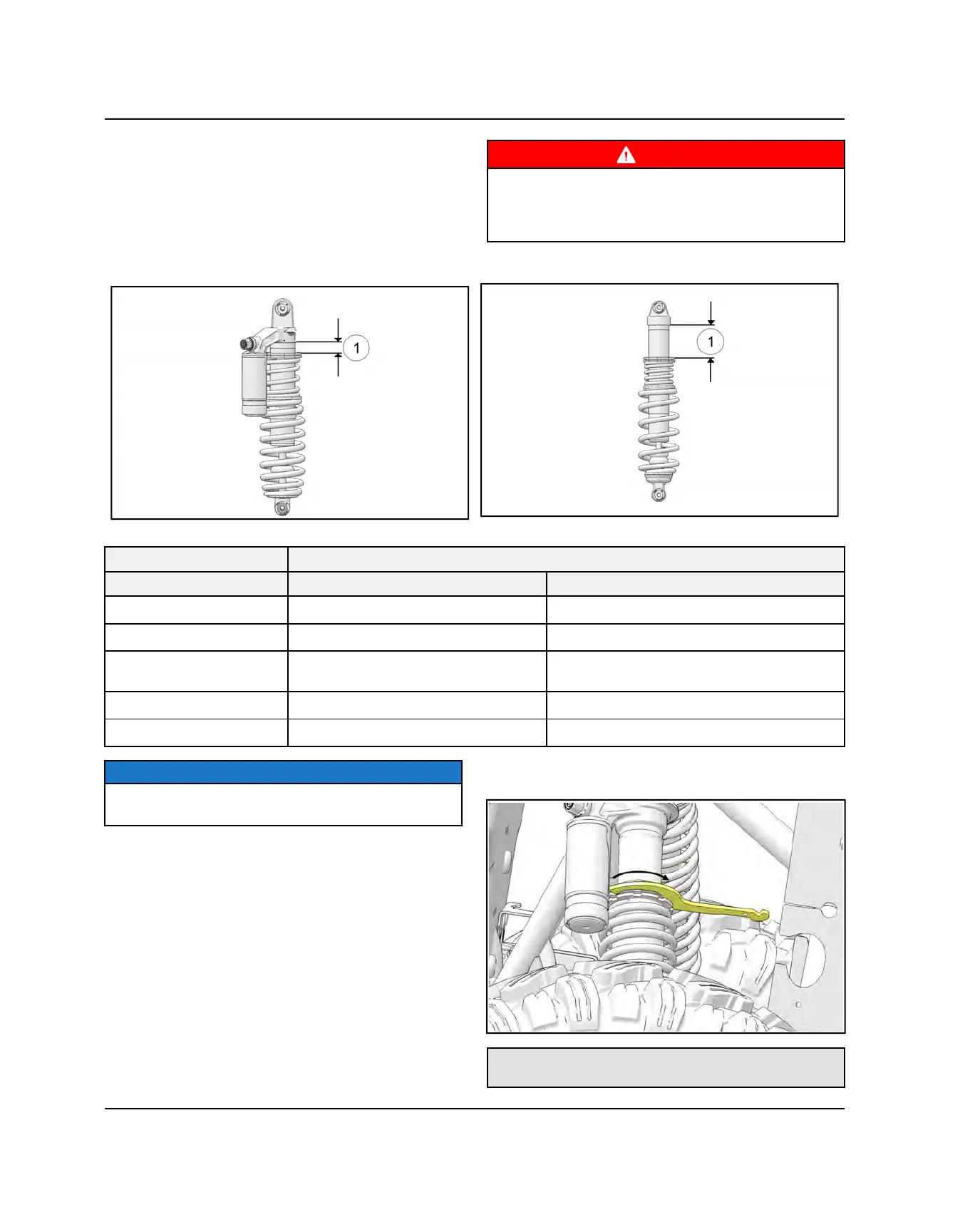

SPRING ADJUSTMENT (FOX)
The front and rear shocks have a spring adjustment
setting
q
. Suspension springs may be adjusted to suit
different riding conditions or vehicle payloads.
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in an accident and serious
injury or death. Always adjust both the left and right
springs equally.
Piggyback
Mono
SPRING ADJUSTMENT - FACTORY SETTING
Front Rear
RZR XC
4.41″ (11.20 cm) 0.74″ (1.89 cm)
RZR S 900 Mono Shock
7.94″ (20.17 cm) 3.31″ (8.41 cm)
RZR S 900 Piggyback
Shock
6.1″ (15.49 cm) 2.81″ (7.14 cm)
RZR 4 900
6.08″ (15.44 cm) 1.15″ (2.92 cm)
RZR S 1000
6.1″ (15.49 cm) 2.81″ (7.14 cm)
NOTE
Refer to the shock illustrations for spring measurement
q
location.
The factory setting is appropriate for nearly all riding
conditions. If desired, the spring setting may be adjusted
to maintain vehicle clearance height when carrying
loads.
1. Raise and safely support the front or rear of the
vehicle off the ground to allow the suspension to fully
extend.
2. Loosen the upper jam nut adjustment ring using the
spanner wrench included in the vehicle’s tool kit.
Shock Spanner Wrench:
2877408
