CONTROLS
Electrical Switches
WARNING
Activating the override switch while the throttle is open can cause
loss of control, resulting in severe injury or death. Do not activate
the override switch while the throttle is open.

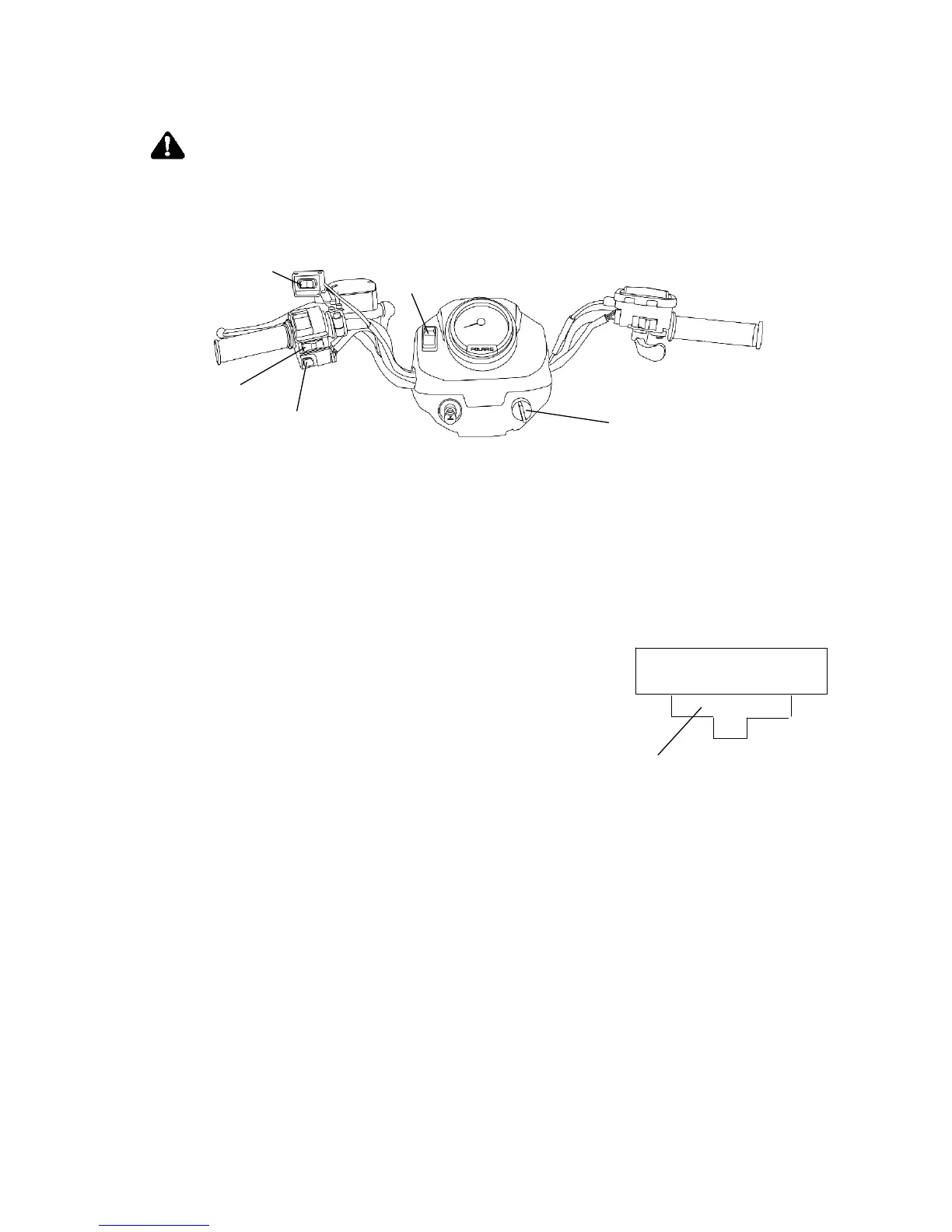

Mode/Reverse Override Switch (1) - This vehicle is equipped with a
reverse speed limiter system. To gain additional power while backing,
depress the override switch.
NOTE: The override switch also allows activation of AWD in reverse,
if the AWD switch is on. This switch is also used to toggle
through the different modes of the rider information center.
See page 44.
Engine Stop Switch (2) - The engine will
not start or run when the switch is in the
OFF position. Its purpose is to provide the
operator with a quick means of engine
shutdown in case of an emergency.
Main Switch (3) - To start the engine, slide
the stop switch to the center RUN position and turn the main key
switch clockwise past the ON position. Release the key when the
engine starts.
NOTE: Both the main switch and the emergency engine stop switch
will shut off all electrical power to the vehicle, including lights.
To stop the engine, slide the stop switch either right or left to
the OFF position.
Front/Rear Winch Switch (4) - Use the switch on t he pod to select
either the front or rear winch.
Winch Operation Switch (5) - After selecting either the front or rear
winch with the switch on the pod, use the handlebar switch to operate
the winch. Winch operation instructions can be found in The Basic
Guide to Winching Techniques, provided by the winch manufacturer.
1
3
2
4
5
RUN
OFFOFF
2
