45
FEATURES

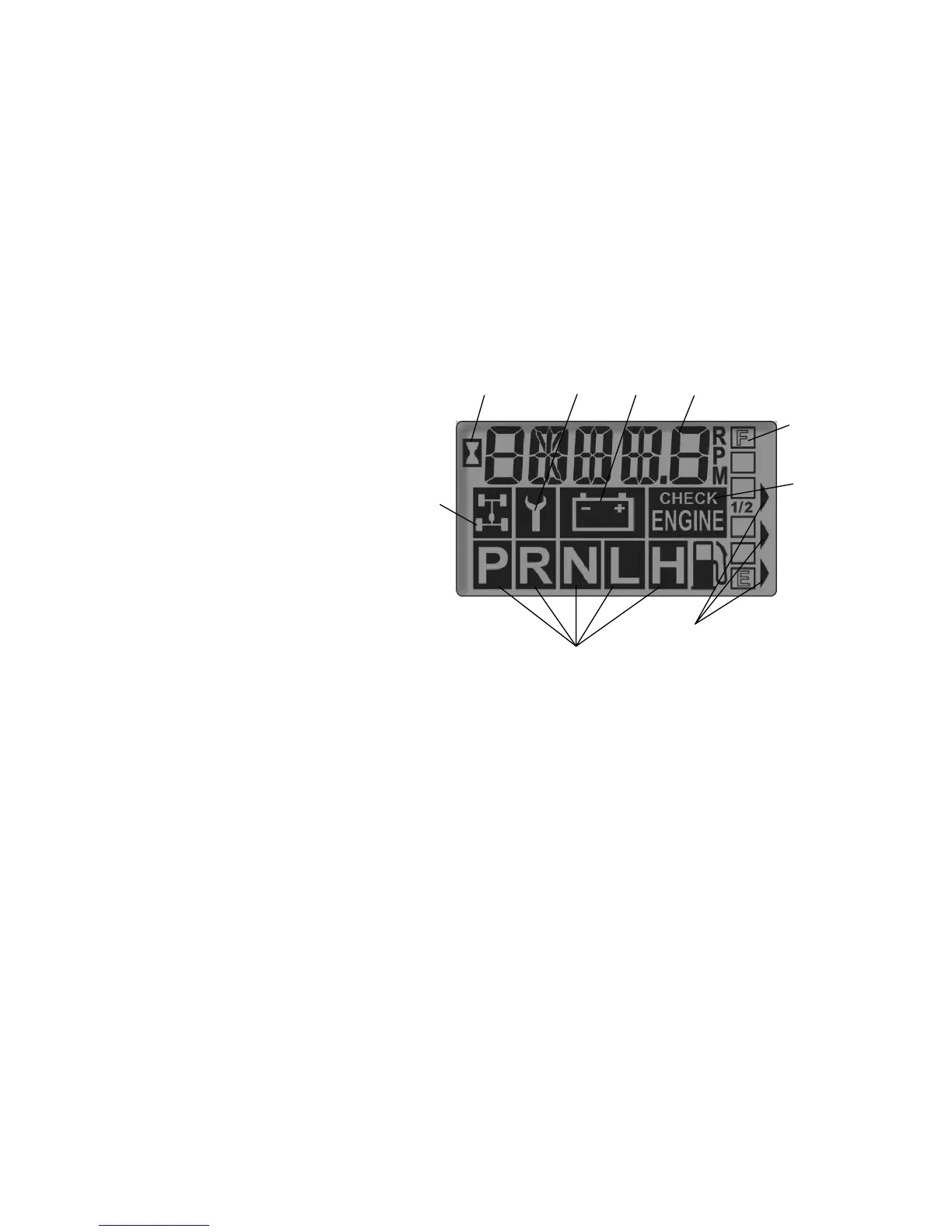

Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery
over-voltage may have occurred and the instrument cluster
may have shut off to protect the cluster’s electrical syst em. If
this occurs, take the ATV to your Polaris dealer for proper
diagnosis.
1. Gear Indicator - As the shift lever is moved, this indicates the
gear the transmission is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
P=Park
2. AWD Indicator - This
indicator illuminates
when the electrical
portion of the AWD
system is enabled.
3. Engine Hour Display Indicator
4. Service I nterval/Diagnostic Mode In dicator
5. Low Battery and Over Voltage - This warning usually indicates
that the ATV is being operated at an R PM too low to keep the
battery charged. A low batte ry war ning ma y also occ ur under norma l
oper ation if the machine is at idle and high elec tric al load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Fuel Gauge - The segments of the fuel gauge indicate the level of
fuel in the front tank only. Since use of the rear tank is
recommended for normal operation, the rear tank may already be
empty. Refuel immediatel y if the last segment of the fuel gauge
clears.
8. Check Engine Warning Indicator - The word HOT will display
alphanumerically when the engine is overheating. Do not continue
to operate the ATV if this warning appears or serious engine
damage could result.
9. Mode Indicator
8
5
4
3
1
6
2
9
7
