MAINTENANCE AND LUBRICATION
Lights
High Beam Adju stment
The headlight beam can be adjusted slightly upward or downward.
Use the following procedure t o make the adjustment.
1. Position the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
3. Start the engine and turn the headlight switch to high beam.
4. Observe the headlight aim on the wall. The most intense part of
the headlight beam should be two inches (5.1 cm) below the mark
on the wall.
NOTE: Include rider weight on the seat when measuring.
5. The adjustment knob is locat ed on the right side of the headlight
pod. Adjust the beam to the desired position by turning the knob
either clockwise or counterclockwise.
Low Beam Adjustment

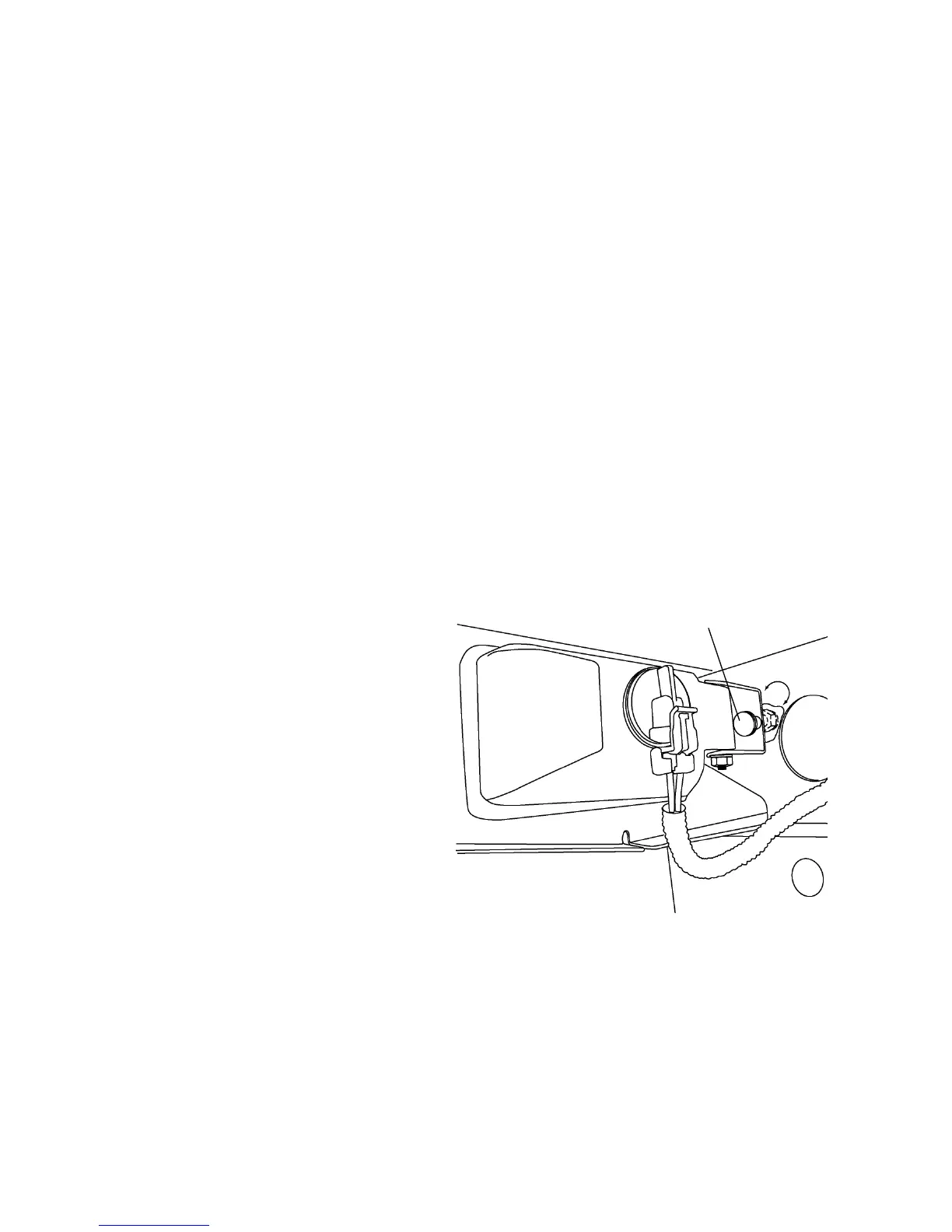

The low beam can be
adjusted slightly upward or
downward.
1. Loosen the headlamp
mounting bolt (1).
2. Tilt the headlamp
upward or downward.
3. Tighten the bolt.
1
