Remove wheels and frame from the box.
Remove the axle caps and t the wheels by pressing the
release button located on the hub and slide onto the
axle until the clutch is engaged. For storage and transit
purposes, the wheels can be rotated inwards.
Note: On EBS models only, the wheels can be locked into
two positions on the axle; push onto the inner grooves to
engage the clutches. The outer grooves can be used when
drive is not required.

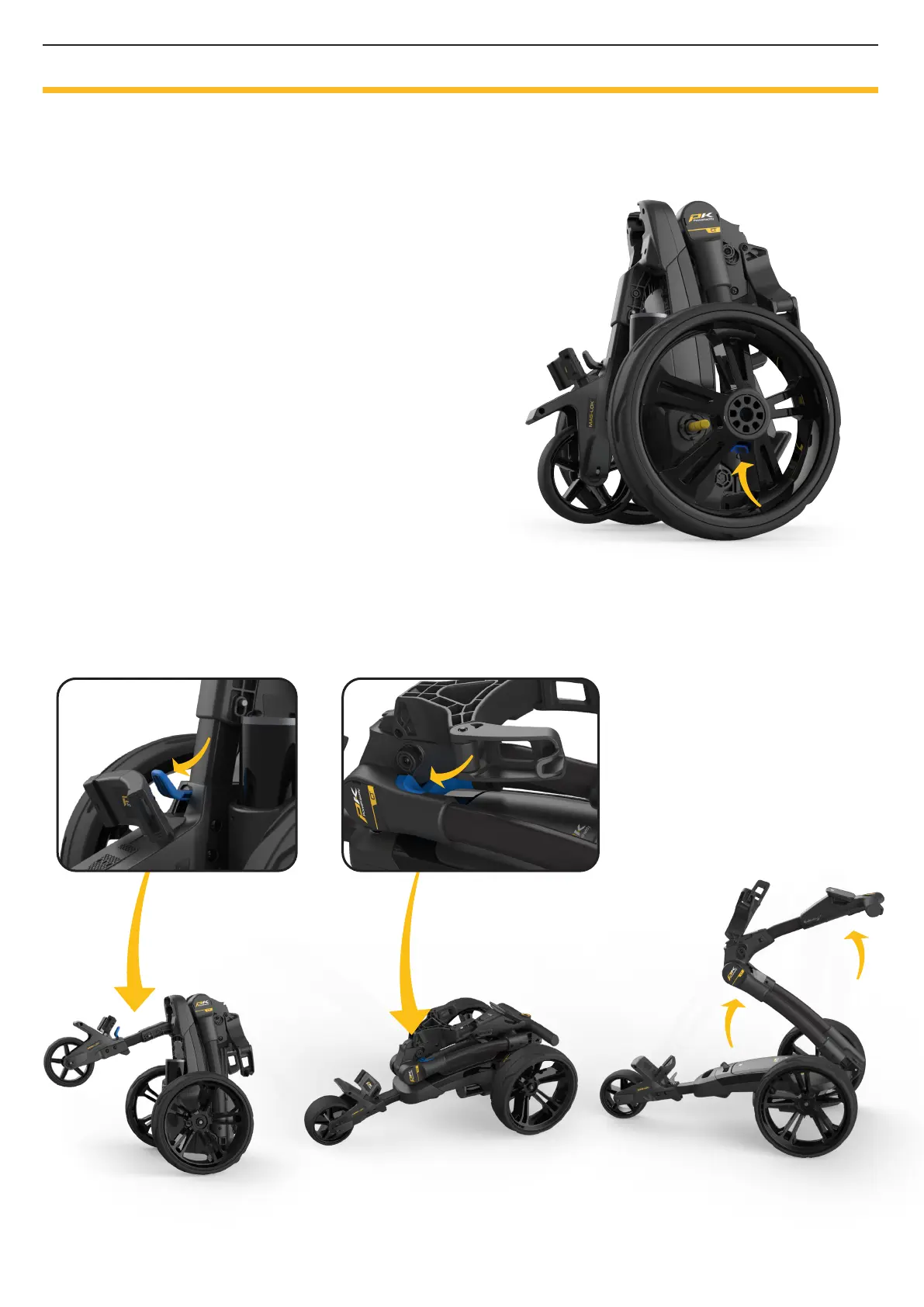

To open the frame, push the front wheel lever (highlighted
blue) towards the bag stay and rotate the front wheel
assembly until it locks into place. Secondly, press the main
lock button (highlighted blue) and lift the handle until the
rear and upper joints click into place.
Reverse the process to fold so that the handle hook locks
into the rear joint.
Attach the Wheels
Unfolding the Frame
Page 4
GETTING STARTED
