Owner’s Manual for Portable Generator 5
Section 2 General Information and Setup

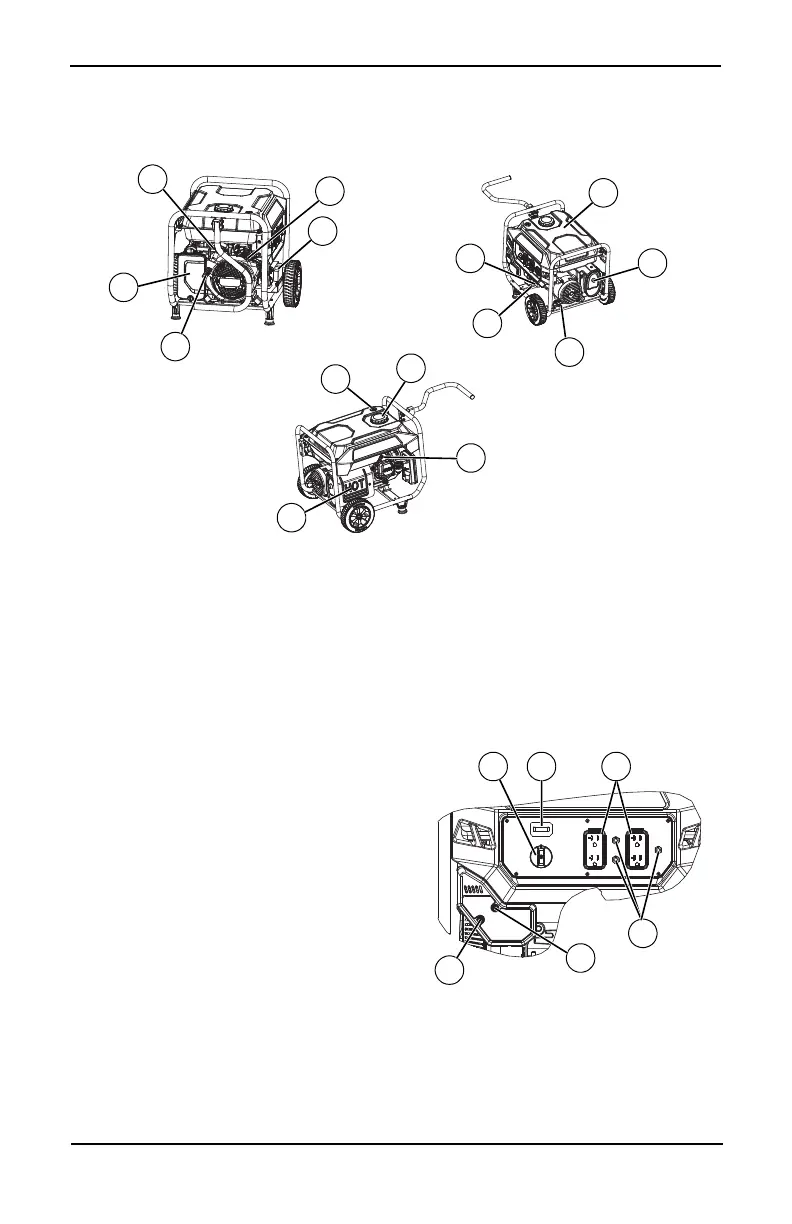

Figure 2-1. Features and Controls
Generator Components
Figure 2-2. PM3800 Control Panel
009418
10
11
19
13
9
17
15
18
8
16
14
009419
009423
12
23
22
1 120 Volt AC, 20 Amp, Duplex Receptacle
(NEMA 5-20R)
2 120 Volt AC, 20 Amp, GFCI Duplex
Receptacle (NEMA 5-20R)
3 120 Volt AC, 30 Amp, Twistlock
Receptacle (NEMA L5-30R)
4 Circuit Breakers (AC)
5 Hour Meter
6 Off/Run/Cold Start Dial
7 Engine Start/Stop Button
8Oil Drain
9 Air Filter
10 Fuel Tank
11 Grounding Lug
12 Muffler
13 Gas Cap
14 Fuel Gauge
15 Oil Check/Fill
16 Spark Plug
17 Recoil Starter
18 Fuel Shut Off
19 Spark Arrestor
20 COsense RED (Hazard) (if equipped)
21 COsense YELLOW (Fault) (if equipped)
22 Battery (if equipped)
23 Engine ON/OFF Switch (if equipped)
*
See
Figure 2-3 for PM4500 control panel
and
Figure 2-4 for PM4400E control
panel.
