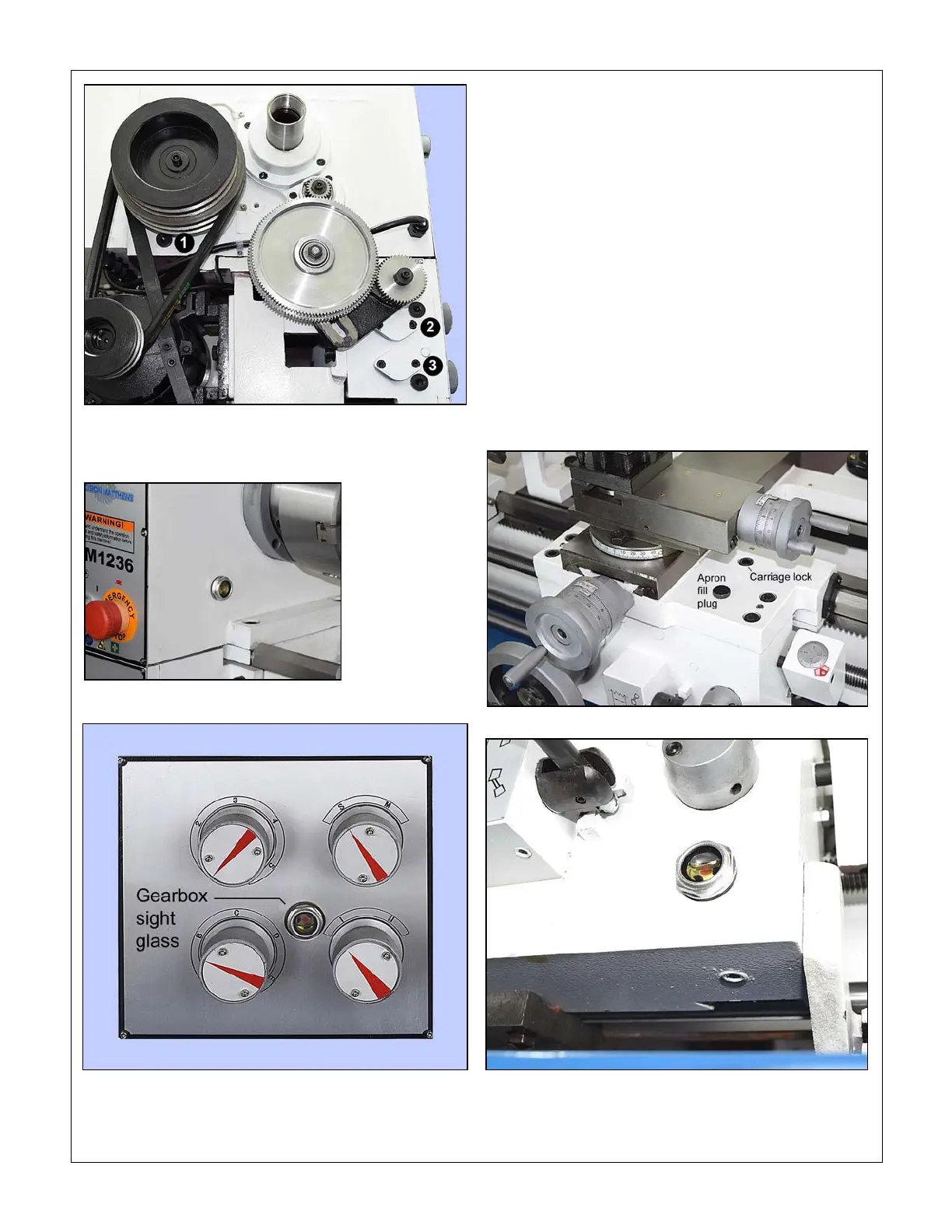

Figure 4-2 Gearbox fill & drain plugs
Headstock drain plug (1); Carriage Feed Gearbox fill plug (2),
Carriage Feed Gearbox drain plug (3)
Figure 4-3 Headstock sight glass
Figure 4-6 Apron sight glass & drain plug
Figure 4-5 Apron fill plug
CARRIAGE FEED GEARBOX DRAIN & REFILL
Make a card-stock Vee channel as described for draining
the headstock. Run the lathe for a few minutes to warm
the oil if necessary, then remove fill plug (2), Figure 4-2.
With the Vee channel in place, remove drain plug (3)
and allow the gearbox to empty completely. Replace the
drain plug. To refill the gearbox use a funnel attached to
a flexible plastic tube inserted into the fill hole. Add oil to
the halfway mark on the sight glass, Figure 4-4 (about
1 qt).
APRON DRAIN & REFILL
Remove the fill plug, Figure 4-5. Remove the drain plug,
Figure 4-6, and allow the apron to empty completely.
Replace the drain plug. Add oil to the halfway mark on
the sight glass (about 1/2 qt).
Figure 4-4 Carriage feed gearbox sight glass
