CARRIAGE (diagram on following page)
Ref. Mfr. No. Description Qty. Ref. Mfr. No. Description
Qty.
1 5101 Carriage 24 Nut: M8 4
2 Screw: M5 x 12 8 25 Screw: M8 x 25 skt hd 4
3 5108 Wiper 1 26 5112 Wiper cover 2
4 5106 Wiper cover 1 27 5111 Wiper 2
5 Screw: M3 x 8 1 28 5131 Gib support bar 1
6 5130 Carriage gib 2 29 5116 Slider plate 2
7 5110 Wiper cover 2 30 Key: 5 x 20 1
8 5109 Wiper 2 31 5129 Carriage lock plate 1
9 5113 Screw: oil cap 1 32 Pin: 3 x 20 1
10 5128 Screw: carriage locking 1 33 5124A3 Graduated collar 1
11 Pin: 6 x 45 2 34 4037 Leaf spring 1
12 Screw: M10 x 30 skt hd 4 35 5122A Handwheel 1
13 Oiler 5 36 5028 Washer 1
14 5115 Cross slide gib screw 2 37 Screw: M6 x 16 skt hd 1
15 5102 Cross slide 1 38 4033 Shoulder bolt 1
16 Screw: M6 x 12 1 39 4032 Handle 1
17 5105 Bushing 1 40 8102 Thrust bearing: 15 x 28 x 9 1
18 5114 Cross slide gib 1 41 5125A Leadscrew hub 1
19 Screw: M4 x 12 1 42 Screw: M8 x 30 skt hd 2
20 5104A2 Split nut 1 43 5126 Collar 1
21 Gear 1 44 5103A3 Cross slide leadscrew 1
22 Screw: M6 x 8 set 1 45 Rivet: 2 x 4 2
23 Screw: M8 x 25 skt hd 7 46 5133A2 Datum plate 1

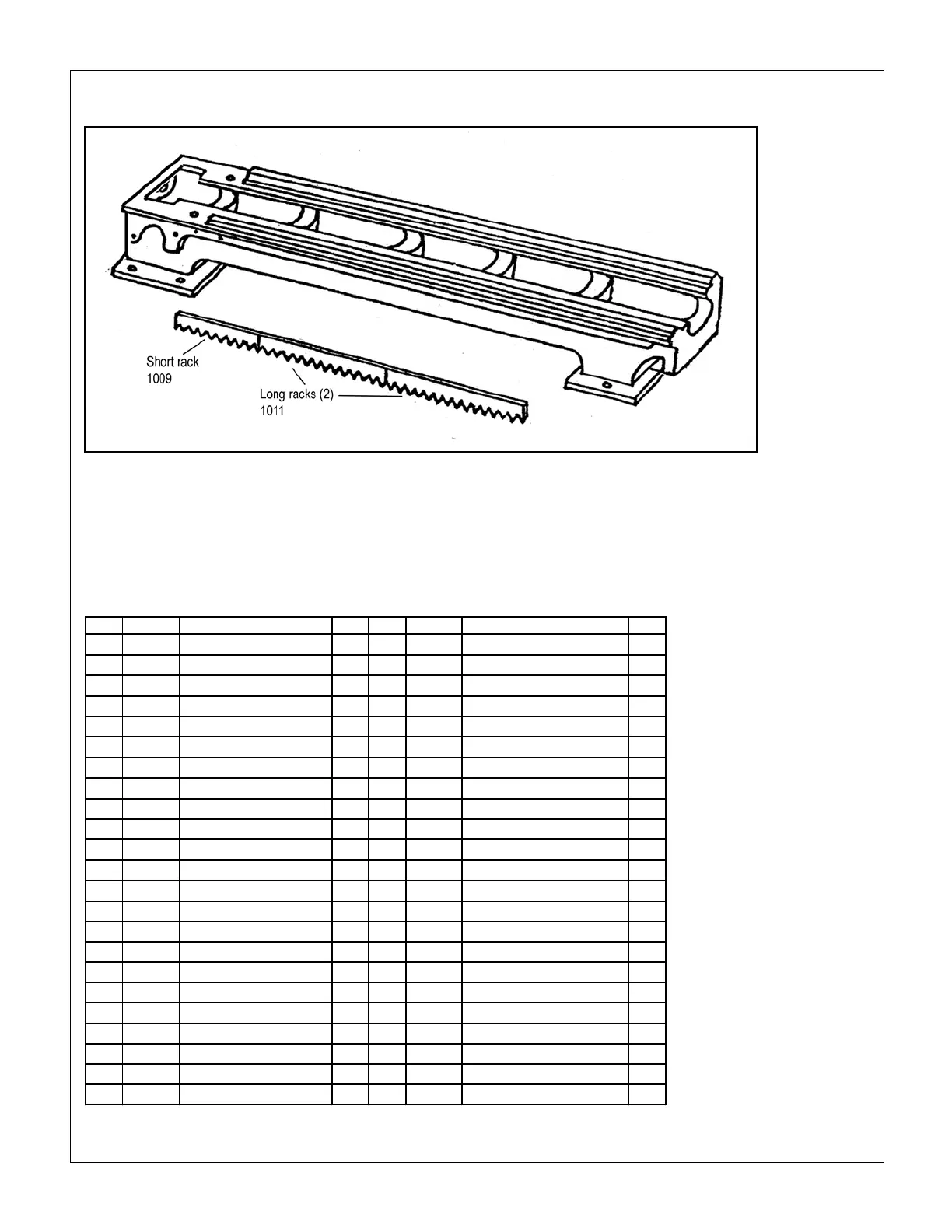

LATHE BED
Lathe bed 10047
NOTE Racks are aached by M6 x 15 skt hd screws (6) and 5 x 20
pins (6). Bed is aached to stands by M12 x 40 hex hd bolts (6)
NOT SHOWN Removable gap
plug and related hardware
