5B Adjusting Print Alignment
Eddie comes from the factory calibrated to print exactly to the edge of Primera
Cookies. Eddie senses the beginning of the print object height and the front and back
edge of the print object with an optical sensor. However, due to variability it may be
necessary to fine tune these settings.

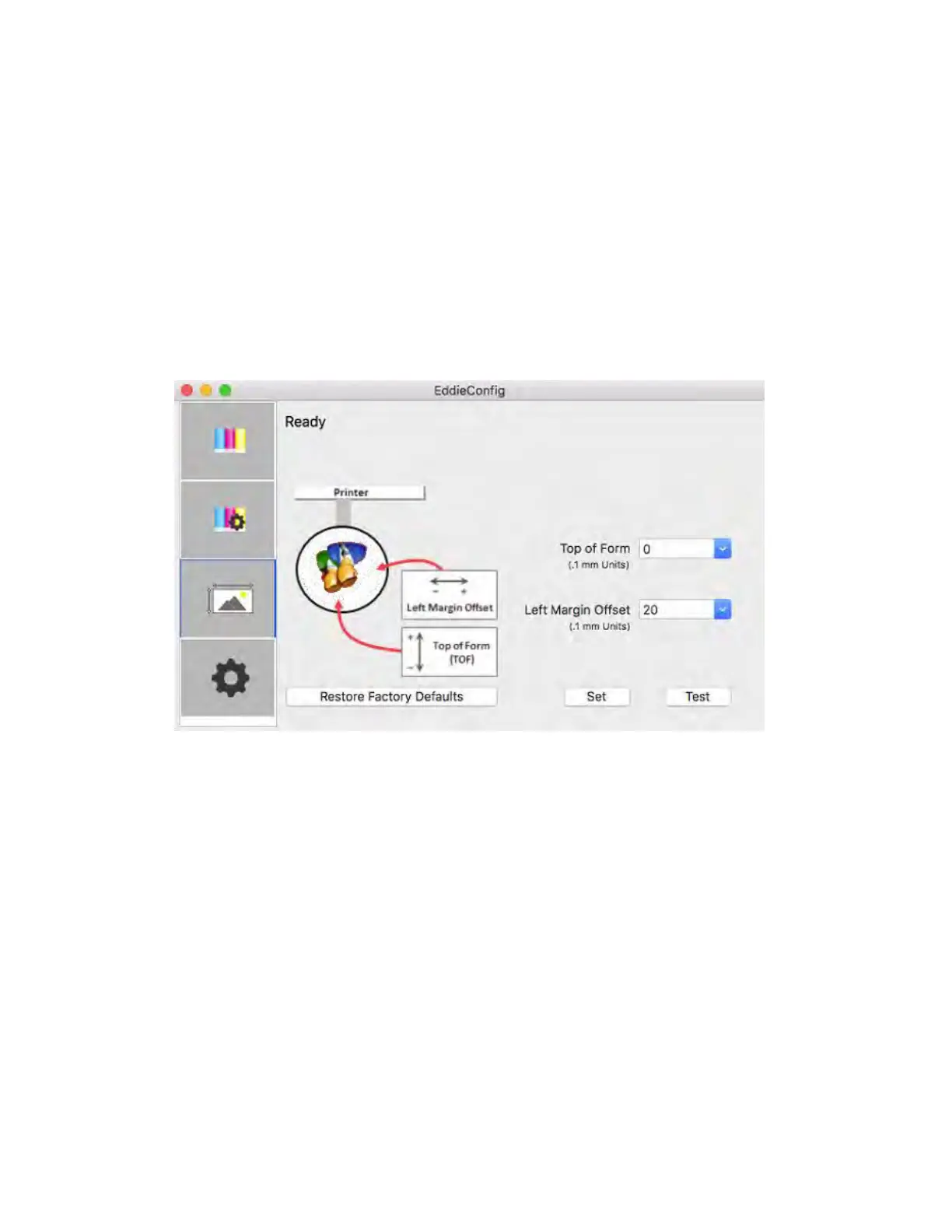

Adjust print alignment using the Eddie Config Utility. Click on the Alignment Tab (Third
Tab).
Two items can be adjusted here:
* Left Margin Offset. This value moves the printed image left or right. Add to the
current value to move the printed image to the right. Subtract from the current
value to move the printed image to the left. After adjusting the value, click the Set
Offsets button to send the value to the printer.
* Top of Form (TOF). This value moves the print start position up or down on the
print object. Add to the current value to move the printed image down or toward
the printer. Subtract from the current value to move the printed image up or away
from the printer. After adjusting the value click the Set Offsets button to send the
value to the printer.
You may have to make several adjustments to one or more of these values. After each
adjustment you can click the Test button to print a small test pattern on the print
object. This will help you find the proper alignment value.
