4 – Managing Switches
Using Call Home
4-52 59264-01 A
S
Using the Call Home Message Queue
Use the Call Home Message Queue dialog (Figure 4-24) to access the logged call
home statistics. Click the Update Stats button to refresh with the most recent
switch Call Home information. Click the Clear Queue button to clear the current
statistics.

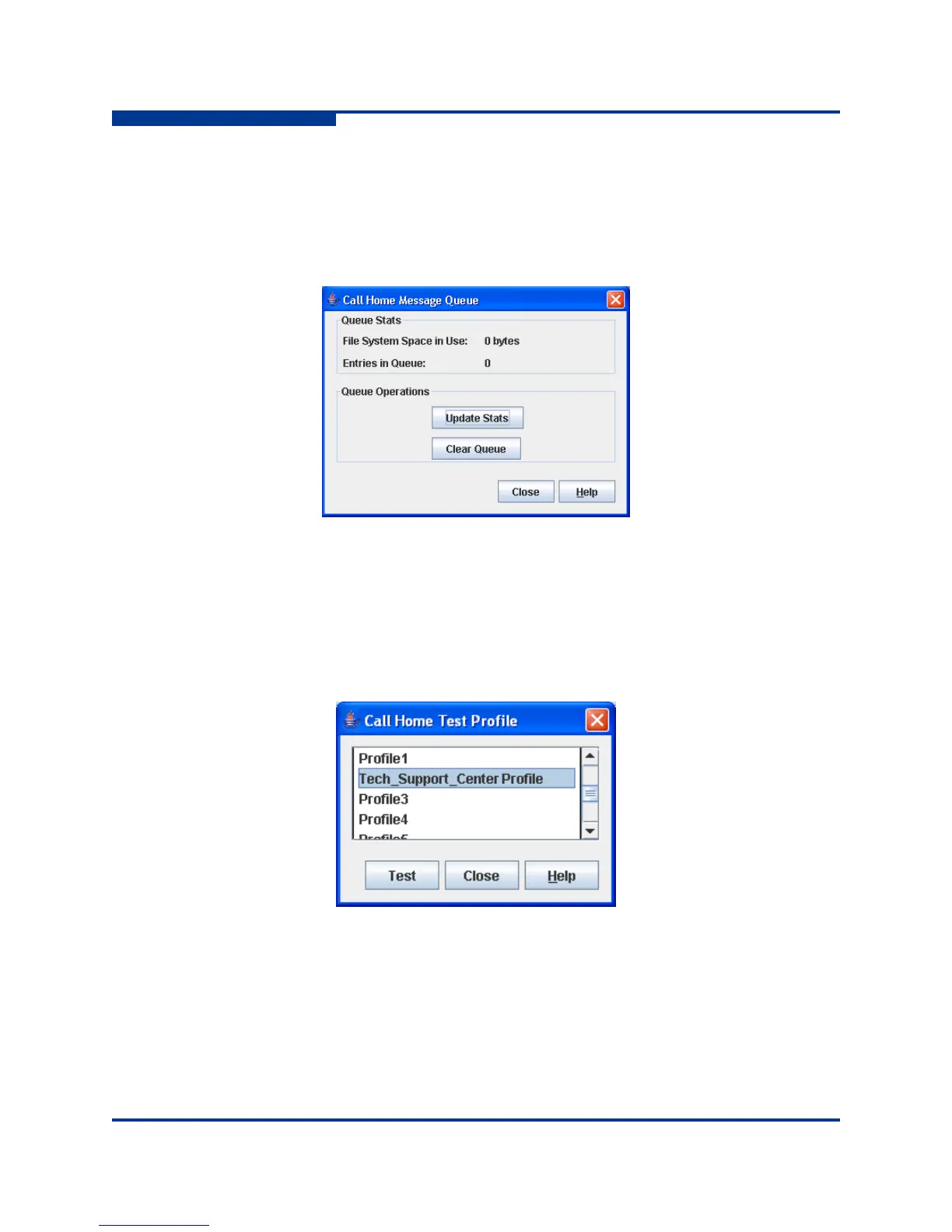

Figure 4-24 Call Home Message Queue Dialog
Testing Call Home Profiles
Use the Call Home Test Profile dialog (Figure 4-25) to test the Call Home
parameters currently configured. Select one or more profiles in the window, and
click the Test button. To display the Call Home Test Profile dialog, open the
Switch menu, select Call Home, and select Test Profile.
Figure 4-25 Call Home Profile Manager Dialog
