4 – Managing Switches
Configuring the Network
59264-01 A 4-23
A
Network Properties
Use the Network Properties dialogs (Figure 4-10) to configure IP and DNS
parameters. The Network Properties dialog has two tabs: IP and DNS. Click the IP
tab to open the Network Properties IP dialog. Click the DNS tab to open the
Network Properties DNS dialog. After making changes, click the OK button to put
the new values into effect.
To open the Network Properties dialog, choose one of the following:
Open the faceplate display for the switch you be configuring. Open the
Switch menu and select Network Properties.
Right-click a switch graphic in the faceplate display, and select Network
Properties from the popup menu.

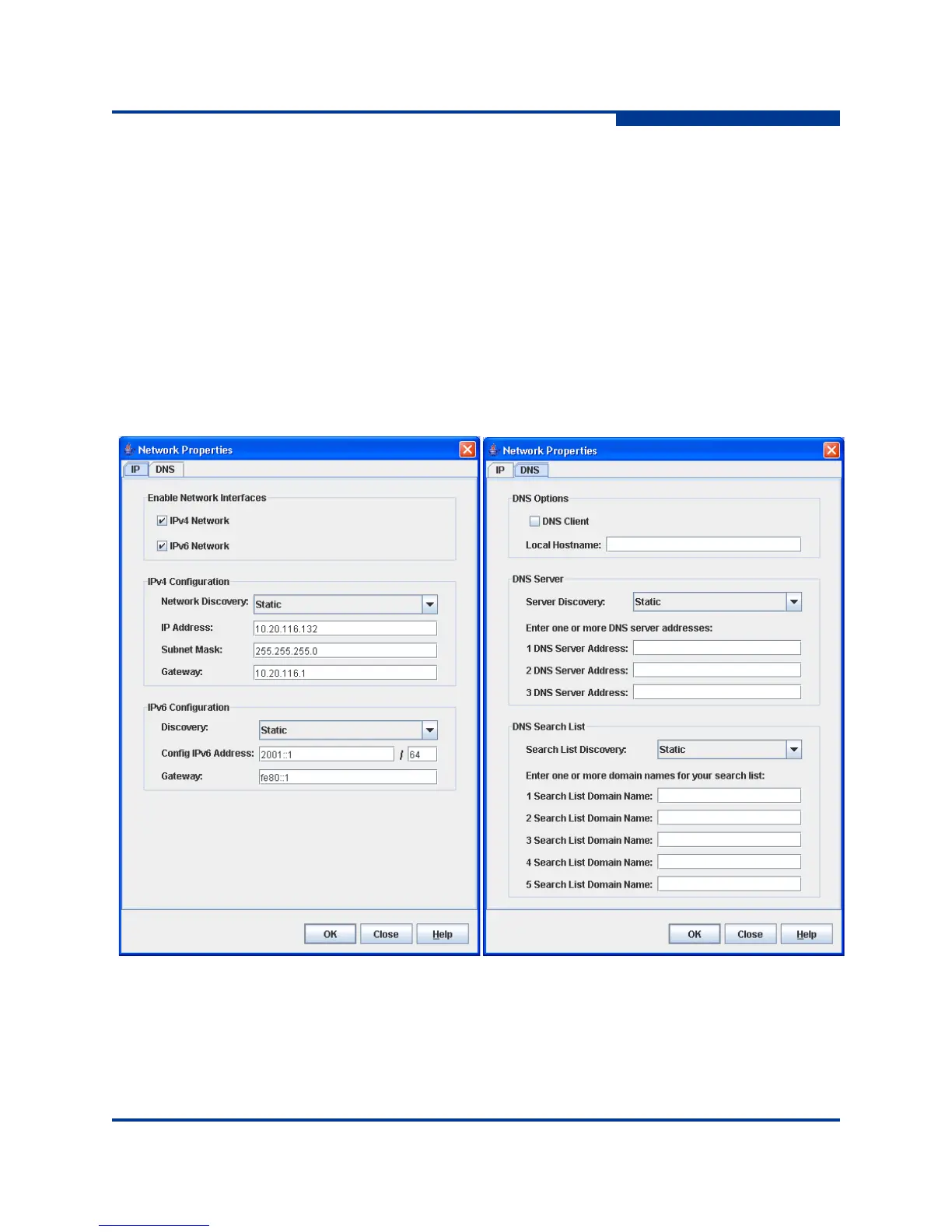

Figure 4-10 Network Properties Dialogs
