3.16 Install 50K multi-turn trimmer potentiometers

There are two 50K multi-

turn trimmer

potentiometers, R17 and

R24. They are the small

blue box components with

label “’503”.

The trimmer

potentiometers must be

prepared before

installation by cutting

off the small plastic

ledges with a wire-

cutter, as described in

the preceding section.

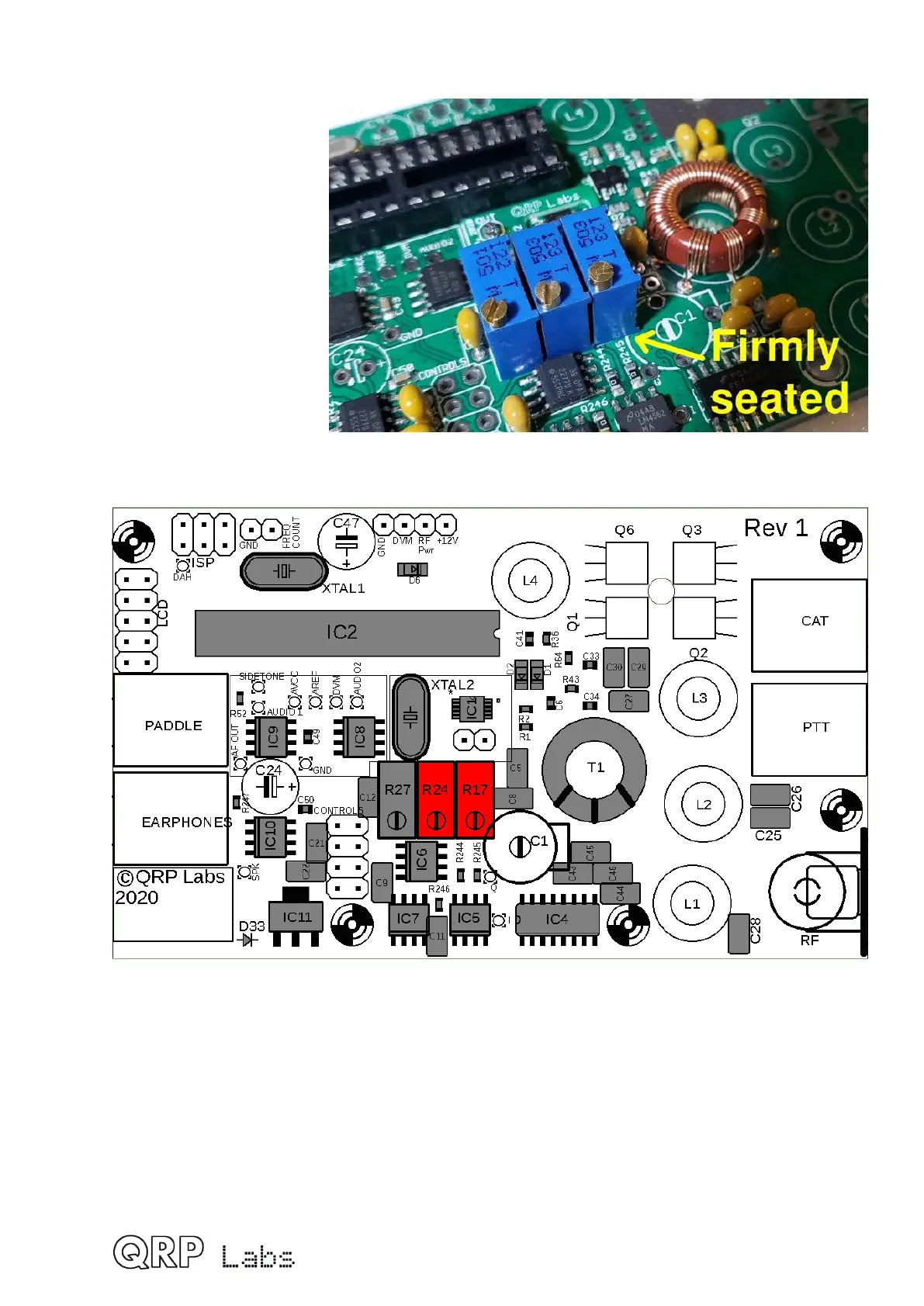

The screws on the resistors must match the screws on the PCB silkscreen and layout

diagram.
