3.40 Fit Controls PCB to main PCB

Now fit the Controls PCB to the main PCB by plugging together the two 2x4-pin header

connectors.

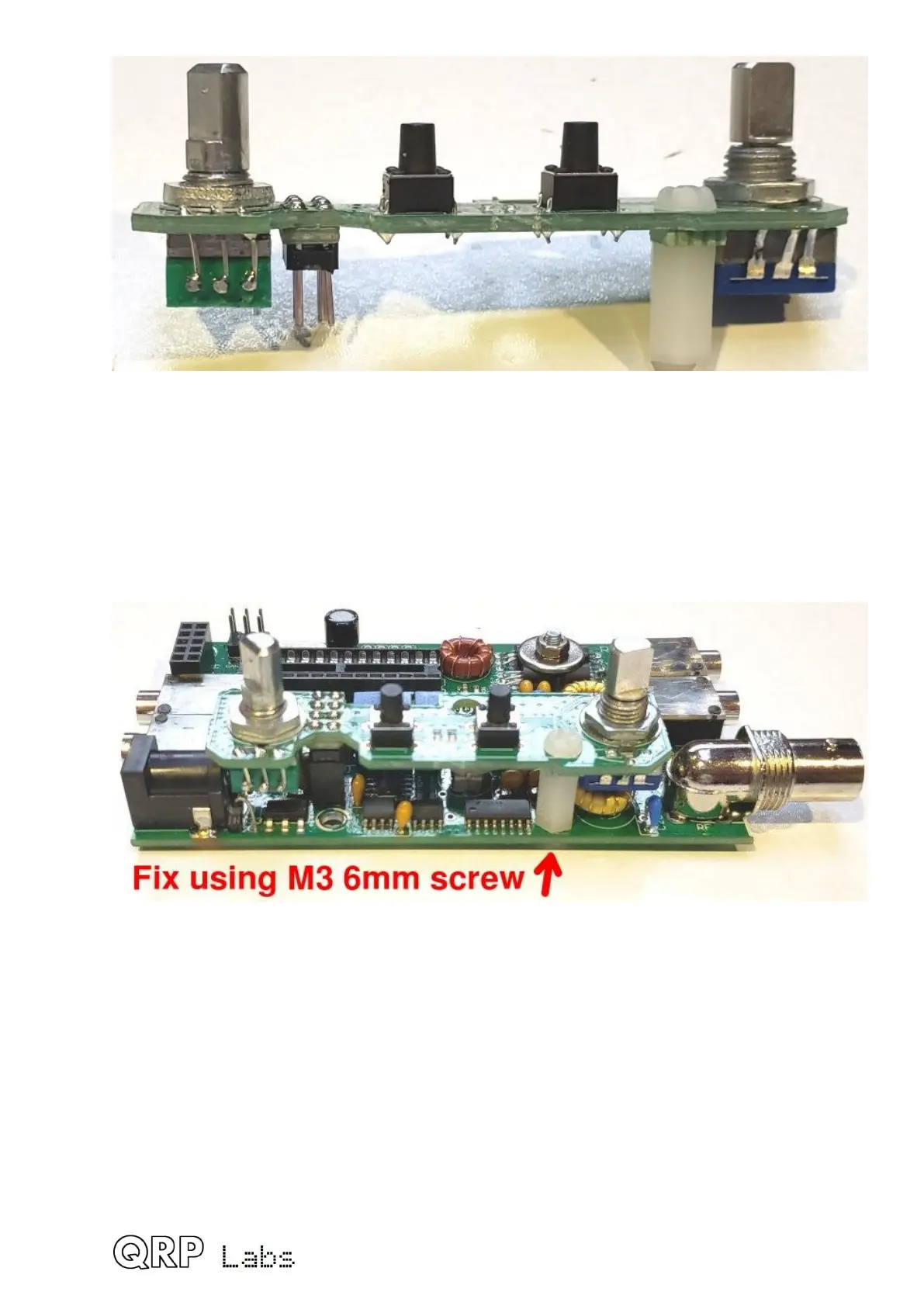

Fit an M3 6mm screw from the underside of the main PCB, screwed into the 11mm nylon

hex spacer pillar that is fixed to the Controls PCB, as shown in the following photograph.
