GSM /GPRS Module
M10 EVB User Guide
M10_EVB_User_Guide Confidential / Released 14 / 31

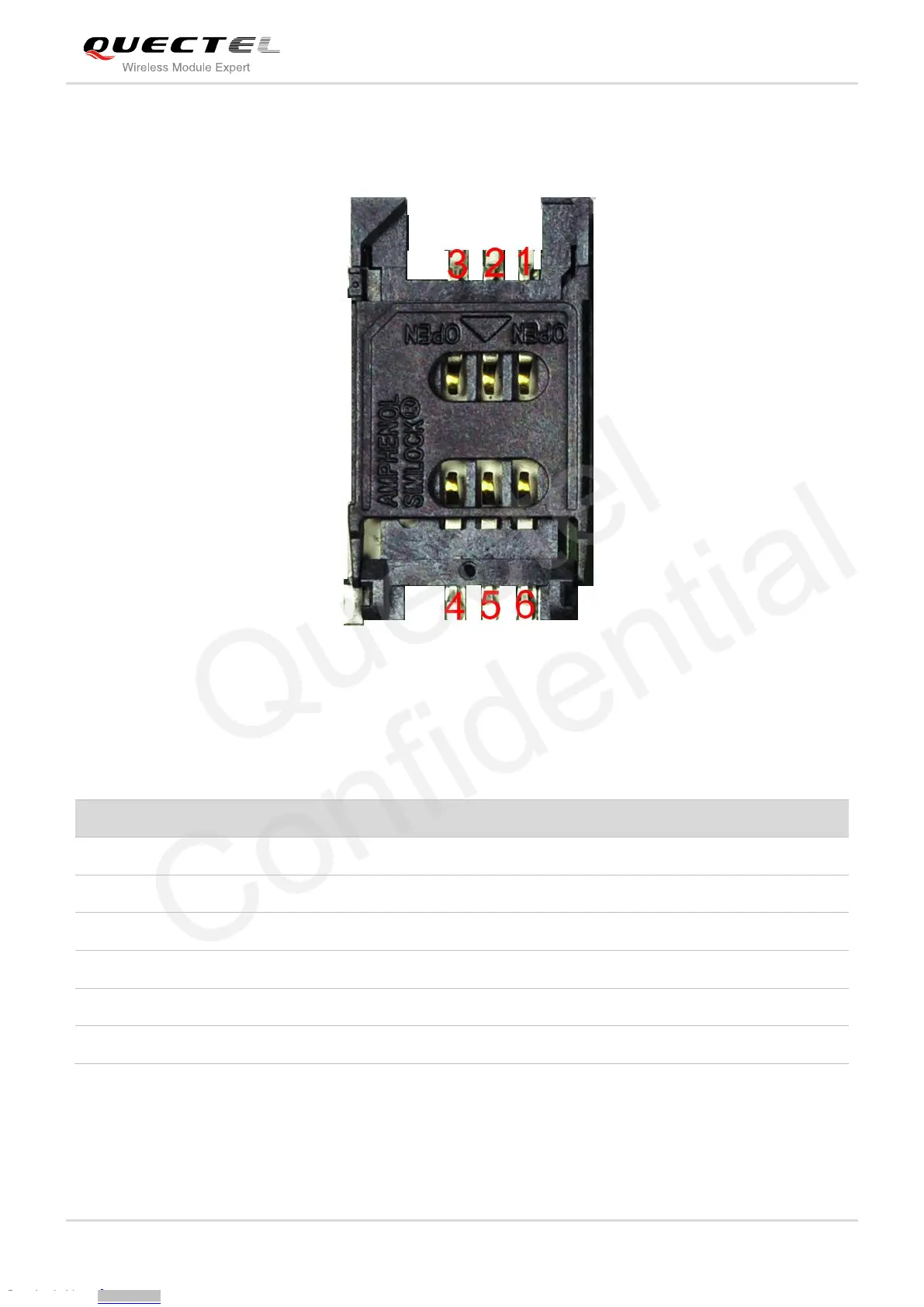

3.3. SIM Card Interface
Figure 6: SIM card interface
Table 4: Pins of SIM card interface
Pin
Signal
I/O
Description
1
GND
Ground
2
VPP
Not connected
3
SIM_DATA
I/O
SIM card data I/O
4
SIM_CLK
O
SIM card clock
5
SIM_RST
O
SIM card reset
6
SIM_VDD
O
SIM card power output
Quectel
Confidential
