5.3. Firmware Upgrade through Main Port
(1) Start the Firmware Upgrade Tool in the PC.
(2) Press the START button in the Firmware Upgrade Tool.
(3) Switch the S201 and S202 in the EVB to ON state as shown in Figure 18.
After these steps, the firmware refreshing process will be proceeding. For more details, please refer to
chapter 7 in document [4].

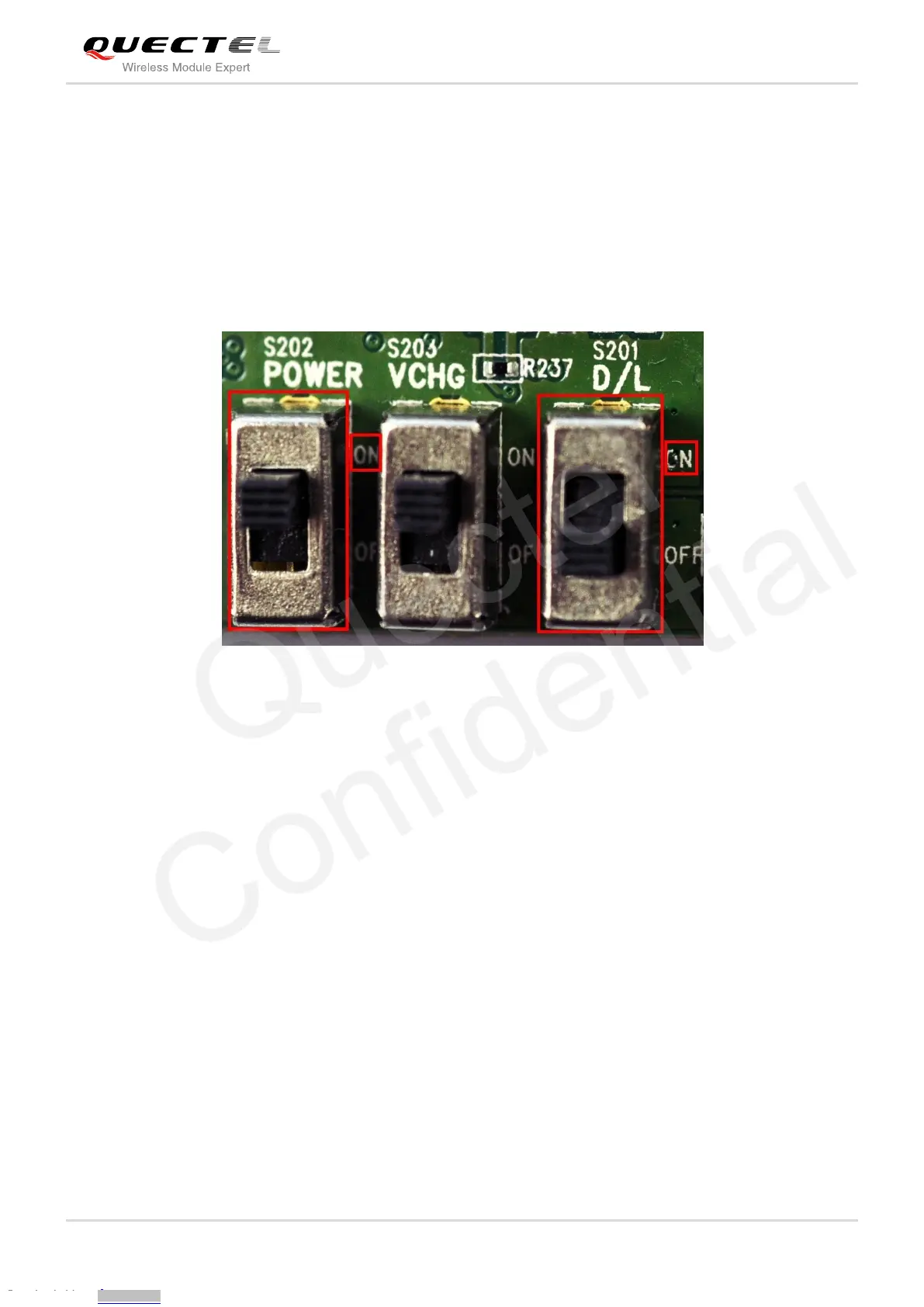

Figure 18: Switches State for Firmware Download
5.4. Turn Off
5.5. Emergency Off
Press the EMERG_OFF button for more than 0.1 second, the module will be shut down immediately.
After that, the module can be restarted by pressing the PWRKEY button. Please pay attention that
this operation is harmful to the whole module system and should only be done in emergency such as
failing to turn off the module through the PWRKEY button.
Press the PWRKEY button less than 1 second, the module will be turned off.
