GSM /GPRS Module
M10 EVB User Guide
M10_EVB_User_Guide Confidential / Released 22 / 31
3.9.3. CON102

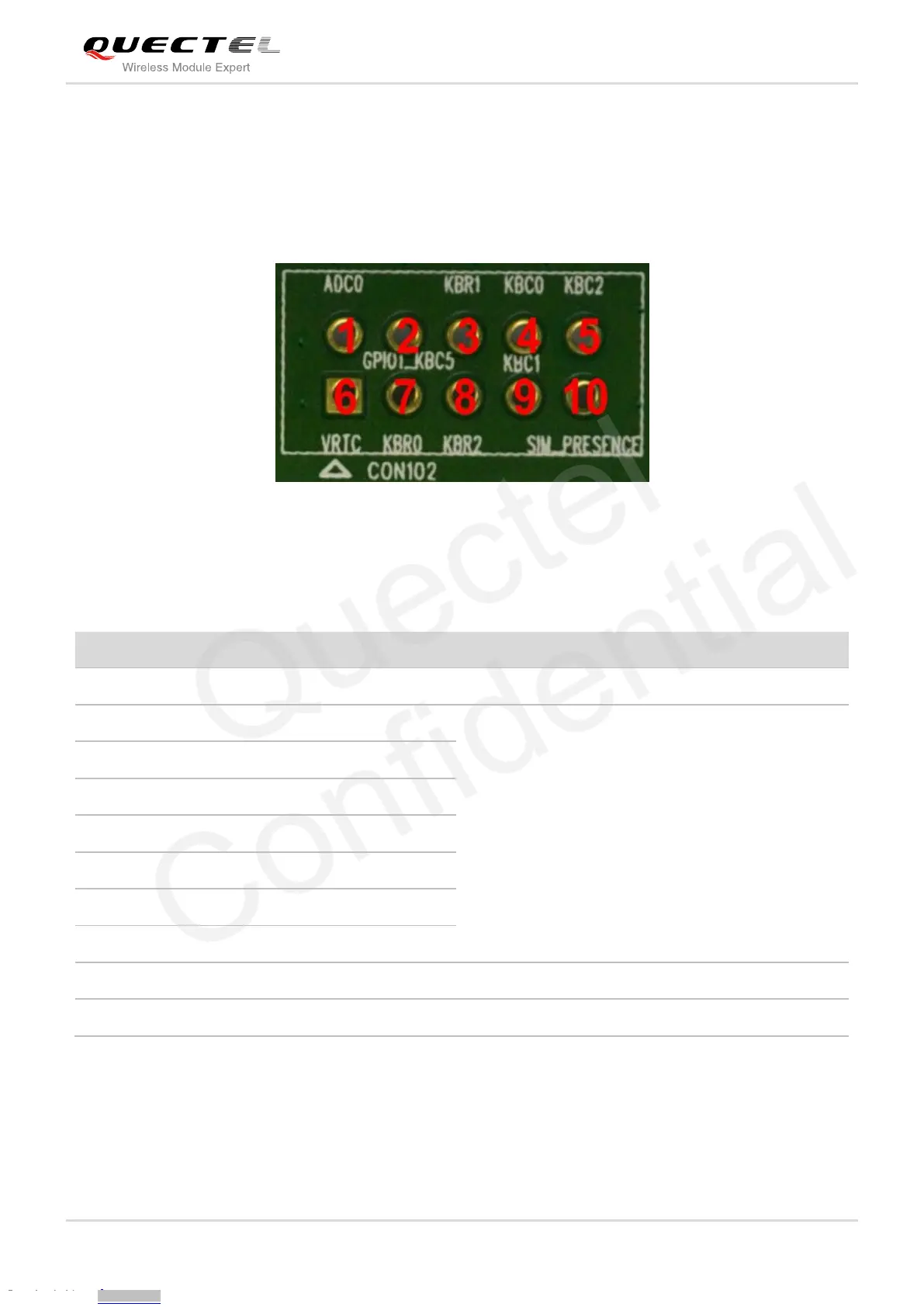

Figure 14: CON102 points
Table 12: Pins of CON102
Pin
Signal
I/O
Description
1
ADC0
I
Analog to digital converter
2
GPIO101_KBC5
I/O
Keyboard interface
3
KBR1
O
4
KBC0
I
5
KBC2
I
7
KBR0
O
8
KBR2
O
9
KBC1
I
6
VRTC
I/O
RTC supply
10
SIM_PRESENCE
I
SIM card detection
