3.9.5. CON501

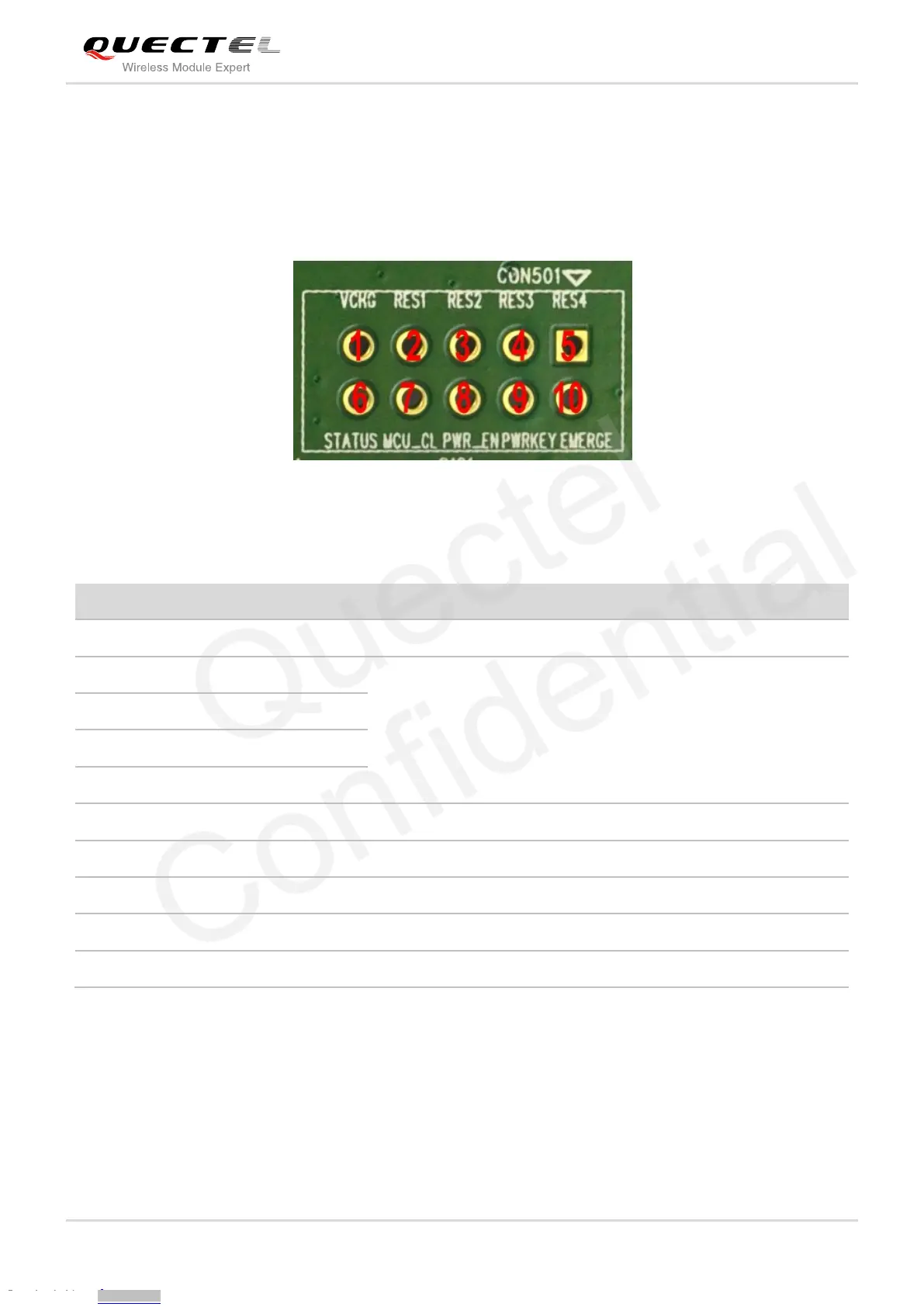

Figure 16: CON501 points
Table 14: Pins of CON401
Pin
Signal
I/O
Description
1
VCHG
I
Voltage input for the charging circuit
2
RES1
I
Reserved
3
RES2
4
RES3
5
RES4
6
STATUS
O
Module operating status
7
MCU_CL
O
Reserved
8
PWR_EN
O
Power enable Control
9
PWRKEY
I
Turn on/off the module
10
EMERGE
I
Shut down the module in emergency.
