GSM /GPRS Module
M10 EVB User Guide
M10_EVB_User_Guide Confidential / Released 21 / 31
3.9.2. CON101

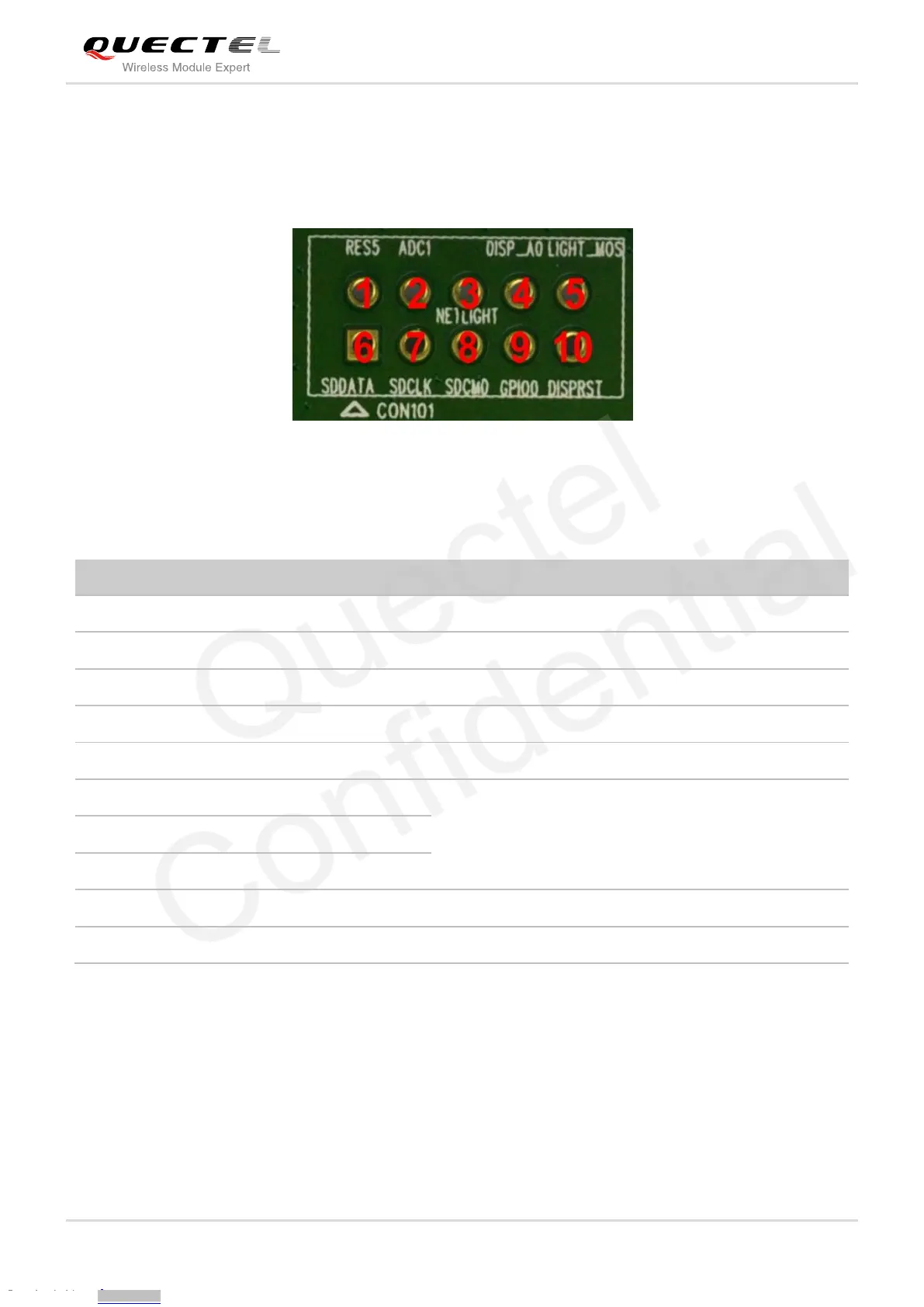

Figure 13: CON101 points
Table 11: Pins of CON101
Pin
Signal
I/O
Description
1
RES5
Not used
2
ADC1
Not used
3
NETLIGHT
O
NETLIGHT driving output
4
DISP_A0
Reserved
5
LIGHT_MOS
O
Reserved
6
SDDATA
I/O
SD card interface
7
SDCLK
O
8
SDCMD
O
9
GPIO0
I/O
General purpose input/output Port
10
DISPRST
Reserved
Quectel
Confidential
