Quectel SC200E Series User Manual

Smart Module Series
SC200E_Series_Hardware_Design 81 / 115

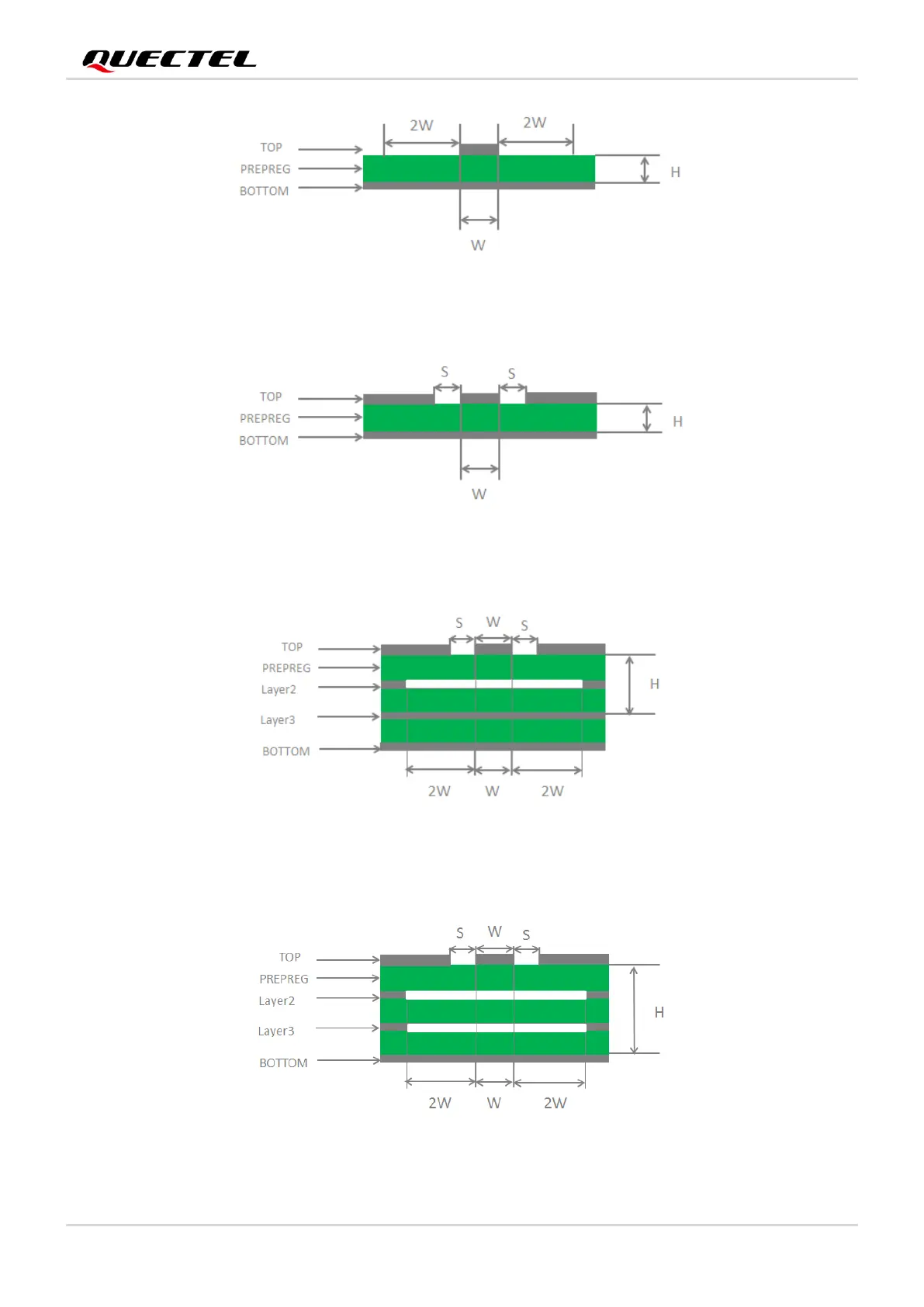

Figure 33: Microstrip Design on a 2-layer PCB
Figure 34: Coplanar Waveguide Design on a 2-layer PCB
Figure 35: Coplanar Waveguide Design on a 4-layer PCB (Layer 3 as Reference Ground)
Figure 36: Coplanar Waveguide Design on a 4-layer PCB (Layer 4 as Reference Ground)
