Step 5: Back fitting off to desired position. Do not
turn fitting more than one turn.

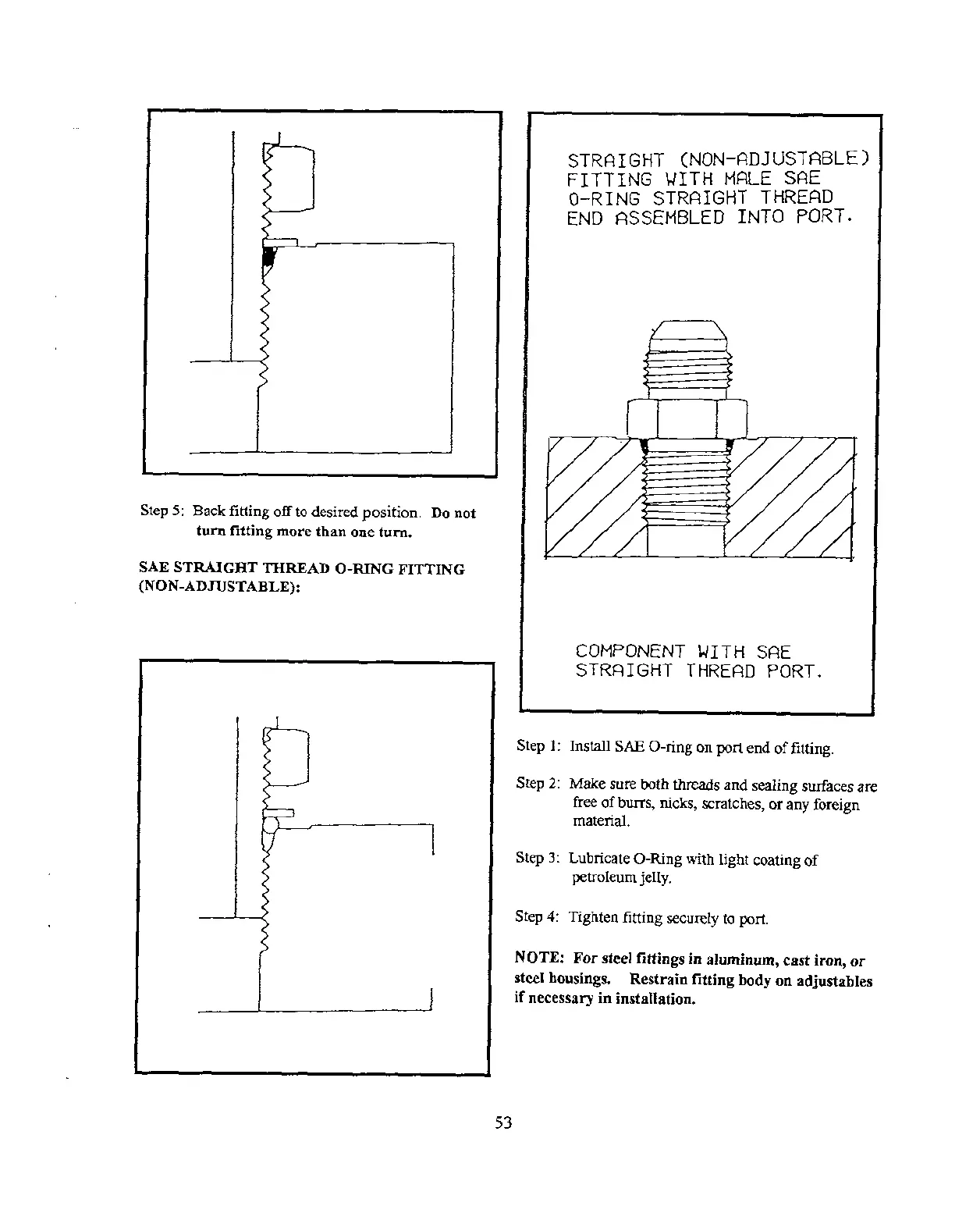

SAE STRAIGHT THREAD O-RING FITTING
(NON-ADJUSTABLE):
STRRIGHT (NON-RDJUST9BLE )
FITTING WITH M9LE SRE
O-RING STRflIGHT THREF7D
END dissembled INTO PORT-
1
I
COMPONENT WITH SRE
STRRIGHT THRERD PORT.
Stepl: Install SAEO-ringonpofi endoffitting.
Step 2: Make sure both threads and sealing surfaces are
free of burrs, nicks, scratches, or any foreign
material.
Step 3: Lubricate O-Ring with light coating of
petroleum jelly.
Step 4: Tighten fitting securely to port.
NOTE: For steel
fittings in aluminum, cast iron, or
steel housings.
Restrain fitting body onadjustables
if necessary in installation.
53
