Section IV - Operating Procedures
18 Quincy Compressor-QSI
®

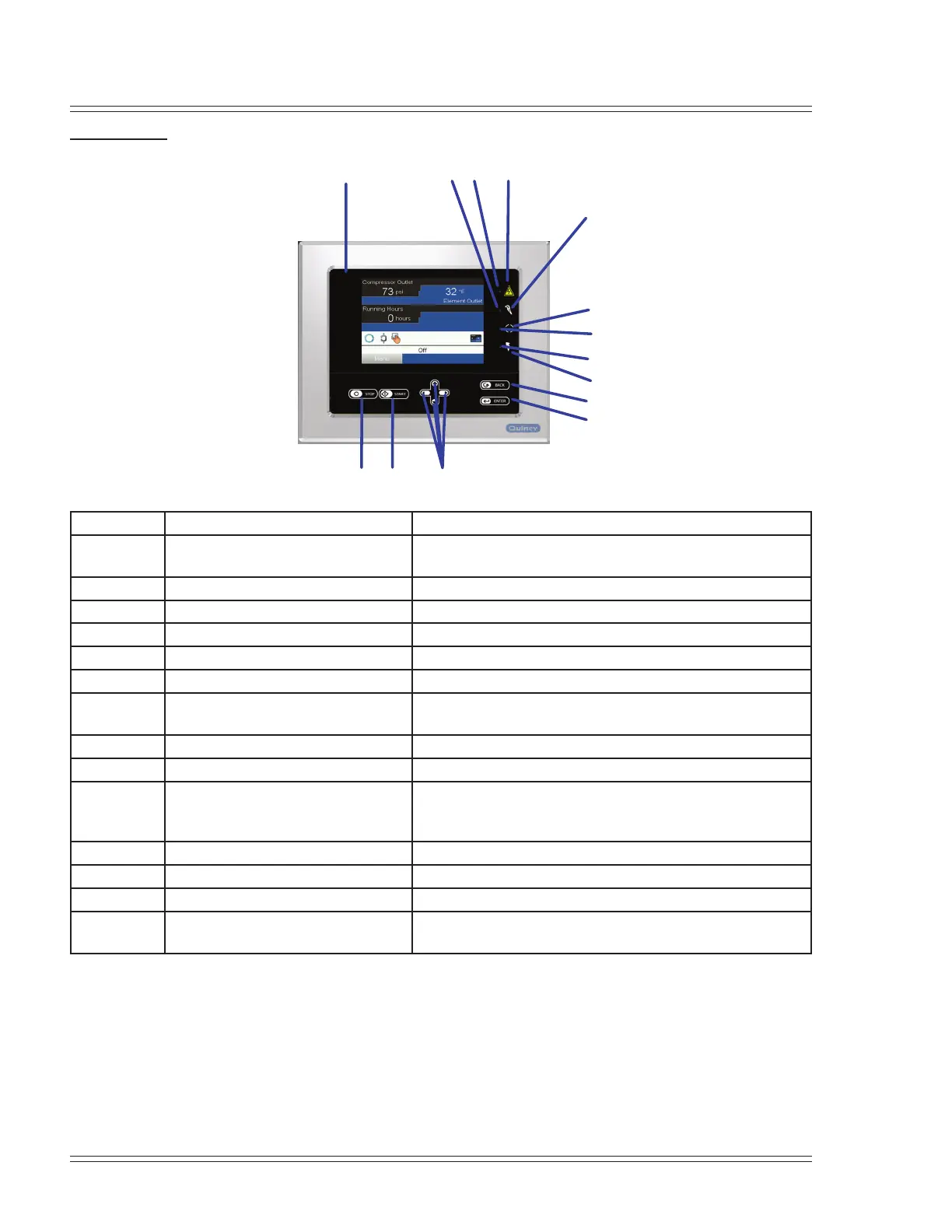

Control panel
Parts and functions
Reference Designation Function
1 Display Shows the compressor operating condition and a number of
2 Service LED Lights up if service is needed
3 General alarm LED Flashes if a shut-down warning condition exists
4 Pictograph General alarm
5 Pictograph Service
6 Pictograph Automatic operation
7 Automatic operation LED Indicates that the regulator is automatically controlling the
8 Voltage on LED
9 Pictograph Voltage on
10 Enter key
Only the parameters followed by an arrow pointing to the
11 Back key To go to previous screen or to end the current action
12 Scroll keys
13 Stop button
14 Start button
5
6
7
14
12
8
9
11
10
