12.5 Service and Maintenance
The POS Concerto / QTouch
2
do not contain any components, which can be serviced or repaired
by the user. Please have all maintenance performed by a qualified QUORION dealer.
Unauthorized manipulations may lead to a loss of warranty.
12.6 Assembling of the Stand of POS QTouch2
1. The QTouch
2
is delivered with a metal stand, which allows adjusting the tilt angle of the screen
from 0 to 60 degrees without steps.
2. You will find the stand at the bottom of the QTouch
2
box below the ground paperboard.
3. To assemble put the QTouch
2
with the front side at a firm horizontal surface. Take care, not to
scratch the screen! Now place the stand at the bottom side of the QTouch
2

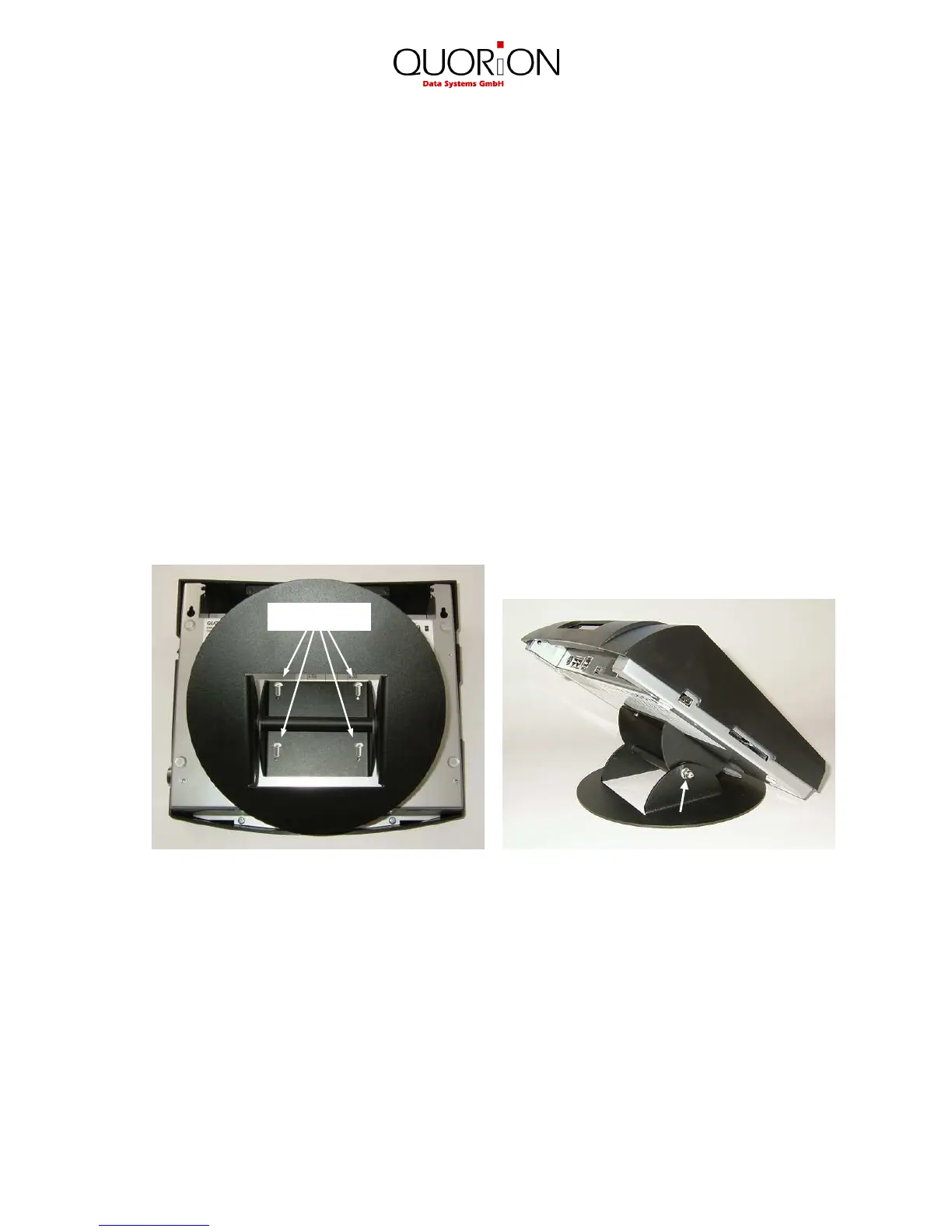

housing as shown
in the picture and fasten it with four screws M3 to the prepared holes.
4. Turn around the system and put it on the stand. The friction of the swivel joint is preset by
factory. You can turn the screen to any position, it will hold without fixing. If necessary you may
adjust the friction with a 10’ wrench at the horizontal screw.
4 x screw M3
