RADWIN2000D+UserManual Release3.6.00 7‐15

Management Chapter7

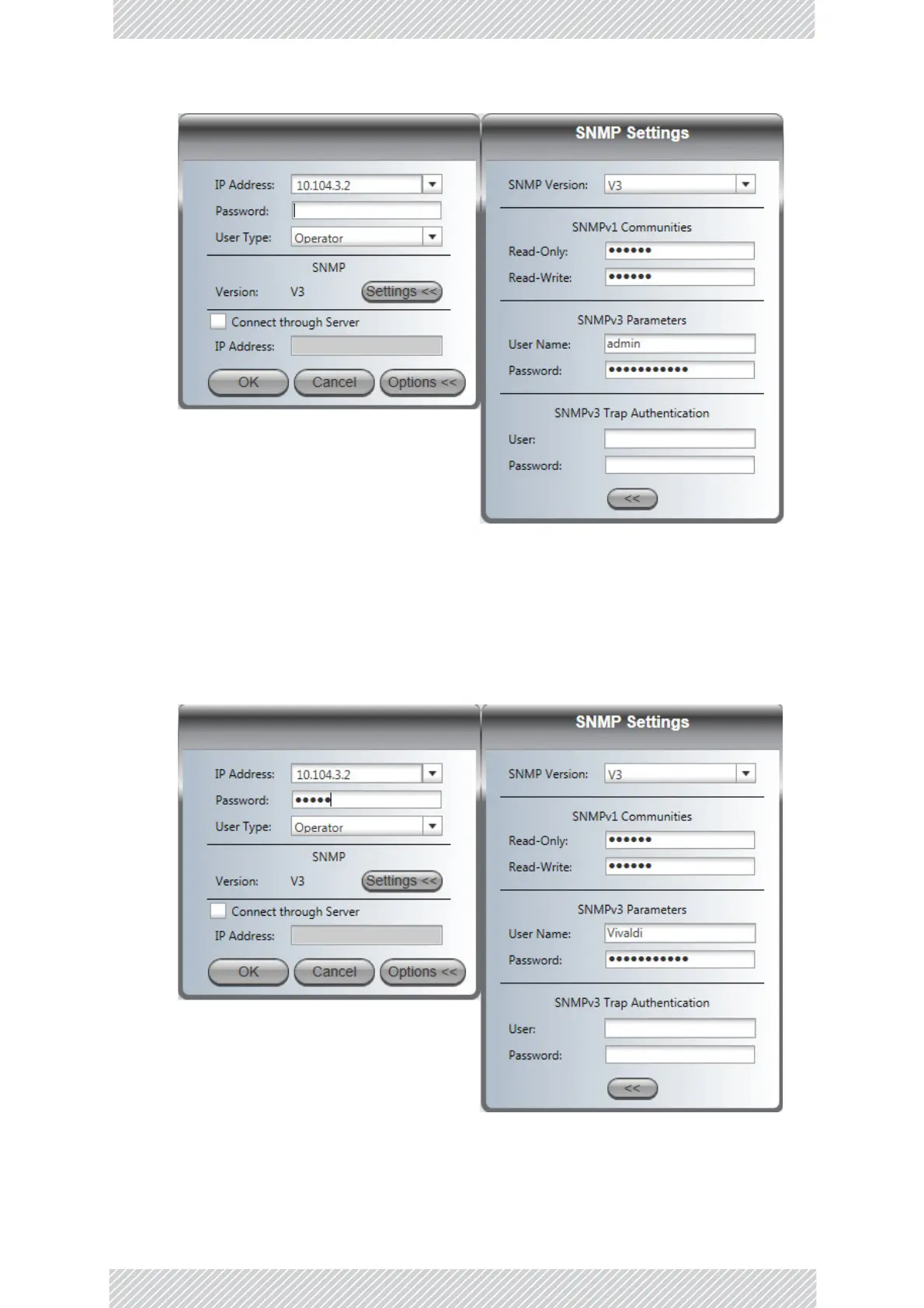

Figure7‐8:DefaultSNMPlog‐ondialog

2.Intherighthandwindow,entertheusername(Vivaldi)andpassword.

3.ForaReadWriteprofileuser,youmaylogonasanyusertype(Observer,Operator,

Installer).Forexample,logonVivaldiasOperator.SinceVivaldibelongstotheRead

Writeprofile,inthelefthandwindow,useadminforthePasswordandleaveUser

Typeasis.(Ifnecessary,youcanusewirelessandInstaller,respectively.)

Inthemainwindowweseetheusernameinthetitlebar:
