Warning
Warning
For all BreadCrumb models, for installations that will experience vibration or shock, all antennas should
For all BreadCrumb models, for installations that will experience vibration or shock, all antennas should
be externally mounted and attached using cables. Low loss RF cable, such as LMR-400, is recommended
be externally mounted and attached using cables. Low loss RF cable, such as LMR-400, is recommended
for cable-attached antennas.
for cable-attached antennas.
Warning
Warning
If a radio port is not required for a given application, the port should be disabled in BC|Commander and
If a radio port is not required for a given application, the port should be disabled in BC|Commander and
a 50 Ohm terminator should be installed.
a 50 Ohm terminator should be installed.
DFS Additional Antenna Separation
DFS Additional Antenna Separation
For 5 GHz transceivers using channels that require DFS radar detection, it is recommended to mount
For 5 GHz transceivers using channels that require DFS radar detection, it is recommended to mount
each antenna for a DFS channel at least 2 feet from any other 5 GHz transceiver’s antenna.
each antenna for a DFS channel at least 2 feet from any other 5 GHz transceiver’s antenna.

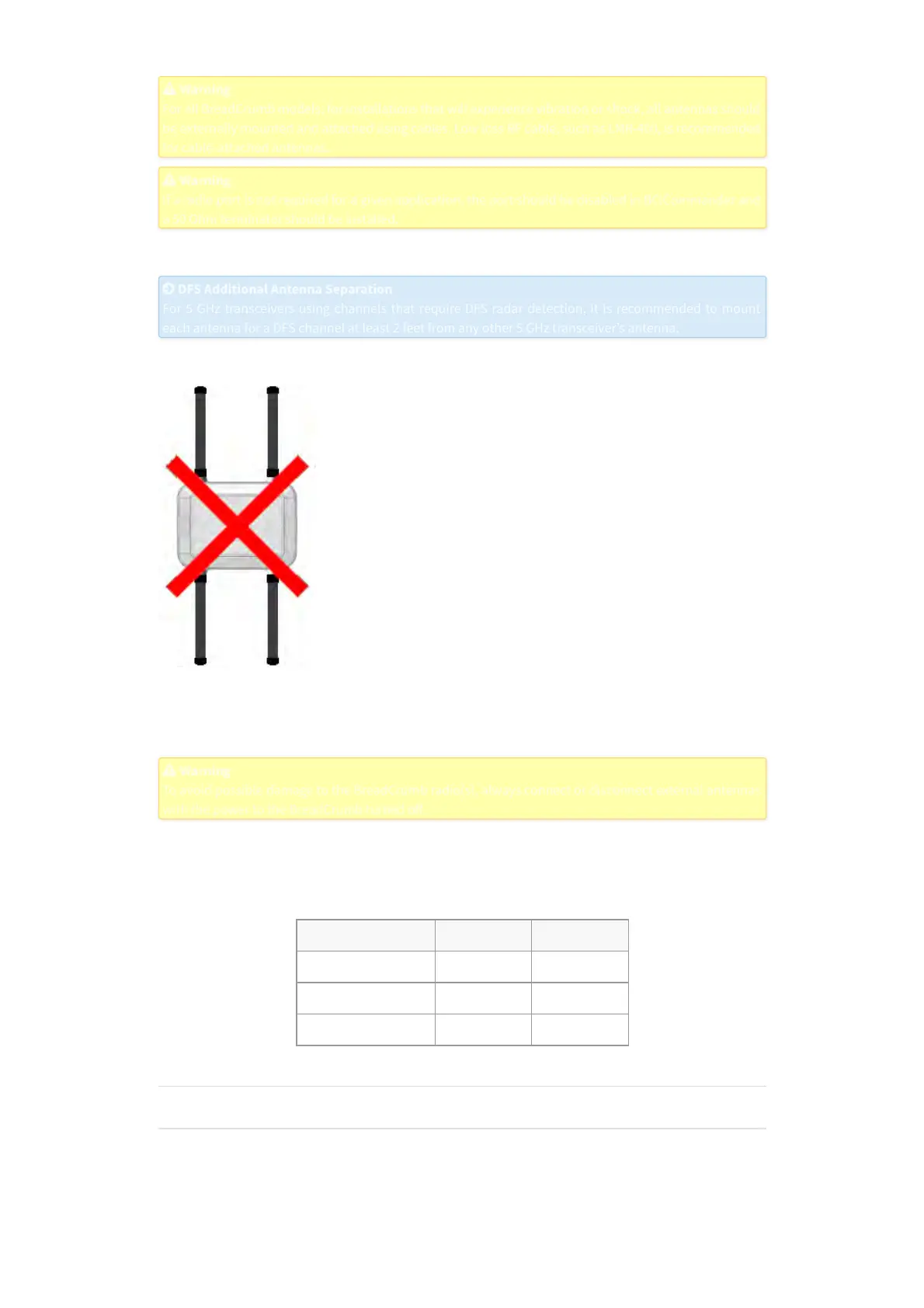

Figure: Incorrect Antenna Placement
Most of Rajant’s standard antennas are characterized by high-gain and, therefore, small vertical
beamwidth. Antennas in fixed locations should be installed plumb and at the same elevation so that
BreadCrumbs using these antennas will see each other without a significant loss of signal strength.
Warning
Warning
To avoid possible damage to the BreadCrumb radio(s), always connect or disconnect external antennas
To avoid possible damage to the BreadCrumb radio(s), always connect or disconnect external antennas
with the power to the BreadCrumb turned o
ff.
with the power to the BreadCrumb turned off.
The following table lists the radio band and antenna port(s) for the BreadCrumb ES1 model. This informa-
tion is also available in the Details panel in BC|Commander.
Table: BreadCrumb ES1 Radios and Antenna Ports
Model Number wlan0 wlan1
ES1-5050CS-2450R 2.4 GHz: A+B 5 GHz: C+D
ES1-5050CS-5050CS 4.9 GHz: A+B 4.9 GHz: C+D
ES1-5050CS-5050CS 5 GHz: A+B 5 GHz: C+D
2.4 Power and Ethernet
2.4.1 Ethernet Port ETH0
The BreadCrumb ES1 has one RJ45 Ethernet port (ETH0). On the BreadCrumb ES1, port ETH0 supports 10
Base-T, 100 Base-TX or 1000 Base-T configurations for Ethernet data and supports both Mode A and Mode
B for Passive Power over Ethernet (Passive PoE). Therefore, ETH0 acts as a dual function Ethernet and DC
power input port for the BreadCrumb ES1.
