4 Instrument Tour

4.1 Front Panel

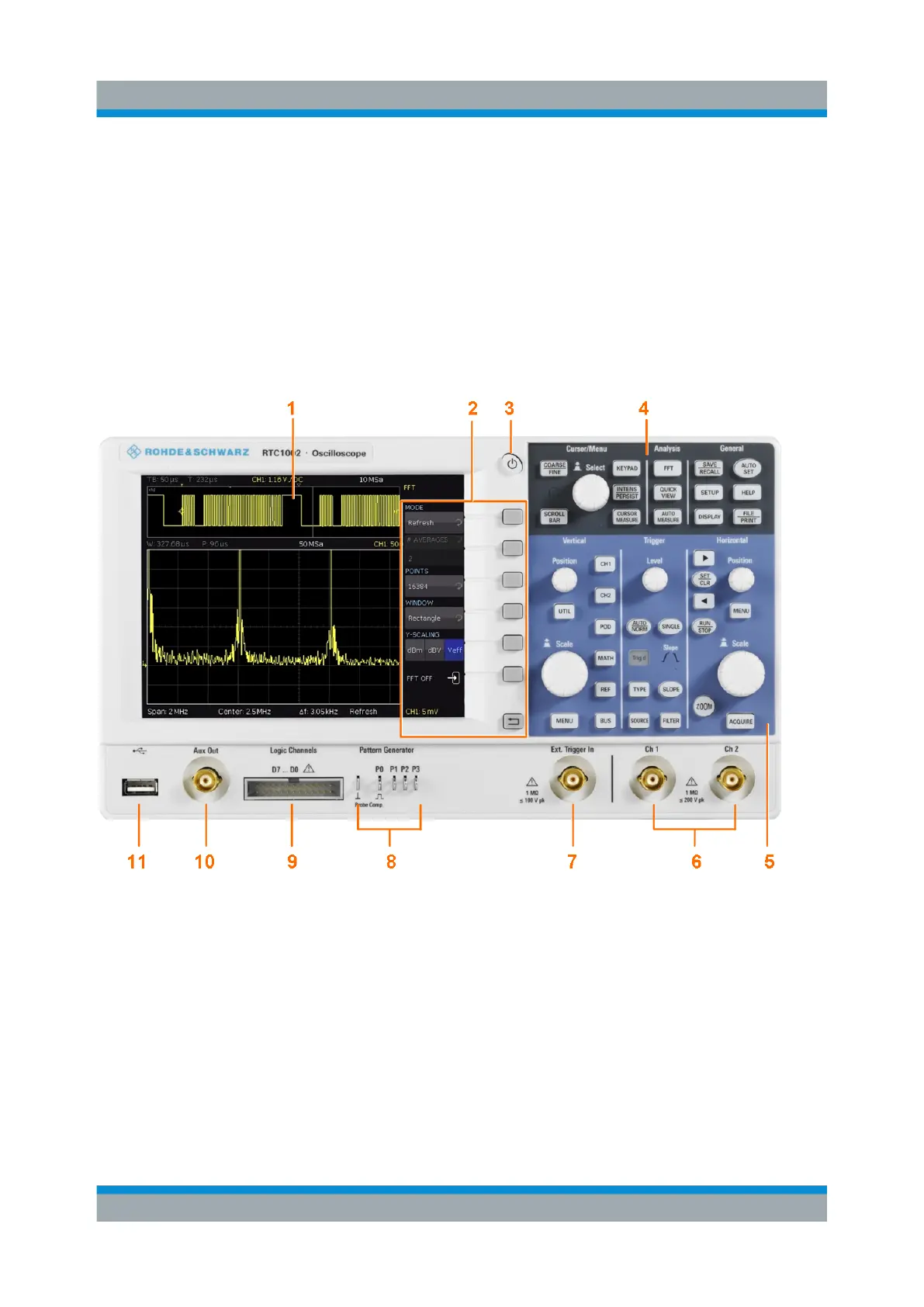

Figure 4-1 shows the front panel of the R&S RTC1000. The function keys are

grouped in functional blocks to the right of the display.

Figure 4-1: Front view of the R&S

RTC1000

1 = Touchscreen

2 = Softkeys and menu

3 = ON/OFF key

4 = Cursor/Menu, Analyze and General sections

5 = Vertical, Trigger and Horizontal sections

6 = BNC connectors of the analog channel inputs

7 = BNC connector of the external trigger input

8 = Pattern generator output (option R&S RTC-B6) and probe adjustment output

9 = Connector for the logic probe (option R&S RTC-B1)

10 = Multi-purpose BNC connector AUX OUT

11 = USB connector

Front Panel
