RG27/35/37 Operation • Service • Maintenance
28
Operation
Operating the Machine

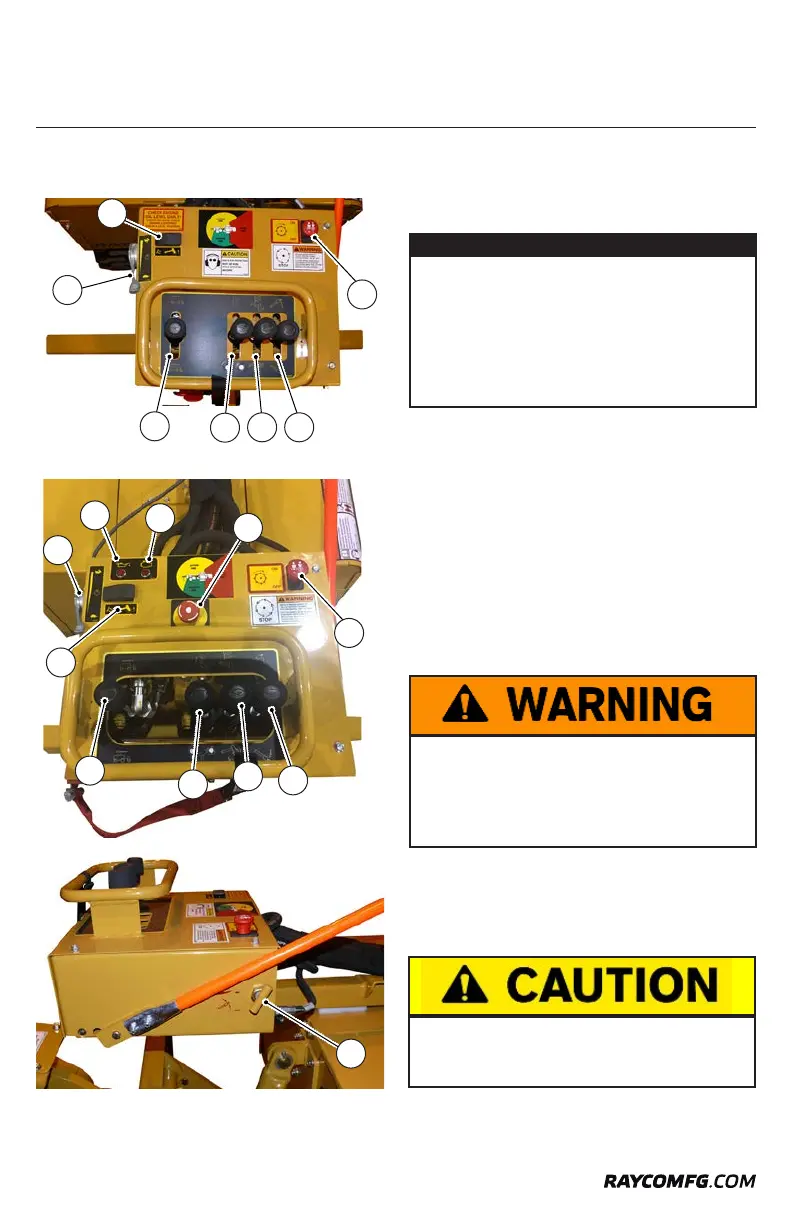

Machine Movement - RG27/35
Move Forward/Reverse
(1) Move machine Towards/Away from stump with lever
Steer Right/Left
(2) Steer machine Left/Right with lever
(3) Blade/Boom Movement - Raise and Lower
(4) Cutter Boom Swing - Left or Right
(5) Blade/Boom Switch - select which tool attachment the
levers will control.
(6) Engine Throttle
(7) Engine Oil Pressure Warning - If this light illuminates,
the engine will shut down. Service engine immediately.
(RG37 Only)
(8) Engine Warning - If this light illuminates, the engine will
shut down. Check engine manual for troubleshooting
and service engine immediately. (RG37 Only)
(9) Emergency Shut Down (RG37Only)
(10) Cutter Wheel On/Off. - Pull the switch up after the
engine is running and the safety tether is lowered in its
correct position.
NOTE: The cutter wheel will not engage if the safety tether
is not in its proper location.
NOTICE
The control levers will re-center themselves in
a neutral position when released. No movement
should occur, if you observe any movement when
controls are in nuetral position, please contact
a service technician immediately and follow the
tag-out procedure outlined in the safety section of
this manual.
1
2
3 4
5
10
7
ROTATION DOES NOT STOP INSTANTLY. A
ROTATING CUTTING WHEEL IS VERY DANGEROUS!
STAND AT THE CONTROLS AND WATCH THE
CUTTING WHEEL UNTIL COMES TO A COMPLETE
STOP BEFORE DOING ANYTHING ELSE
1
2
3
4
5
10
7
8
9
6
Machine Movement - RG37
6
THE OPERATOR SHOULD NEVER ATTEMPT TO
LEAVE THE OPERATOR STATION WHILE THE
CUTTER WHEEL IS ENGANGED.
