Rayco Super Jr RG27 User Manual

RG27/35/37 Operation • Service • Maintenance
54

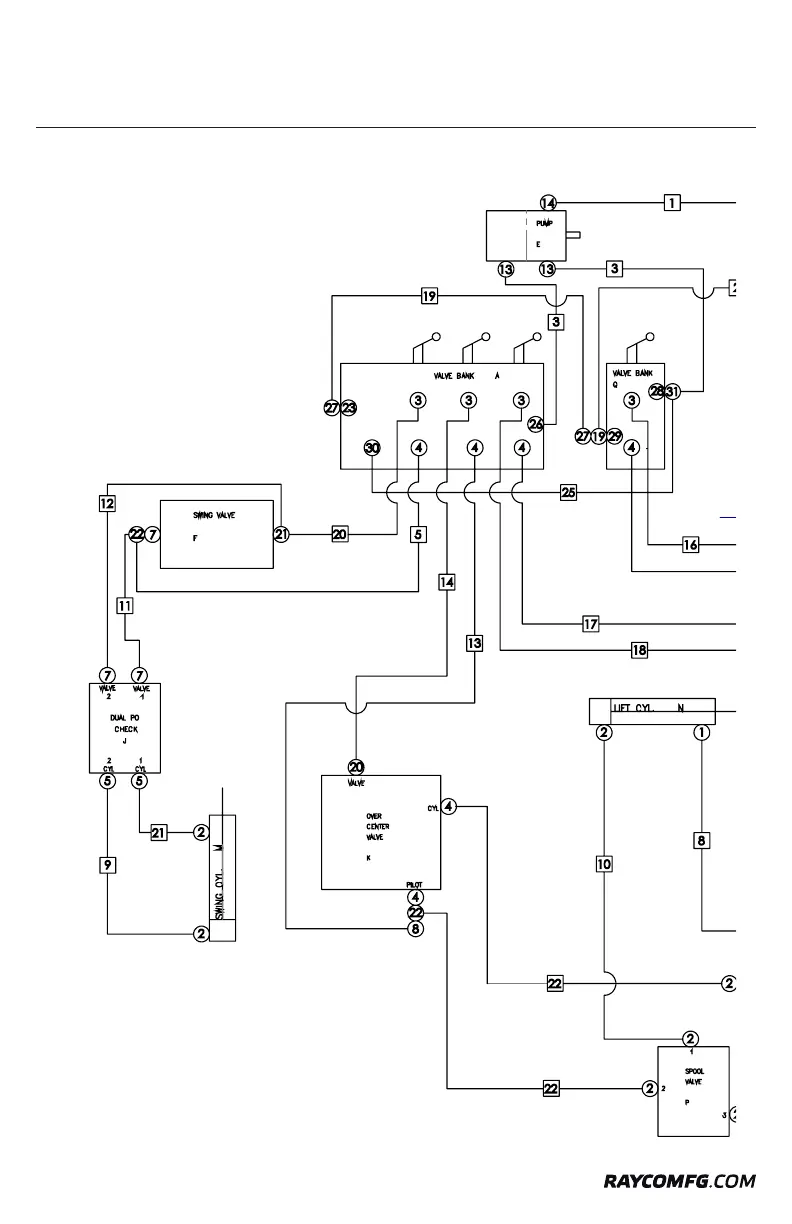

Hydraulic Schematic - RG37 (802846)
RF
T
T
P P
A 1 802819 4 BANK VALVE(RG35)
B 1 12579 HYDRAULIC TANK
C 1 12575 FUEL TANK
D 1 761906 HYDRAULIC FILTER ASM.
E 1 764215 PUMP - TANDEM .31/.31
F 1 738008 VALVE - SWING CONTROL
G 1 801152 DUAL COUNTER-BALANCE W/PILOT PORT
H 1 802526 MOTOR DRIVE/BRAKE PARKER
J 1 738011 VALVE-LOCK SWING
K 1 1200015 OVER CENTER VALVE
L 1 801738 CYLINDER-STEER
M 1 29193 CYLINDER-SWING
N 1 802488 CYLINDER-LIFT
P 3 1200105 VALVE-SPOOL
Q 1 802228 VALVE-1 SPOOL MOTOR
R 1 24237 CYLINDER-BLADE
ITEM QTY. PART # DESCRIPTION
