Rayco Super Jr RG27 User Manual

RG27/35/37 Operation • Service • Maintenance
52

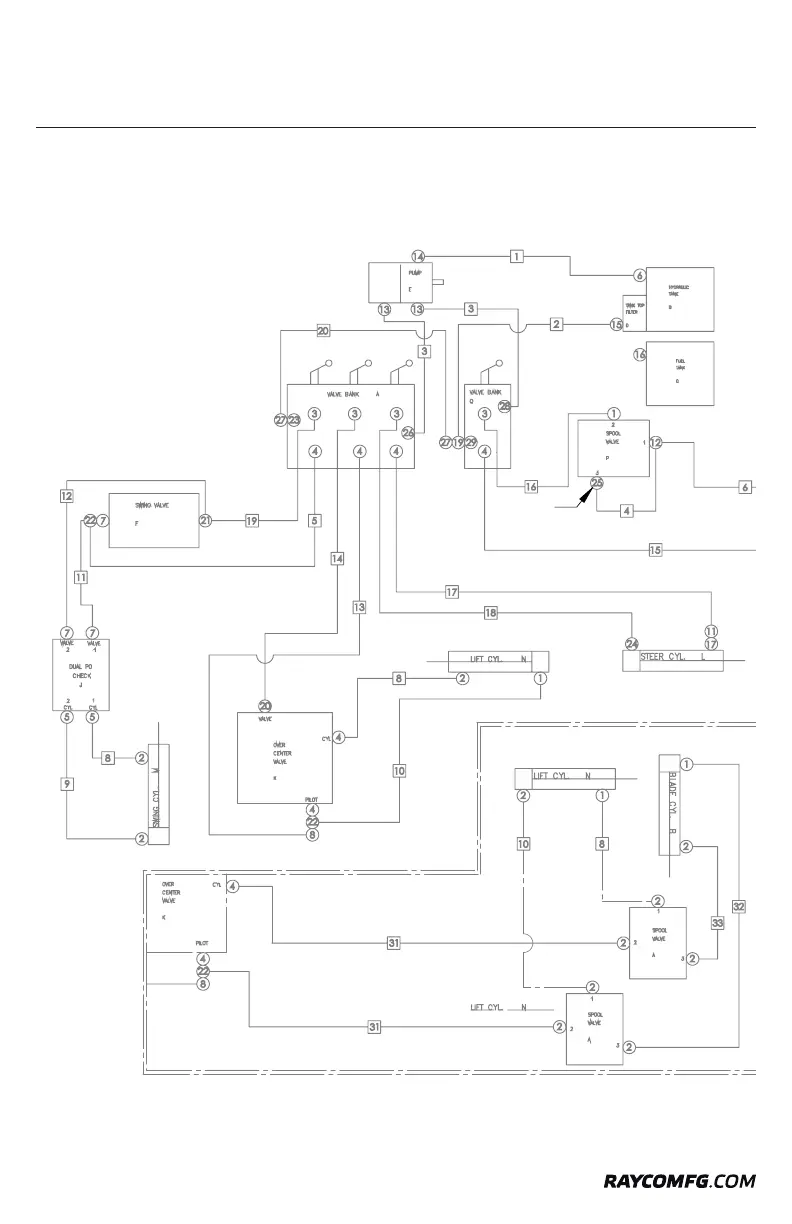

Hydraulic Schematic - RG27 (802591-D)
OVER CENTER VALVE (K) + FITTINGS, LIFT CYLINDER (N) + FITTINGS,
AND HOSES 8 AND 10 ARE FROM HOSE KIT 802591
RF
T
T
P P
RG27 BLADE OPTION:
802597 - HYD. KIT
STANDARD ON RG35
A 1 738004 3 BANK VALVE
B 1 12579 HYDRAULIC TANK
C 1 12575 FUEL TANK
D 1 761906 HYDRAULIC FILTER ASM.
E 1 760115 PUMP - HYDRAULIC
F 1 738008 VALVE - SWING CONTROL
G 1 801152 DUAL COUNTER-BALANCE W/PILOT PORT
H 1 802526 MOTOR DRIVE/BRAKE PARKER
J 1 738011 VALVE-LOCK SWING
K 1 1200015 OVER CENTER VALVE
L 1 801738 CYLINDER-STEER
M 1 29193 CYLINDER-SWING
N 1 802488 CYLINDER-LIFT
P 1 801256 VALVE-SPOOL
Q 1 802228 VALVE-1 SPOOL MOTOR
ITEM QTY. PART # DESCRIPTION
