30 A-Series display - Installation instructions
4.1 Unit dimensions

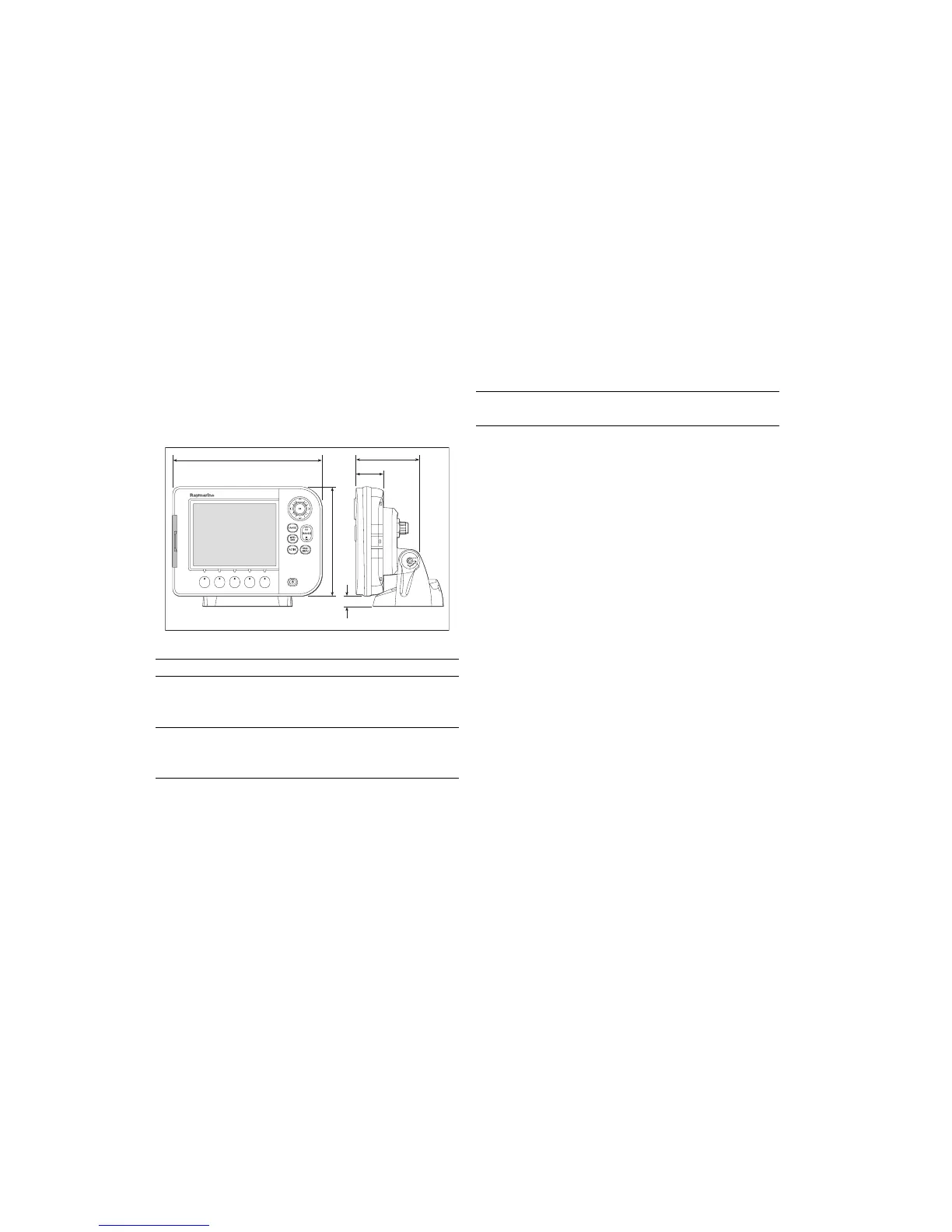

The dimensions for the A-Series Multifunction Displays are as
follows:
ABCDE
A50 / A50D
mm 200.14 142.14 42.60 97.73 30.13
inches 7.88 5.60 1.68 3.85 1.20
A57D
mm 226.64 158.64 42.60 97.73 21.88
inches 8.84 6.25 1.68 3.85 0.86
A70 / A70D
mm 233.14 170.64 42.60 97.73 15.88
D11005-1
A
D
C
B
E
inches 9.12 6.72 1.68 3.85 0.63
ABCDE

Raymarine A50 Specifications

General

Brand	Raymarine
Model	A50
Category	Monitor
Language	English
