Chapter 8: Technical Specification 53

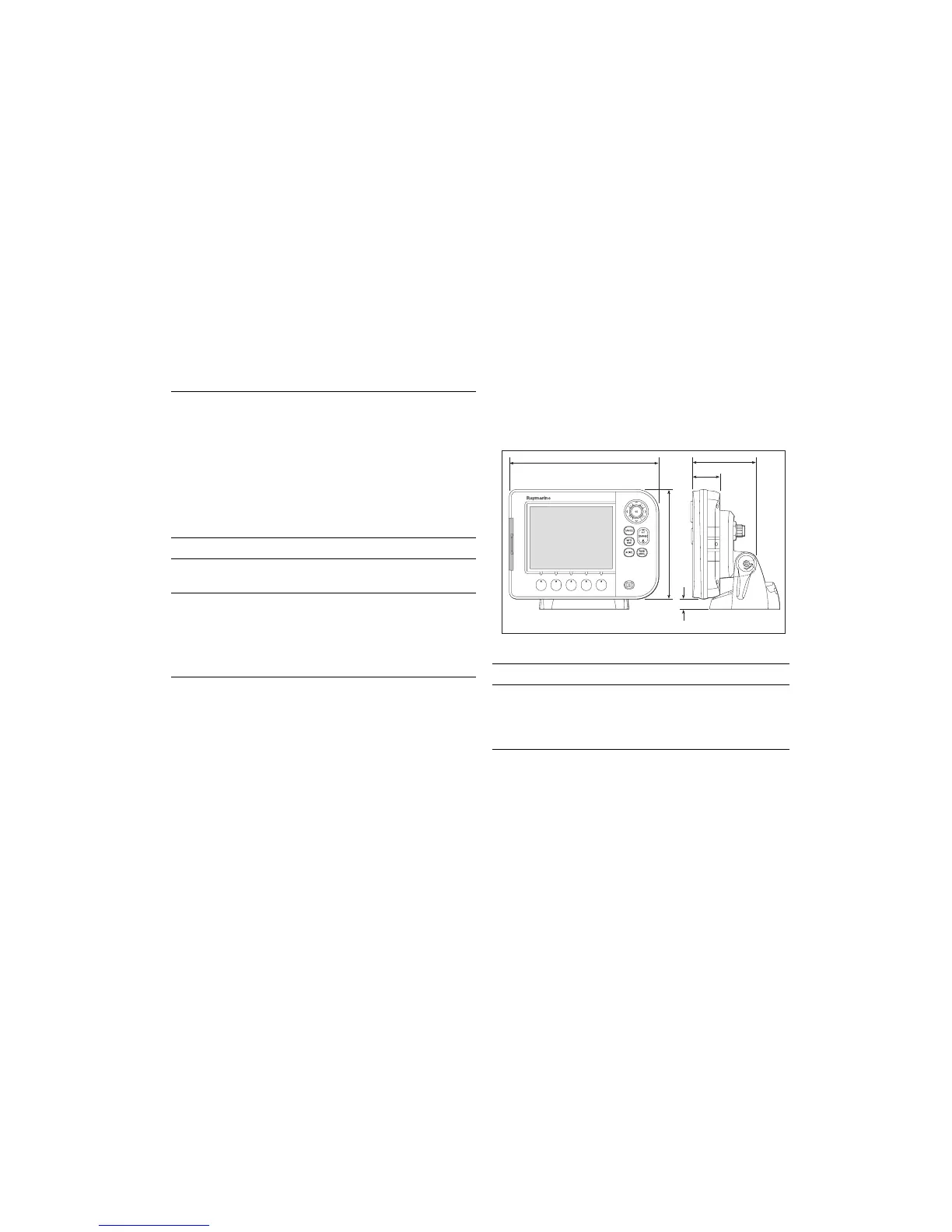

8.2 Unit dimensions
The dimensions for the A-Series Multifunction Displays are as
follows:
Sonar /
Transducer
D Saltwater: P58 transducer with 30 ft cable.
Sonar Frequency 200/50 KHz Saltwater
Transmit Power 500W - RMS Saltwater
Depth Range 1 foot to 600 feet, resolution
D Freshwater: P48 transducer with 25 ft cable
Sonar Frequency 200KHz Freshwater
Transmit Power 400W - RMS Freshwater
Depth Range 1 foot to 600 feet, resolution
Automatic selection
Cartography Navionics cartography for appropriate region.
Chart Modes Head Up, Course Up or North Up (selectable True or
Magnetic bearings) Relative or True Motion
CE approvals -
conforms to:
Standard applied Sections 9 and 10 of EN 60945 : 2002
EMC Compliance:
Europe 2004/108/EC (EMC)
Australia and New Zealand: C-Tick, Compliance Level 2
ABCDE
A50 / A50D
mm 200.14 142.14 42.60 97.73 30.13
inches 7.88 5.60 1.68 3.85 1.20
A57D
mm 226.64 158.64 42.60 97.73 21.88
inches 8.84 6.25 1.68 3.85 0.86
D11005-1
A
D
C
B
E
