Raymarine REALVISION 3D User Manual

•Cablesincluded:
–R
V-400:8m(26.2ft)attachedcable.
–RV-4xx(P/S):2m(6.5ft)attachedcable.
–An8m(26.2ft)extensioncable(A80477)anda‘Y’cable(A80478)isprovidedwhenordering
transducersasasplit-pair.
•WaterprooftoIPx6(surfacesexteriortohull,only),IPx7,IPx8.
2.4Requiredadditionalcomponents
Thisproductformspartofasystemofelectronicsandrequiresthefollowingadditionalcomponents
forfulloperation.
•CompatibleRealVision™3Dsonar-capabledevice.RefertoCompatibleRealVision™3Dproducts,
foralistofcompatibleproducts.
•Forlongercableruns,atransducerextensioncablewillalsoberequired.RefertoChapter9
Sparesandaccessories,forsuitablecables.
CompatibleRealVision™3Dproducts
ThetransducermustbeconnectedtoaRealVision™3Dsonar-capabledevice.Thefollowing
RealVision™3Dsonar-capableproductsarecompatiblewiththetransducer.

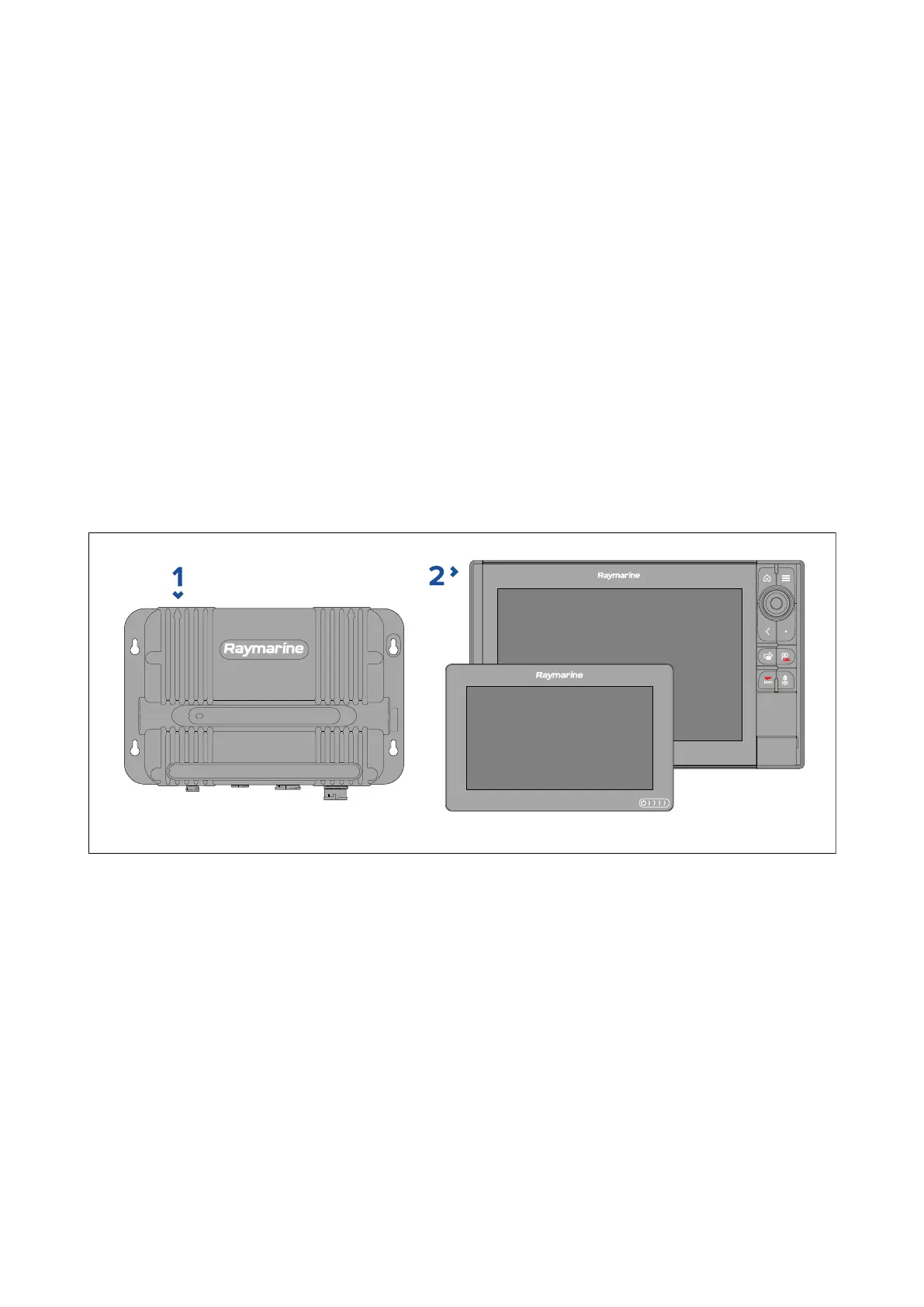

1.R VX1000externalRealVision™3Dsonarmodule(aLightHouse™3compatibleMFDisalso
required).
2.LightHouse™3compatibleMFDwithbuiltinRealVision™3Dsonarmodule(i.e.:Axiom,Axiom+
orAxiomProMFDs).
12

Raymarine REALVISION 3D Specifications

General

Brand	Raymarine
Model	REALVISION 3D
Category	Transducer
Language	English
