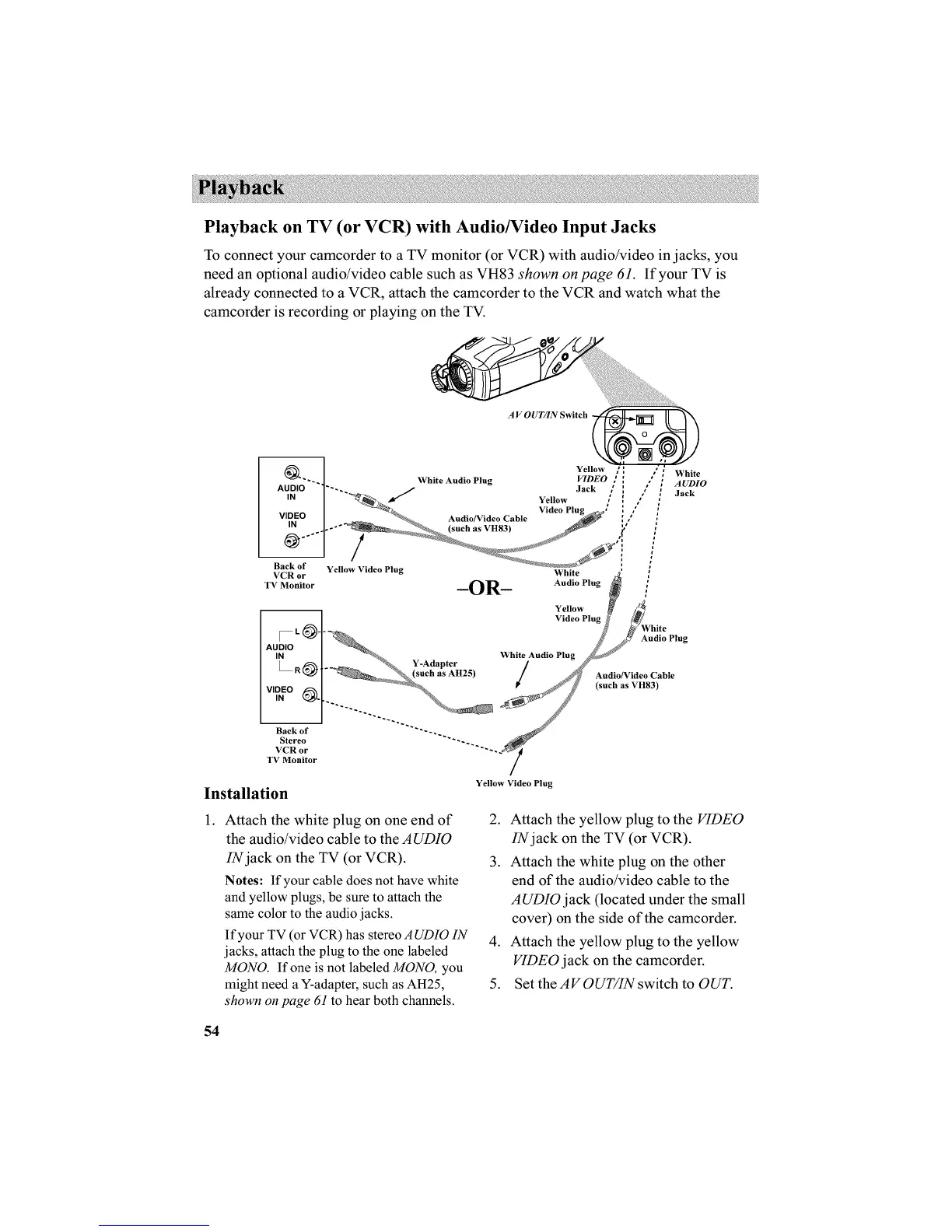

Playback on TV (or VCR) with Audio/Video Input Jacks
To connect your camcorder to a TV monitor (or VCR) with audio/video in jacks, you
need an optional audio/video cable such as VH83 shown on page 61. If your TV is
already connected to a VCR, attach the camcorder to the VCR and watch what the
camcorder is recording or playing on the TV.
AUDIO
IN
v,? o@.
Back of
Stereo
VCR or
TV Monitor
Installation
1.
Attach the white plug on one end of
the audio/video cable to the AUDIO
IN jack on the TV (or VCR).
Notes: If your cable does not have white
and yellow plugs, be sure to attach the
same color to the audio jacks.
If your TV (or VCR) has stereo A UDIO IN
jacks, attach the plug to the one labeled
MONO. If one is not labeled MONO, you
might need a Y-adapter, such as AH25,
shown on page 61 to hear both channels.
54
Yellow Video Plug
2. Attach the yellow plug to the VIDEO
IN jack on the TV (or VCR).
3. Attach the white plug on the other
end of the audio/video cable to the
AUDIO jack (located under the small
cover) on the side of the camcorder.
4. Attach the yellow plug to the yellow
VIDEO jack on the camcorder.
5. Set the A V OUT/IN switch to OUT.
To Next Page
