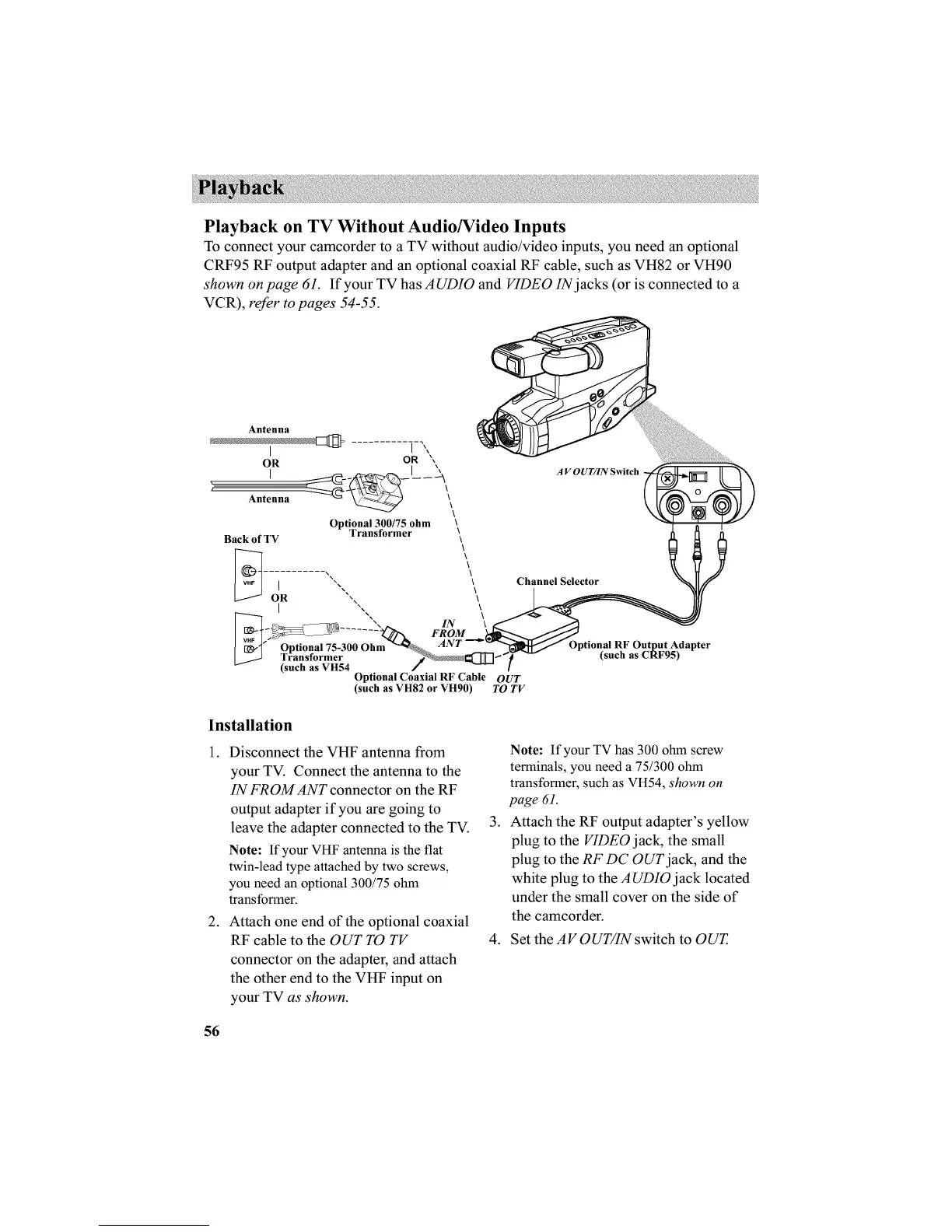

Playback onTV Without Audio/Video Inputs
To connect your camcorder to a TV without audio/video inputs, you need an optional
CRF95 RF output adapterand anoptional coaxial RF cable, such as VH82 or VH90
shown on page 61. If your TV has AUDIO and VIDEO IN jacks (or is connected to a
VCR), refer to pages 54-55.
Antenna
I I",
OR OR ',
I I___
Antenna \\
\
Optional 300/75 ohm
Transformer
Back of TV
OR
\
\
\
\
\
\
\
\ Channel Selector
\
\
\
Installation
1. Disconnect the VHF antenna from
your TV. Connect the antenna to the
IN FROMANT connector on the RF
output adapter if you are going to
leave the adapter connected to the TV.
Note: If your VHF antenna is the flat
twin-lead type attached by two screws,
you need an optional 300/75 ohm
transformer.
2. Attach one end of the optional coaxial
RF cable to the OUT TO TV
connector on the adapter, and attach
the other end to the VHF input on
your TV as shown.
.
Note: If your TV has 300 ohm screw
terminals, you need a 75/300 ohm
transformer, such as VH54, shown on
page 61.
Attach the RF output adapter's yellow
plug to the VIDEO jack, the small
plug to the RFDC OUT jack, and the
white plug to the AUDIO jack located
under the small cover on the side of
the camcorder.
4. Set the AVOUT/IN switch to OUT.
56
To Next Page
