EN-11

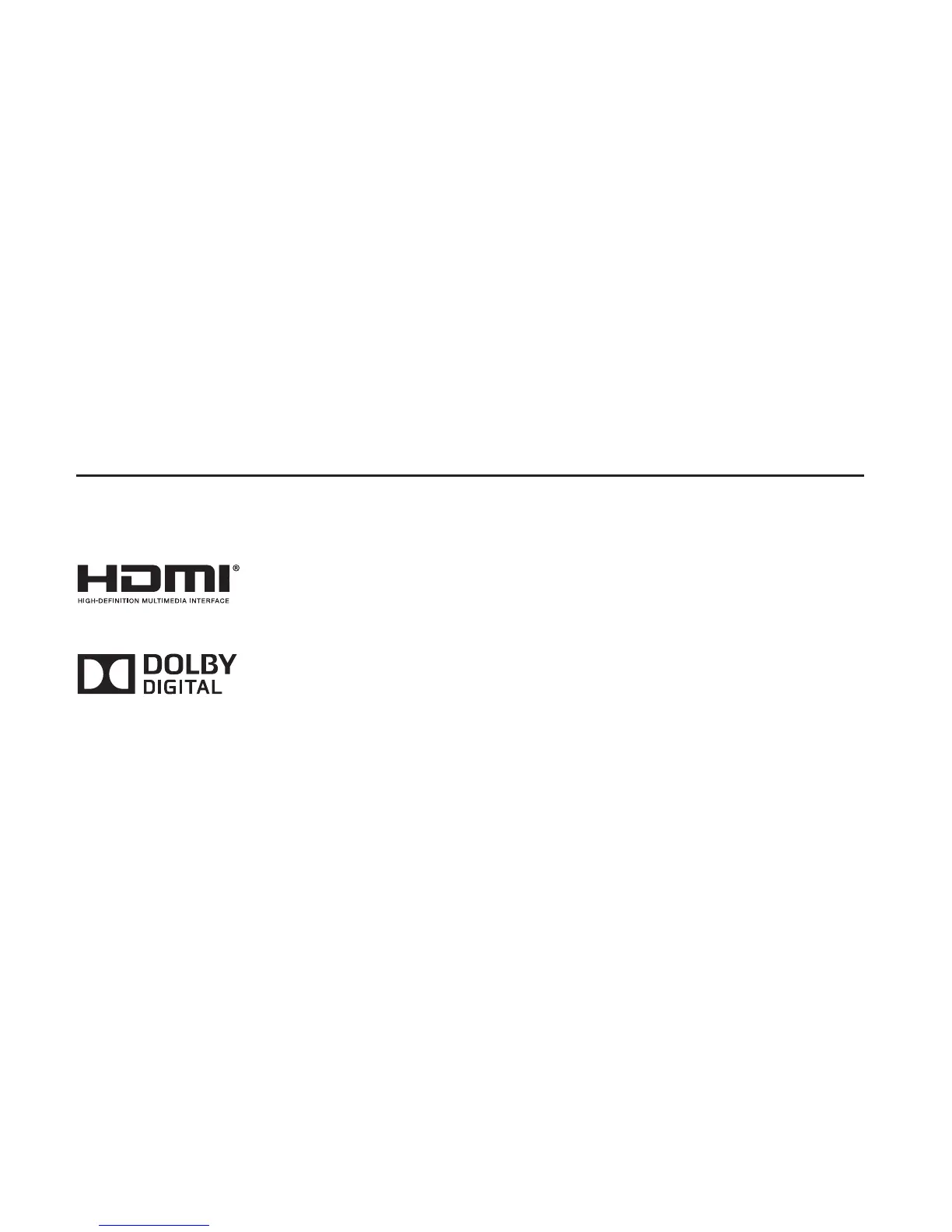

HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing, LLC

Manufactured under license from Dolby Laboratories.“Dolby” and the

double-D symbol are trade-marks of Dolby Laboratories.

Technical speciﬁcations

Power supply: AC 120V/60Hz

Powerconsumption: 8W(operating,HDmode)

 <1W(standby)

Remote reception distance: >8m from front

RFfreq.range: 57MHz–803MHz

RF channel range: CH2 – CH69

RFsensitivity: -83dBmto-5dBm

RF impedance: 75 ohms

Video system: NTSC

Video output: 1V peak-to-peak

Video output impedance: 75 ohms

Audio output impedance: 600 ohms

Speciﬁcations and external appearance are subject to change without notice.
