EN-3

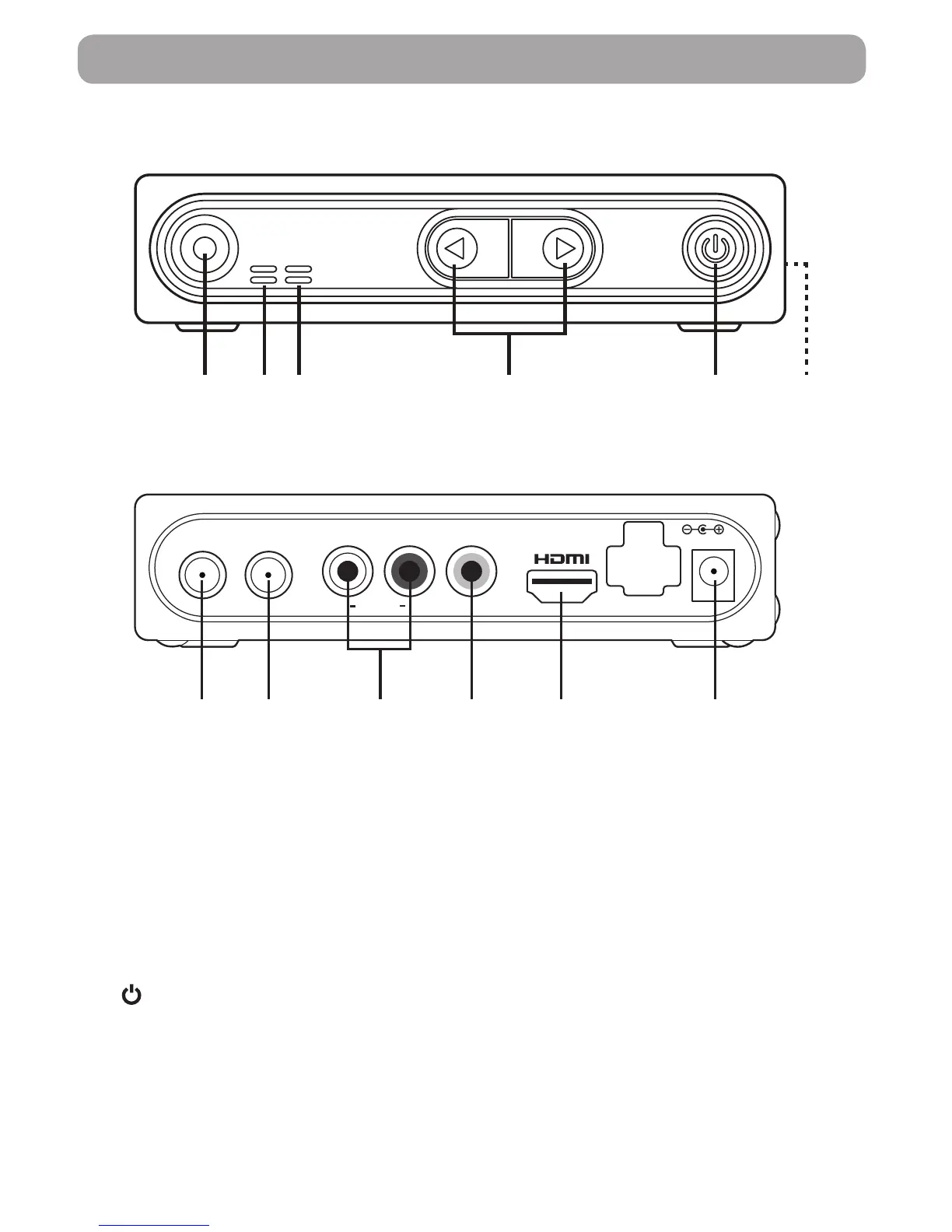

UNIT CONTROLS
Front View
1) Remote control receiver
2) Recorder indicator
3) LED indicator
Power on: Green
Standby: Red
4) CH+/CH-
Channel up/Channel down.
5) Power Button
Press to power on/off
the converter box.
6) USB PORT
7) Antenna In port
Connect to antenna.
1
42 3
5 6
DC IN 9V
VIDEO
OUTPUT
TO TV
ANTENNA
IN
LR
AUDIO
7 8 9 10
11
12
Rear View
8) Output to TV port
9) L-AUDIO-R port
Connect these terminals to analog
audio inputs of a TV set. You may also
connect these terminals to the L/R
inputs of a separate audio components.
10) Video port
If your TV or monitor has composite
Audio/Video cable, connect this jack to
the AV input jack on your TV or monitor
using an Audio/Video cable.
11) HDMI Port
12) DC IN port
