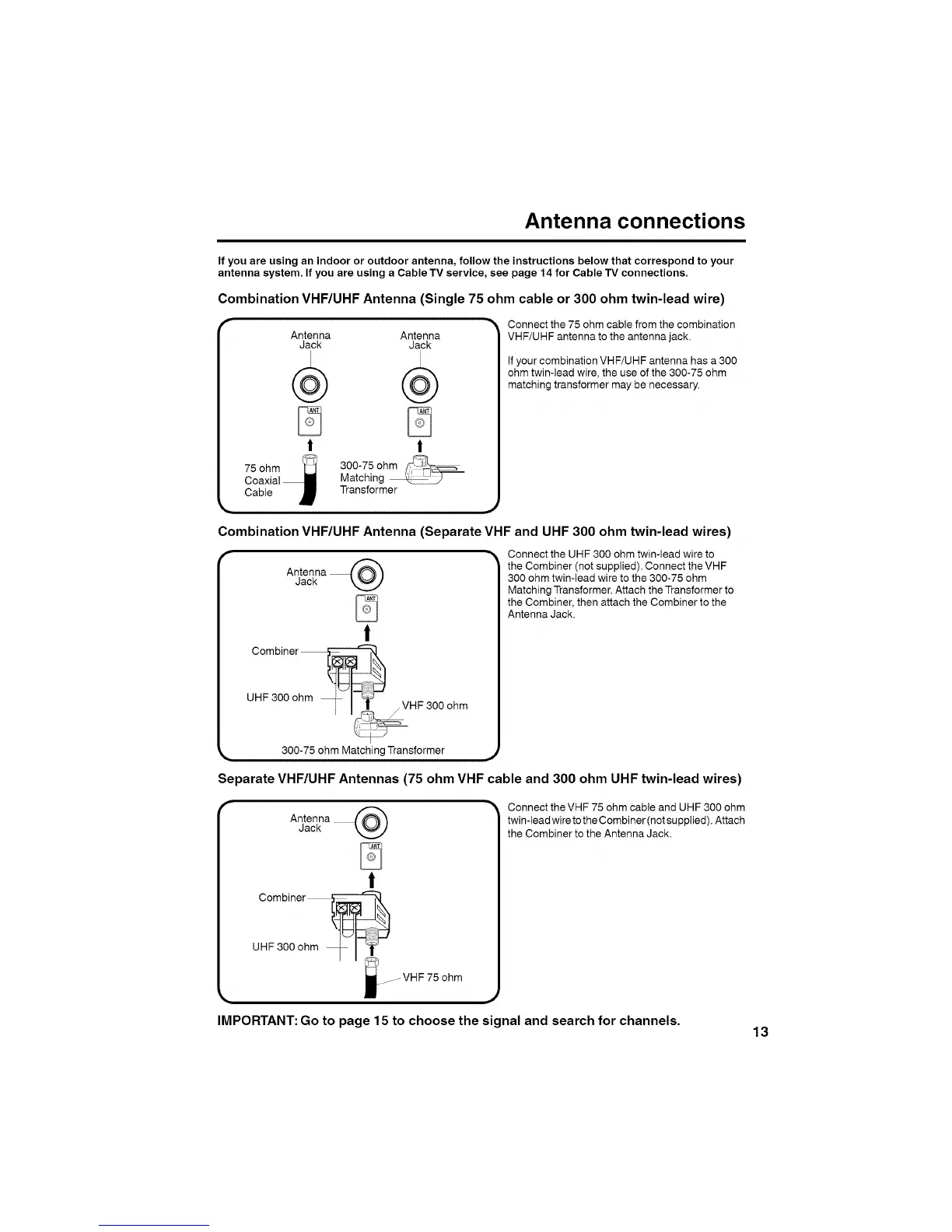

Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your
antenna system. If you are using a Cable TV service, see page 14 for Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna Antenna
Jack Jack
o
! t
750hm 300-750hm
Coaxial _ Matching _
Cable _ Transformer
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Antenna _)Jack
Combiner_
UHF300o I I HF300ohm
300-75 ohm Matching Transformer
Connect the UHF 300 ohm twin-lead wire to
the Combiner (not supplied). Connect the VHF
300 ohm twin-lead wire to the 300-75 ohm
Matching Transformer. Attach the Transformer to
the Combiner, then attach the Combiner to the
Antenna Jack.
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
AntennaJack ..................@
!
Combiner_
UHFS00ohm _ I _r
VHF 75 ohm
-" Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the Combiner (not supplied). Attach
the Combiner to the Antenna Jack.
IMPORTANT:Goto page 15 to choose the signal and search for channels.
13
