Outdoor parking lot lighting

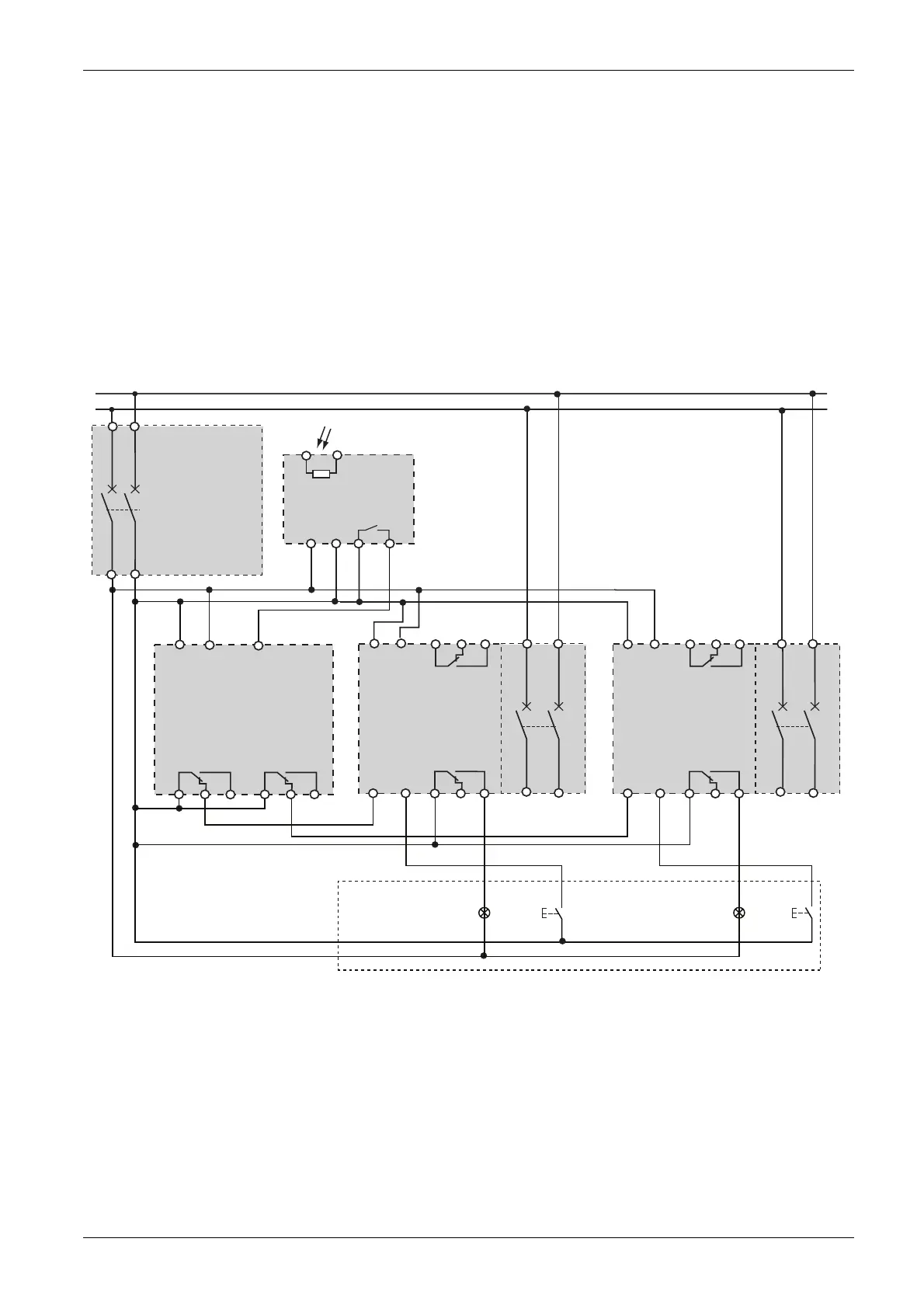

Application example: outdoor parking lot lighting
The aim is to light a parking lot with 2 power levels:
z Automatically according to the time slots when it is used and the external light level
z Manually using pushbuttons
The proposed solution is as follows:
z The 2 banks of lights are controlled by 2 Reflex iC60 circuit breakers without Ti24 interface (A9C5••••)
set to mode 1.
z A multifunction time switch combined with a light sensitive switch sends opening or closing commands
to each circuit breaker via input Y1 according to the time slots corresponding to the periods when the
parking lot is used.
z One pushbutton and one control indicator lamp for each bank of lights is used to override (via input
Y2) switching on/off of the bank.
P
N
Striplight 1
iTL1 iTL2
Monitoring
area
Striplight 2
iPB1
12
iPB2
12
X1X2
X1X2
C2
C1
ITM
1
P
N
iC60
Q1
13
24
IC100
NP
2
34
1
N
11 12 14
21 22 24
O/C
auto/OFF
Y1 Y2
Reflex
iC60
Mode 1
Q2
$&
13
24
PN P
N
11 12 14
21 22 24
O/C
auto/OFF
Y1 Y2
Reflex
iC60
Mode 1
Q3
$&
13
24
PN P
