5.8.25 Starting Real-Time Clock Fixed-Frequency Interrupt

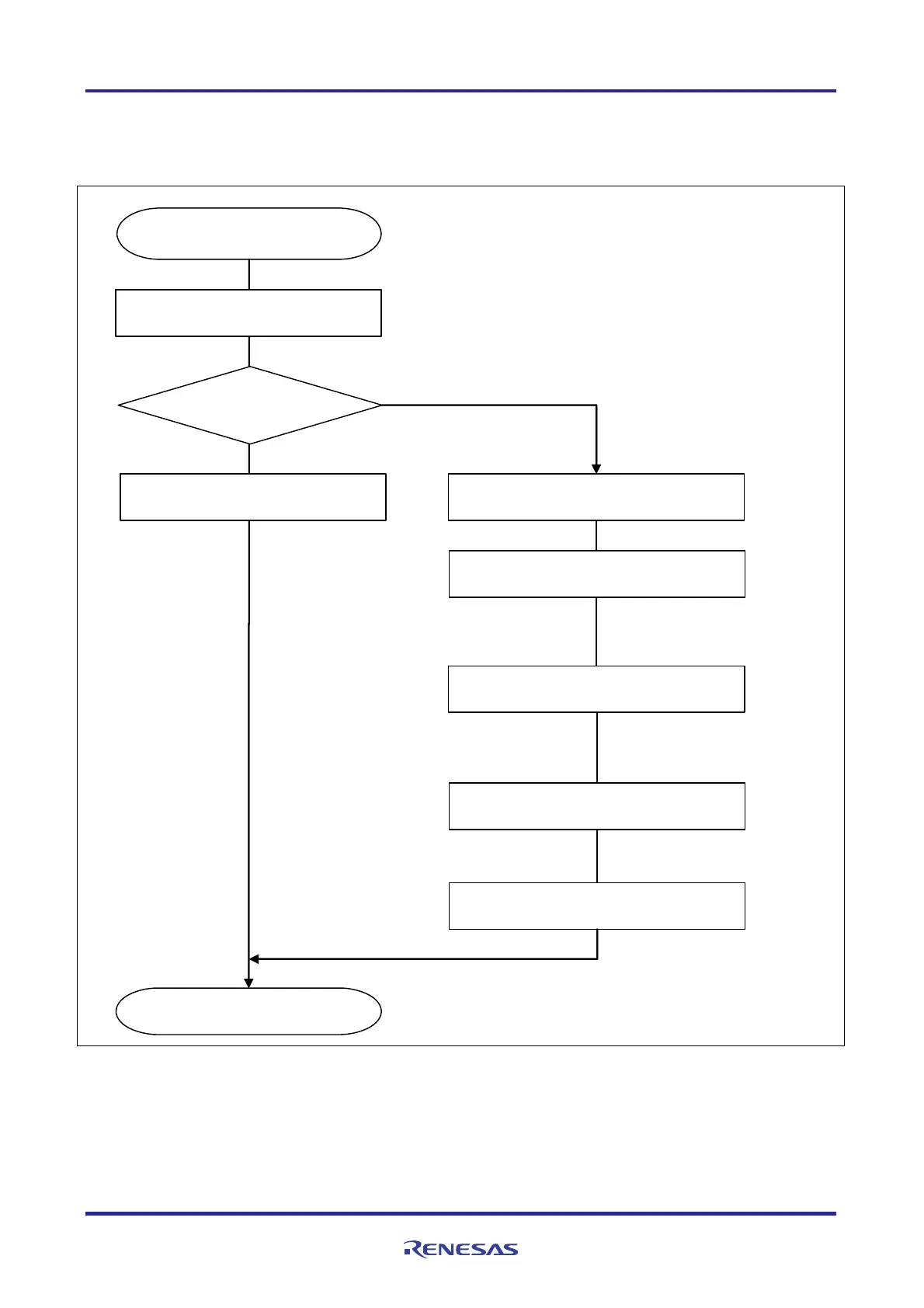

Figure 5.28 shows the flowchart for starting real-time clock fixed-frequency interrupts.
R_RTC_Set_
ConstPeriodInterruptOn
()
return(status)
Set return value to indicate
normality
Return value: status
[Argument]
enum RTCINTPeriod period:
Occurrence frequency of fixed-frequency interrupts
Ye s
No
Argument
abnormal?
Set return value to indicate
abnormality
Disable fixed-frequency interrupts
RTCMK bit  1
Clear fixed-frequency interrupt request
flag
RTCIF bit  0
Set occurrence frequency of
fixed-frequency interrupts
RTCC0 registe
r
CT2 to CT0 bits  peripd
Clear fixed-frequency interrupt status
flag
RTCC1 registe
r
RIFG bit  0
Enable fixed-frequency interrupts
RTCMK bit  0
status: Judgment results indicating that
argument is normal/abnormal
Figure 5.28 Starting Real-Time Clock Fixed-Frequency Interrupt
