Revision 1.1 Page 5 of 21
Warning
Please Note
The specifications of the product detailed on this
Set-Up Guide may change without notice. RDM
Ltd. shall not be liable for errors or for incidental
or consequential damages, directly and indirectly,
in connection with the furnishing, performance or
misuse of this product or document.
Ensure that all power is
switched off before
installing or maintaining
this product
Mercury 2 & Intuitive Mobile Controller User Guide
Intuitive Internal IP Network Card Interface Kit
Intuitive Internal RS485 Network Card Interface Kit
Intuitive Internal Wireless Mesh Network Card Interface Kit

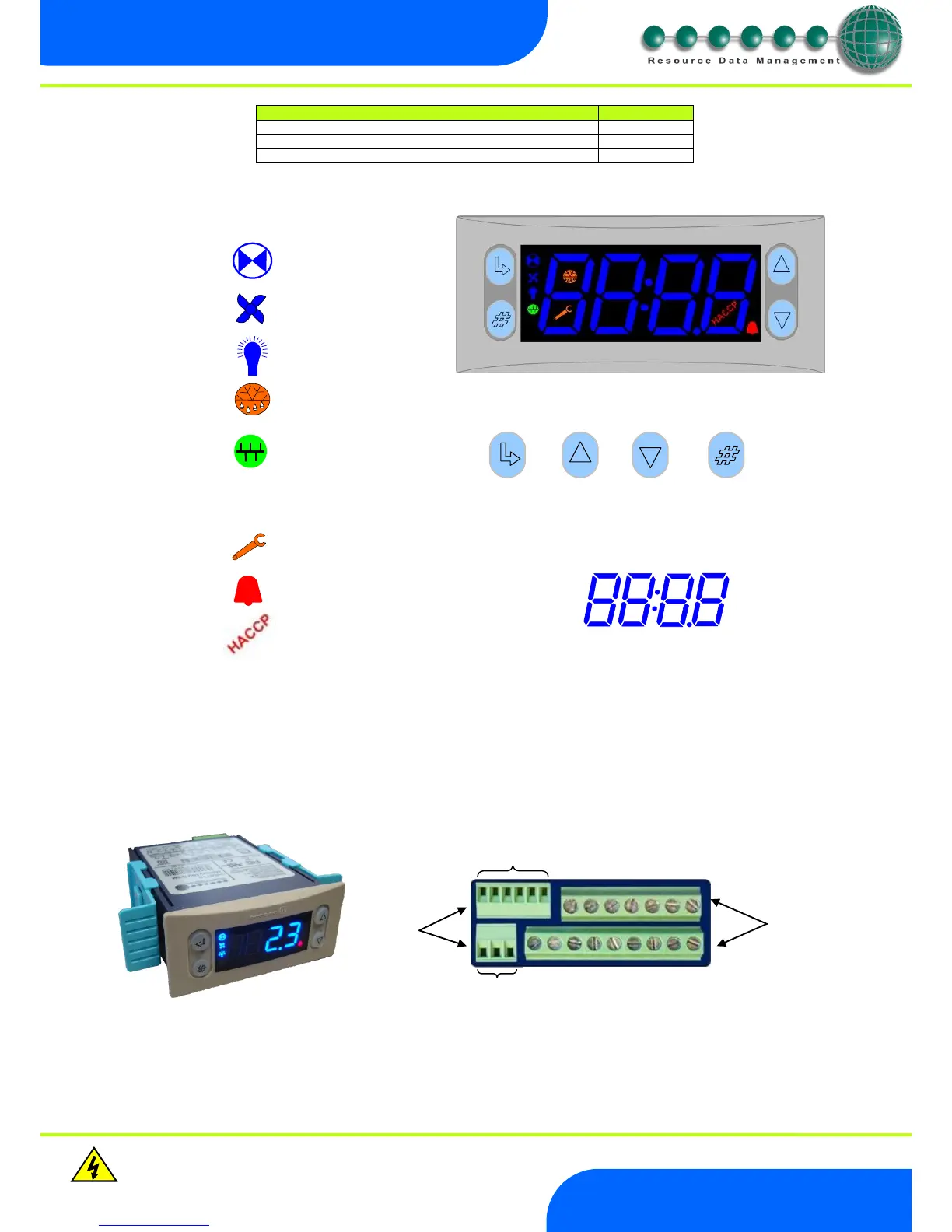

Front Display Features
LED’s: -
Cooling
(Relay 1 or 4)
Fans (Relay 2)
Lights (Relay 3)
Defrost (Relay 5)
Keys
On-Line
Off No network attached
Flashing Attempting to Log on to network
Steady On-line
Service
(See Parameter
18 for setup)
Alarm
Main Display
HACCP
Note the Intuitive Mercury display is Green in colour when lit.
Connections
Mercury Mk2 6-5E and 6-5M
Note: Function keys illuminate when pressed, illumination is turned off 20 seconds
after the key is used. Press and hold the defrost button to force a manual defrost
4 character LED display, used to display temperature and status messages.
Input and Output connections are made to the back of the controller, the RS232 communication port is on the side. The
diagram shows the connection detail.
Air On Probe
Air Off Probe
Comp A Disch.
Comp B Disch.
Defrost Probe
Logging Probe
Not Used
Compressor A Common
Compressor A Out
Not Used
Fans Out
Fans Common
Not Used
Not Used
Light / Alarm Common
Lights/ Alarm Out
Compressor B Out
Compressor B Common
Not Used
Defrost Mains Out
Supply Live
Supply Neutral
Temperature
Probe
Connections
To Next Page
