Revox C270 User Manual

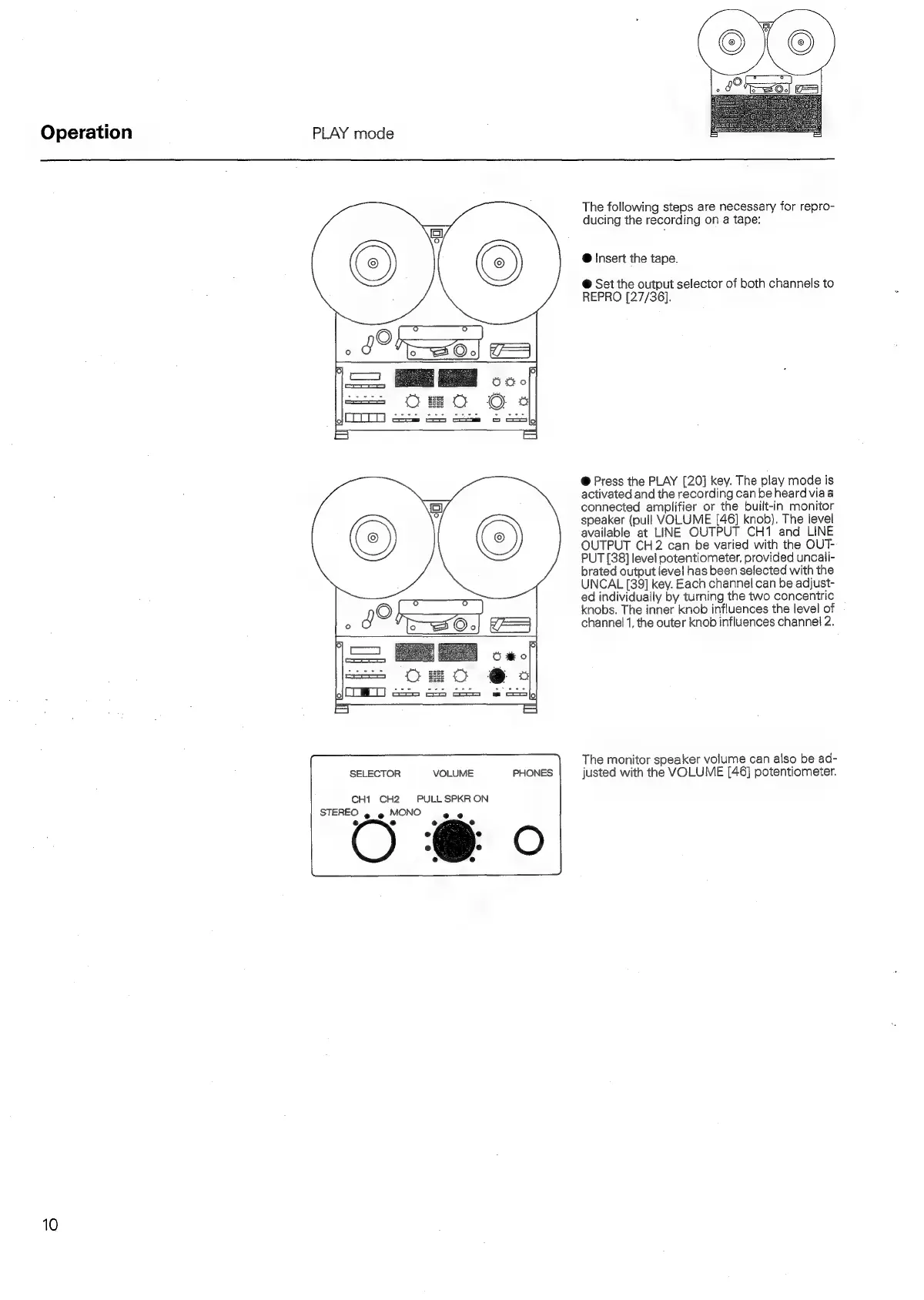

Operation
PLAY mode
10
SELECTOR
CH1 CH2 PULL SPKRON
STEREO » » MONO
VOLUME
PHONES
The following steps are necessary for repro-
ducing the recording on a tape:
@ Insert the tape.
@ Set the output selector of both channels to
REPRO [27/36].
@ Press the PLAY [20] key. The play mode is
activated and the recording can be heard via a
connected amplifier or the built-in monitor
speaker (pull VOLUME [46] knob). The level
available at LINE OUTPUT CH1 and LINE
OUTPUT CH 2 can be varied with the OUT-
PUT [38] level potentiometer, provided uncali-
brated output level has been selected with the
UNCAL [39] key. Each channel can be adjust-
ed individually by turning the two concentric
knobs. The inner knob influences the level of
channel 1, the outer knob influences channel 2.
The monitor speaker volume can also be ad-
justed with the VOLUME [46] potentiometer.
