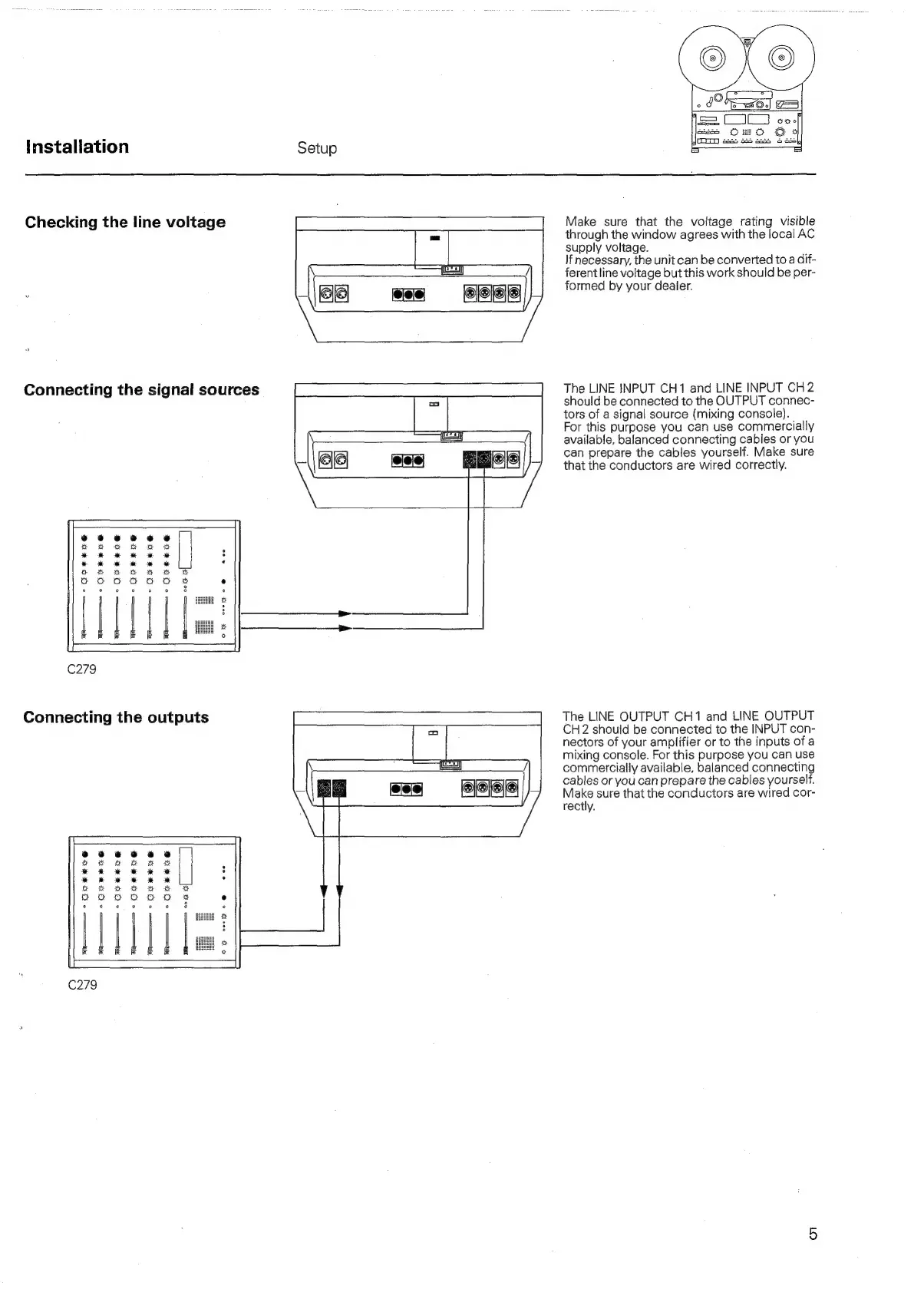

Revox C270 User Manual

Installation Setup
Make sure that the voltage rating visible
through the window agrees with the local AC
supply voltage.
If necessary, the unit can be converted to a dif-
ferent line voltage but this work should be per-
es formed by your dealer.
Checking the line voltage
The LINE INPUT CH1 and LINE INPUT CH2
should be connected to the OUTPUT connec-
tors of a signal source (mixing console).
For this purpose you can use commercially
available, balanced connecting cables or you
can prepare the cables yourself. Make sure
that the conductors are wired correctly.
Connecting the signal sources
WMa=—== 6 OOe eH
We—==——== - OF #¥ oS
M———— - OC &€6@ Wi ° OF ERE WM > OG CECE
C279
The LINE OUTPUT CH1 and LINE OUTPUT
CH 2 should be connected to the INPUT con-
nectors of your amplifier or to the inputs of a
mixing console. For this purpose you can use
commercially available, balanced connecting
cables or you can prepare the cables yourself.
Mig sure that the conductors are wired cor-
rectly.
Connecting the outputs
Ose eo@
°Oseece °OGeene OO eeoe Duets a sce
Ma 00 G ad
oe ied
Wi 0 R= - Oo eece
im
——
mm
m—
——
C279
