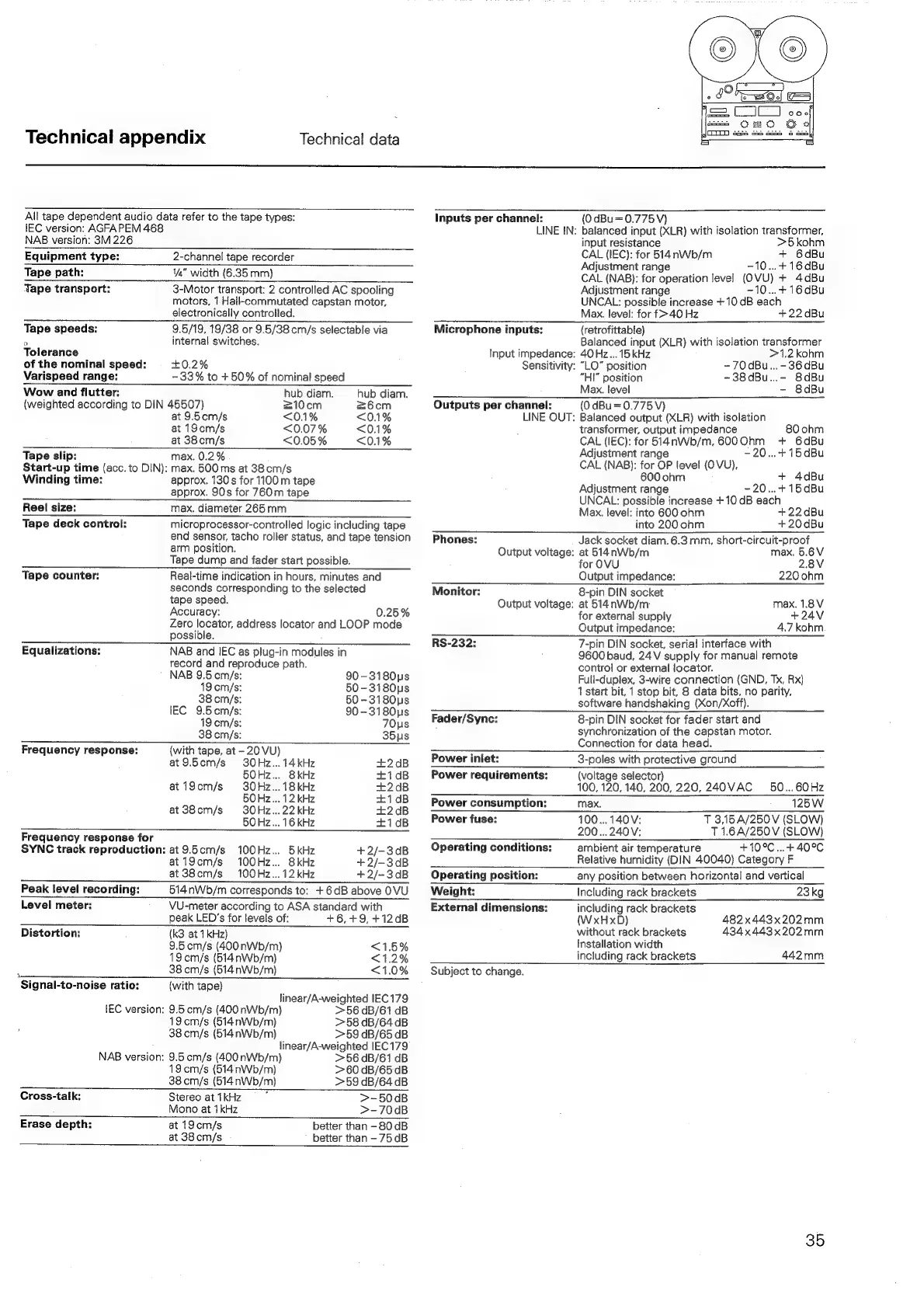

Technical data
All tape dependent audio data refer to the tape types:
IEC version: AGFA PEM 468
NAB version: 3M 226
Equipment ty
Tape path:
pe:
Tape transport:
Tape speeds:
»
Tolerance
2-channel tape recorder
4" width (6.35 mm)
3-Motor transport: 2 controlled AC spooling
motors, 1 Hail-commutated capstan motor,
electronically controlled.
Inputs per channel:
L
(0 dBu=0.775V)
E IN: balanced input (XLR) with isolation transformer,
input resistance >5kohm
CAL (IEC): for 514 nWb/m + 6dBu
Adjustment range -10...4+16dBu
CAL (NAB): for operation level (OVU) + 4dBu
Adjustment range -10...+16dBu
UNCAL: possible increase +10 dB each
Max. level: for f>40 Hz +22 dBu
9.5/19, 19/38 or 9.5/38cm/s selectable via
internal switches.
of the nominal speed: +0.2%
Varispeed range: -33% to +50% of nominal speed
Wow and flutter: hub diam. hub diam.
(weighted according to DIN 45507) 210cm 26cm
at 9.5cm/s <0.1% <0.1%
at 19cm/s <0.07% <0.1%
at 38cm/s <0.05% <0.1%
Tape slip: max. 0.2%
Start-up time (acc. to DIN):
max. 500 ms at 38. cm/s
Winding time: approx. 130s for 1100 m tape
approx. 90s for 760m tape
Reel size: max. diameter 265mm
Tape deck control:
Tape counter:
Equalizations:
Frequency res
ponse:
Frequency res
SYNC track re
ponse for
production:
microprocessor-controlled logic including tape
end sensor, tacho roller status, and tape tension
arm position.
Tape dump and fader start possible.
Real-time indication in hours, minutes and
seconds corresponding to the selected
tape speed.
Accuracy: 0.25%
Zero locator, address locator and LOOP mode
possible. :
NAB and IEC as plug-in modules in
record and reproduce path.
NAB 9.5 cm/s: 90 -3180us
19.cm/s: 50-3180yus
38 cm/s: 50-3180us
IEC 9.5cm/s: 90-3180us
19.cm/s: 70us
38 cm/s: 35us
{with tape, at - 20 VU)
at9.5cem/s 30Hz...14kHz +2dB
50Hz... 8kHz +1dB
at19cm/s 30Hz...18kHz +2dB
50Hz...12 kHz +1dB
at 38cm/s 30Hz...22 kHz +2dB
5OHz... 16 kHz +1dB
at9.5cm/s 100Hz... 5kHz +2/-3dB
at19cm/s 100Hz... 8kHz +2/-3dB
at 38cm/s 100Hz...12 kHz +2/-3dB
Peak level rec
ording:
Microphone inputs:
Input impedance:
Sensitivity:
Outputs per channel:
LINE OUT:
(retrofittable)
Balanced input (XLR) with isolation transformer
40 Hz...15 kHz >1.2 kohm
“LO” position -70dBu...-36dBu
“HI” position -38dBu..- 8dBu
Max. level - 8dBu
(0 dBu=0.775V)
Balanced output (XLR) with isolation
transformer, output impedance 80 ohm
CAL (IEC): for 514nWb/m, 6000hm + 6dBu
Adjustment range -20...+15dBu
CAL (NAB): for OP level (O VU),
600 ohm + 4dBu
Adjustment range -20...+15dBu
UNCAL: possible increase +10 dB each
Max. level: into 600 ohm +22 dBu
into 200 ohm +20dBu
Phones: Jack socket diam. 6.3 mm, short-circuit-proof
Output voltage: at 514nWb/m max. 5.6V
for OVU 2.8V
Output impedance: 220 ohm
Monitor: 8-pin DIN socket
Output voltage: at 514nWb/m max. 1.8V
for external supply +24V
Output impedance: 4.7 kohm
RS-232: 7-pin DIN socket, serial interface with
9600 baud, 24V supply for manual remote
control or external locator.
Full-duplex, 3-wire connection (GND, Tx, Rx)
1 start bit, 1 stop bit, 8 data bits, no parity,
software handshaking (Xon/Xoff).
Fader/Syne: 8-pin DIN socket for fader start and
Power inlet:
synchronization of the capstan motor.
Connection for data head.
3-poles with protective ground
Power requirements:
(voltage selector)
Power fuse:
100, 120, 140, 200,220, 240VAC 50... 60 Hz
Power consumption: max. 125W
100...140V: T 3,15 A/250V (SLOW)
200...240V: T 1.6A/250V (SLOW)
Operating conditions:
ambient air temperature +10°C ...+ 40°C
Relative humidity (DIN 40040) Category F
Operating position:
514nWb/m corresponds to: +6dB above OVU
Level meter:
VU-meter according to ASA standard with
peak LED’s for levels of: +6,+9,+12dB
Distortion: (k3 at 1kHz)
9.5 cm/s (400 nWb/m) <1.5%
19.cm/s (514nWb/m) <1.2%
38 cm/s (514 nWb/m) <1.0%
he
Signal-to-nois
e ratio: (with tape}
linear/A-weighted IEC 179
IEC version: 9.5 cm/s (400 nWb/m) >56 dB/61 dB
19cm/s (514nWb/m) >58 dB/64 dB
38cm/s (514nWb/m) >59 dB/65 dB
linear/A-weighted IEC179
NAB version: 9.5 cm/s (400 nWb/m) >56 dB/61 dB
19cm/s (514nWb/m)} >60 dB/65:dB
38 cm/s (514 nWb/m) >59 dB/64dB
Cross-talk: Stereo at 1kHz >-50dB
Mono at 1kHz >-70dB
Erase depth:
better than -80dB
better than -75dB
at 19cm/s
at 38cm/s
Weight:
any position between horizontal and vertical
Including rack brackets 23 kg
External dimensions: including rack brackets
(WxHxD) 482x443 x202mm
without rack brackets 434x443 x202mm
Installation width
including rack brackets 442mm
Subject to change.
